Specifications
Brand Name :
SINOHONE
Certification :
CPR FCC CE RoHS ISO9001
Place of Origin :
Sichuan, China
MOQ :
2000 meters
Price :
USD $0.38~$0.58 / meter
Payment Terms :
L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability :
500000 meters per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box or according to customers' requirements
Model Number :
Simplex Cable
Product Name :
Simplex Fiber Optic Cable
Strength Member :
Aramid Yarns
Sheath :
Flame-resistant
Technology :
Cold Meet
Application :
Fiber Optic Jumper or Pigtail
Install Temperature :
-5℃~+50℃
Description

Indoor Fiber Optic Cable Digital Distribution Simplex cable Aramid Yarms

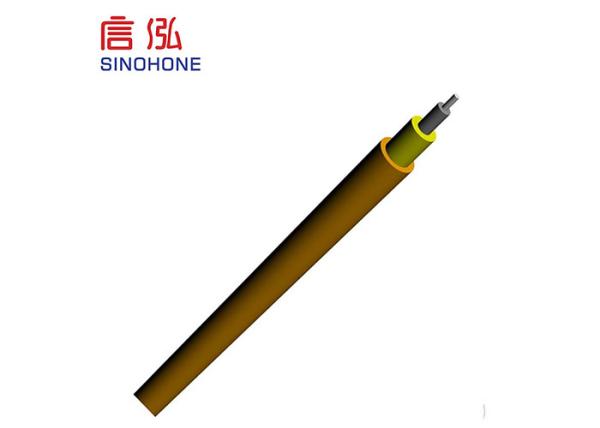

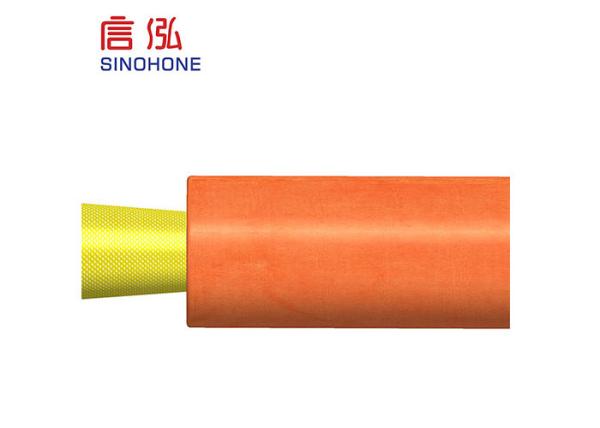

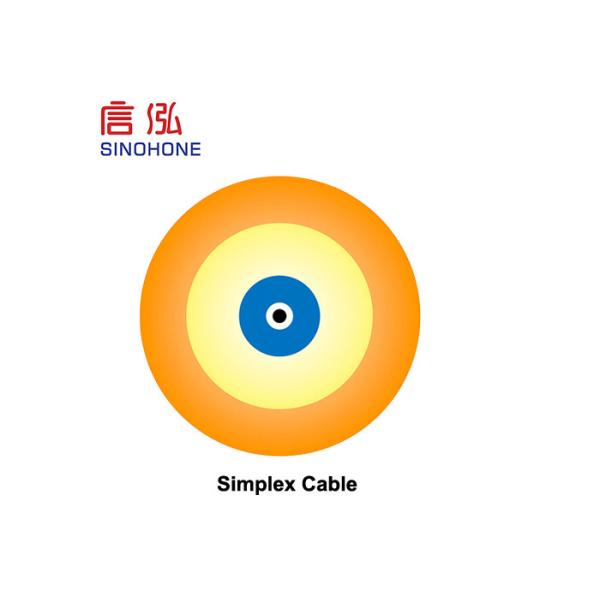

Sinohone indoor fiber optical cable is made by evenly applying strands of Aramid yarns as the strength member over tight buffer fibers and then is completed with a flame-retardant sheath.

Characteristics

Cable diameter small,lighter,Bending performance is good,easy to stripping,Low construction cost;
By cold meet technology,Speed, flexibility and quick;
Field wiring can separate wear tube,also can directly fixed cable camp on the wall;
Cable has very high resistance to tension and compression flat force,the Self supporting aerial cable can be capable of the span less than 50m;
Sheath anti-burns the environmental protection material,Fully meet the cable in indoor use of flame retardant performance when the requirements

Application

  1. Optical fiber jumper or pigtail
  2. Indoor riser level and pleum level cable distribution
  3. Interconnect between instruments, communication equipment
  4. Transport/storage/operating temperature: -20℃~+60

Installation temperature: -5℃~+50℃

Specifications
Cable Diameter(mm) TBF Diameter(μm) Tensile Strength Crush Resistance long/short term(N/100mm) Bending Radius
Long/short term(N) dynamic/static(mm)
1.6 600±50 100/500 50/30
1.8 900±50 60/100 100/500 50/30
2.8 900±50 60/100 100/500 50/30
Optical Paremeters
50/125 μm 62.5/ 125 μm G.652 G.655
@ 850nm ≤ 3.5dB/km ≤ 3.5dB/km
@ 1300 nm ≤ 1.5 dB/km ≤ 1.5 dB/km
Attenuation(+20℃) @ 1310 nm ≤0.50 dB/km ≤0.50 dB/km
@ 1550 nm ≤0.40 dB/km ≤0.40 dB/km
@850nm ≥500MHz.km ≥200MHz.km
Bandwidth(
Class A) @1300nm ≥1000MHz.km ≥600MHz.km
Numerial Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤ 1260nm ≤ 1450nm
Attenuation @ 1300nm ≤ 0.25dB/km ≤ 0.25dB/km
at temperature cyclingΔα(-20℃~+60℃) @ 1550nm ≤ 0.10dB/km ≤ 0.15dB/km

Digital Distribution Simplex Fiber Optic Cable , Aramid Yarn Fiber Optic CableDigital Distribution Simplex Fiber Optic Cable , Aramid Yarn Fiber Optic Cable
