Specifications
Brand Name :
SINOHONE
Model Number :
OPTO Electric Composite Cable
Certification :
CPR FCC CE RoHS ISO9001
Place of Origin :
Sichuan, China
MOQ :
2000 meters
Price :
USD $0.38~$0.58 / meter
Payment Terms :
L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability :
500000 meters per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box or according to customers' requirements
Product Name :
OPTO Electric Composite Cable
Standards :
YD / 2159-2010
Structure :
Tight and light weight
Tensile :
Aramid yarn
Application :
Jumper cable for connection
Fiber Count :
4F+5C
Sheath Material :
LSZH / PVC or as per requirements
Description

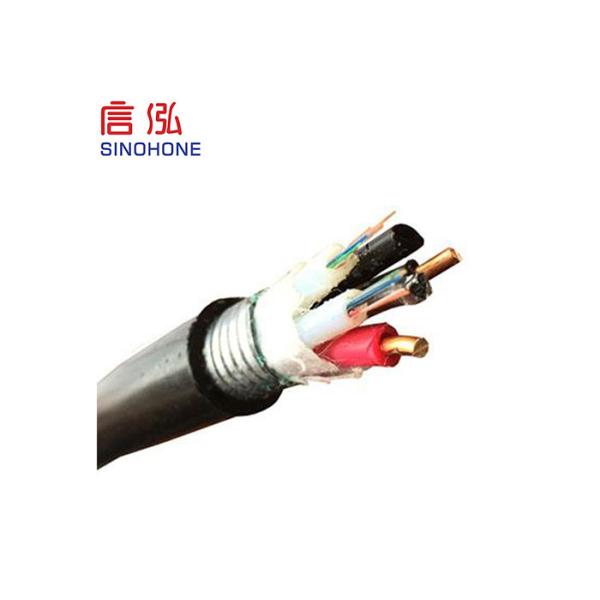

OPTO Electric Composite Overhead Wire Cable Hybrid Fiber Power Cable


Characteristics:

  • Small outer diameter, tight structure and lightweight.
  • Aramid yarn ensures excellent performance of tensile;
  • Soft and flexible, good bending performance;
  • Convenient to construction and maintenance.


Applications

  • Used as jumper cable for equipment connection.


Standards:

  • YD/T 2159-2010


Temperature:

  • Storage, transportation and Operating temperature: -20°C~+60°C
  • Installation temperature: -5°C~+50°C

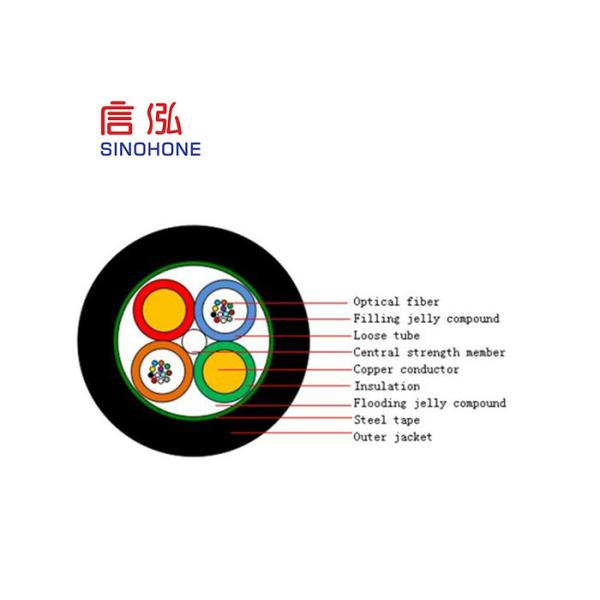

Structural Parameters

Fiber Count

Conductor Structure

Tight buffer diameter(mm)

Nominal diameter (mm)

Nominal weight (kg/km)

Permitted Tensile(N)

Permitted Crush(N)

Bending Radius(mm)

Long term

Short term

Long term

Short term

Static

Dynamic

4F+5C

0.12mm*7

0.6

4.3

17

100

200

200

400

10D

20D

4F+5C

0.12mm*7

0.9

5.3

21

100

200

200

400

10D

20D



Note:

  • The structural dimensions and materials used can be designed according to the demands of the customers.
  • Outer sheath material can be LSZH or environmental PVC according to the demands of the customers.
