Specifications
Brand Name :
SINOHONE
Model Number :
Water Proof Indoor Cable
Certification :
CPR FCC CE RoHS ISO9001
Place of Origin :
Sichuan, China
MOQ :
2000 meters
Price :
USD $0.38~$0.58 / meter
Payment Terms :
L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability :
500000 meters per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box or according to customers' requirements
Product Name :
Water proof cable
Standards :
YD/T1258.4
Operating Temperature :
-20℃ ~+60℃
Applications :
Interconnect pigtail cable
Fiber Count :
4, 6, 8
OEM / ODM :
Customize Available
Outer Sheath Material :
PE
Description


GYBJA Water-proof cable Indoor Fiber Optic Cable Interconnect Pigtail Cable


Characteristics:

  1. High strength aramid yarn ensure that fiber transmission properties remain stable long term;
  2. Small outer diameter, lightweight, easy to strip.
  3. Excellent lateral waterproof performance;
  4. Good mechanical, environment and flame retardant performance;
  5. Convenient to construction and maintenance;
  6. Each Sub-cable unit contain individual strength member;


Applications:

  1. Interconnect pigtail for equipment;
  2. Interconnect pigtail cable for equipment within different floors.



Standards:

  1. YD/T1258.4



Temperature:

  1. Storage, transportation and operating temperature: -20℃ ~+60℃
  2. Installation temperatute: -5℃ ~+50℃

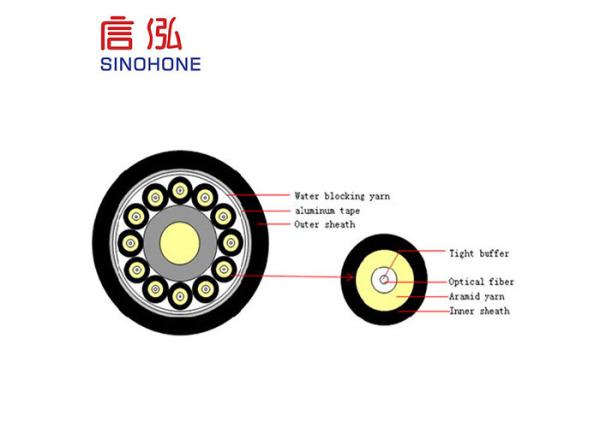

Structural Parameters

Fiber CountStructureNominal diameter (mm)Nominal weight (kg/km)Permitted Tensile(N)Permitted Crush(N)Bending Radius(mm)
Long termShort termLong termShort termStaticDynamic
41+4-2.09.569400800300100010D20D
61+6-2.010.51015001100300100010D20D
81+8-2.011.210610002000300100010D20D
41+4-3.011.2976001300300100010D20D
61+6-3.013.012710002000300100010D20D
81+8-3.014.817211002200300100010D20D


Note:

  1. The structural dimensions and materials used can be designed according to the demands of the customers.
  2. Outer sheath material is PE in general, we can choose anti-rodent and flame resistance material for customers.
