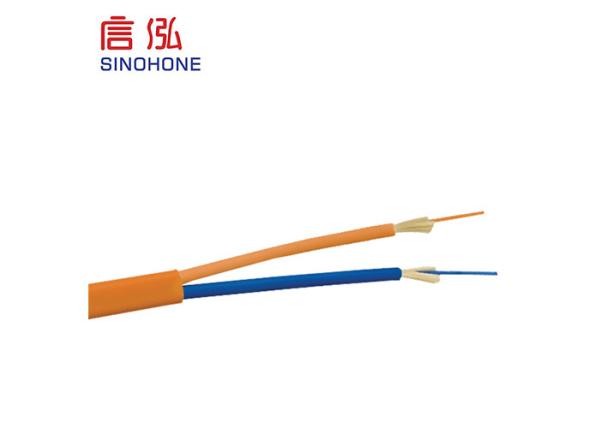

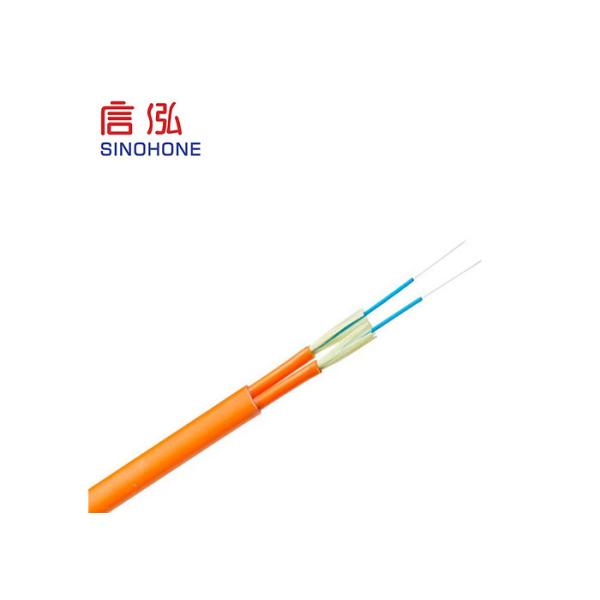

Tight Multimode Duplex Fiber Optic Cable , Flat Fiber Optic Cable Aramid Yarn
Tight Multimode Duplex Fiber Optic Cable , Flat Fiber Optic Cable Aramid Yarn
Tight Multimode Duplex Fiber Optic Cable , Flat Fiber Optic Cable Aramid Yarn
Tight Multimode Duplex Fiber Optic Cable , Flat Fiber Optic Cable Aramid Yarn
Tight Multimode Duplex Fiber Optic Cable , Flat Fiber Optic Cable Aramid Yarn
Tight Multimode Duplex Fiber Optic Cable , Flat Fiber Optic Cable Aramid Yarn
Tight Multimode Duplex Fiber Optic Cable , Flat Fiber Optic Cable Aramid Yarn
Tight Multimode Duplex Fiber Optic Cable , Flat Fiber Optic Cable Aramid Yarn
Specifications
Brand Name :
SINOHONE
Model Number :
Duplex Flat Indoor Cable
Certification :
CPR FCC CE RoHS ISO9001
Place of Origin :
Sichuan, China
MOQ :
2000 meters
Price :
USD $0.38~$0.58 / meter
Payment Terms :
L/C, D/P, T/T, D/A, Western Union, MoneyGram, D/P
Supply Ability :
500000 meters per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box or according to customers' requirements
Product Name :
Duplex Flat Indoor Cable
Standard :
YD/T1258.3 IEC60794-2-10/11
Fiber :
Tight buffer fiber
Strength Member :
Aramid yarn
Operating Temperature :
-40°C~+60°C
Application :
Access network, FTTH
Description

Access Network Duplex Flat Indoor Fiber Optic Cable Armid Armored Multi-mode Cable

Characteristics:

Tight buffer fiber, be striped easily and excellent flame retardant;
Aramid yarn makes the optical fiber cable have excellent performance of flame and tensile strength resistance;
Easy installation. Separated easily and used as single unit;
Material of outer sheath shall be corrosion resistant, water-blocking and flame retardant and environment friendly etc.
Not be influenced by electromagnetism due to all dielectric structural design.

Applications:

  • Access network,
  • Fiber to the Home(FTTH)

Standards:

YD/T1258.3
IEC60794-2-10/11

Temperature:Operating temperature: -40°C~+60°C
Storage, transportation and installation temperature: -5°C~+50°C

Technical Parameters

Nominal diameter (mm) Unit Diameter (mm) Nominal weight (kg/km) Permitted Tensile(N) Permitted Crush(N) Bending Radius(mm)
Long term Short term Long term Short term Static Dynamic
3.0*5.0 2 19 150 300 100 500 10D 20D
4.0*7.0 2.8 31 200 400 100 500 10D 20D
4.4*7.4 3 37 200 400 100 500 10D 20D

Note: The structural dimensions and materials used can be designed according to the demands of the customers.
