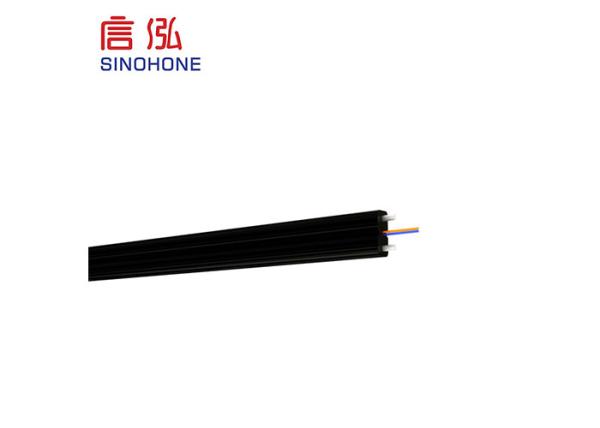

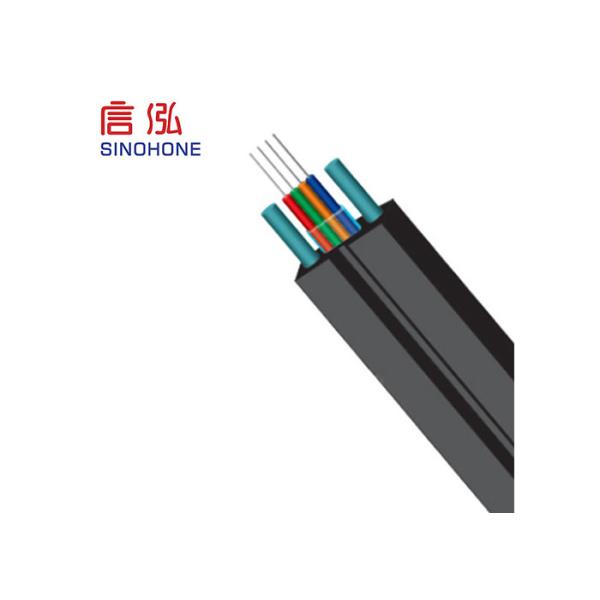

Environment Friendly Fiber Drop Cable , Fiber Breakout Cable Simple Structure
Environment Friendly Fiber Drop Cable , Fiber Breakout Cable Simple Structure
Environment Friendly Fiber Drop Cable , Fiber Breakout Cable Simple Structure
Environment Friendly Fiber Drop Cable , Fiber Breakout Cable Simple Structure
Environment Friendly Fiber Drop Cable , Fiber Breakout Cable Simple Structure
Environment Friendly Fiber Drop Cable , Fiber Breakout Cable Simple Structure
Specifications
Brand Name :
SINOHONE
Model Number :
Bow-type Ribbon non-self-supporting drop cable
Certification :
CPR FCC CE RoHS ISO9001
Place of Origin :
Sichuan, China
MOQ :
2000 meters
Price :
USD $0.38~$0.58 / meter
Payment Terms :
L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability :
500000 meters per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box or according to customers' requirements
Product Name :
Bow-type Ribbon Non Self-supporting Drop Cable
Length :
2 KM or required
Strength Member :
Metallic or Non Metallic
Applications :
Internet, CATV network
Fibers :
4
OEM / ODM :
Available
Description

Distribution Indoor Fiber Optic Cable Bow-Type Ribbon Non-Self-Supporting Drop Cable

Description:

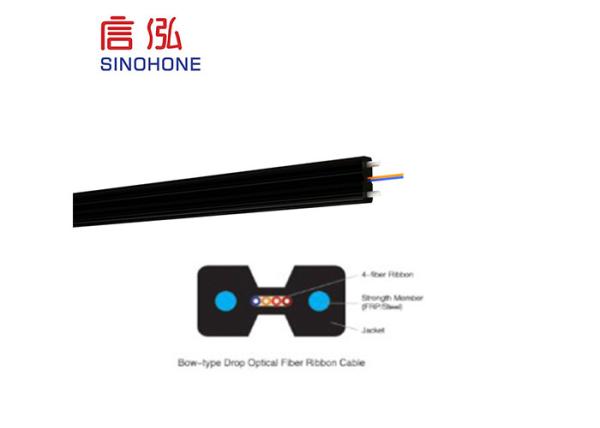

  • Sinohone self-supporting bow-type fiber cable consists of optical communication unit, strength member, single steel wire and outer sheath.
  • Its optical communication unit includes fibers or tight buffer fibers.
  • Strength member can be metallic or Non-metallic according to customers’ demand.


Features:

This kind of drop cable has simple structure, lighter and excellent practicability, use Low smoke zero halogen sheath environment friendly material. Unique gouge design, strip and splic easily,simplify installation and maintenance. Two parallel strength members ensure good performance of crush and tensile strength. Special low sensitivity of bending fiber provides higher bandwidth and realizes the integration of Internet work, CATV network and telephone network. Single steel wire as the additional strength member ensures good performance of tensile strength.


Specifications:

Cable Count

Cable Dimension

(mm)

Cable Weight

(kg/km)

Tensile

(N)

Crush

(N/100mm)

Min. Bend Radius

(mm)

Range of Temperature

(℃)
Long Term Short Term Long Term Short Term Dynamic Static
1~2 5.2×2.0 18 300 600 1000 2200 60 30 -20~+60
Note:
  1. The cable core use the colored coating fiber of 250μm;
  2. H is height of the flat cable;
  3. The minimum bend radius (static) is 5H when G657 fiber is used.


Characteristics:

  • Fiber Type: G652, G655 or G657 single-mode fiber, A1a or A1b multi-mode cable, or other types of fiber;
  • Material of jacket: Flame-retardant polyvinyl chloride (PVC), low smoke zero halogen flame retardant polyolefin (LSZH), environmental halogen flame retardant polyolefin (ZRPO), environmental thermoplastic polyurethane (TPU) or other material;
  • Delivery Length: 1km or 2km, or as required;

Environment Friendly Fiber Drop Cable , Fiber Breakout Cable Simple StructureEnvironment Friendly Fiber Drop Cable , Fiber Breakout Cable Simple Structure
