CAT5E UTP External Steel Wired Armoured Bulk Network Cable 4 Pairs 8 Pairs
CAT5E UTP External Steel Wired Armoured Bulk Network Cable 4 Pairs 8 Pairs
Specifications
Brand Name :
SINOHONE
Model Number :
HSYV32-CAT5E
Certification :
ISO9001 CPR FCC CE RoHS
Place of Origin :
Sichuan, China
MOQ :
2000 meters
Price :
USD $0.38~$0.58 / meter
Payment Terms :
L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability :
500000 meters per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box or according to customers' requirements
Product Name :
SWA Cat5E Cable
Cable Type :
UTP
Wire Gauge :
24 AWG
Application :
External
Conductor Material :
Copper conductor
Sheath :
PVC
Steel wire armored :
Galvanized steel wire
Insulation :
HDPE
Description

CAT5E UTP External Steel Wired Armoured Cable 4 Pairs 8 Pairs Bulk Network Cable

Product Detail

A standard Cat5e UTP Ethernet data cable on the inside of the jacket, the Cat5e SWA armoured data cable has the added avantage that it has a steel wire armour (SWA) and a superior external grade thick PE jacket which makes it suitable for all external applications as well as being tough enough to pull through ducts, directly burying in the ground or any vandal plagued insulation, it also protects against moisture and UV stable.

Armored 8 pair high performance cable that consists of twisted pairs, used mainly for data transmission. Category 5E cables support a frequency range of up to 100MHz and designed for transmission speeds of up to 1 gigabit per second (Gigabit Ethernet). For installations where fire, smoke emissions and toxic fumes create a petential risk to life and equipment.

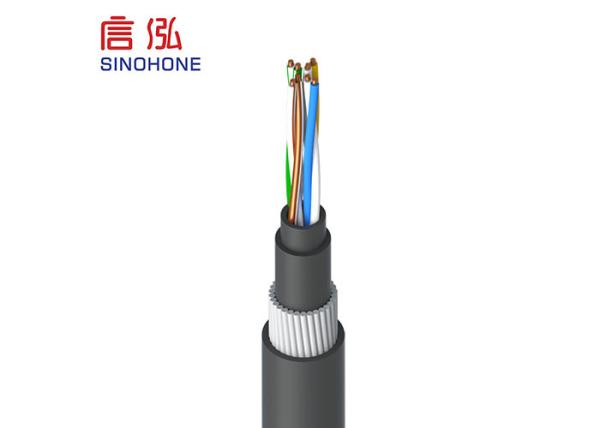

Cable Constructure

  • Galvanized steel wire
  • Solid copper conductor
  • Insulation
  • Ripcord
  • Inner jacket
  • Outter jacket

Specifications

  • 4pair 8 pair solid copper conductor
  • 24AWG
  • HDPE (High Density Polyethylene) Insulation
  • PVC Jackets
  • Solid Copper
  • SWA (Galvanized Steel Wire Armor) Armour
  • High Quality

UTP or FTP Armoured CAT5E Cable

There are 2 options of armoured Cat5E data cable. You have the more popular UTP version or the FTP cable.

UTP (Unshielded Twisted Pair) is what your Cat5E Ethernet cable at home will be. The FTP cable has a foil twisted around the four pairs of Ethernet cable.

FTP is usually deployed in environments where there is lots of noise and vibration. For example running a armoured Cat5E next to loud machiner in warehouse.

Item Detail
Conductor Copper conductor
Insulation Layer HDPE
Inner Jacket PVC
Outter Jacket PVC
Steel Wire Armoured Galvanized steel wire
Conductor Nominal Diameter 0.515±0.01 mm
Insulation Thickness 0.25±0.01 mm
Thickness of Inner Jacket 0.95±0.05 mm
Galvanized Steel Wire 0.9mm
Thickness of Outer Jacket 1.4±0.05 mm
Cable Diameter 12.2±0.5 mm
Weight 292kg/km

CAT5E UTP External Steel Wired Armoured Bulk Network Cable 4 Pairs 8 PairsCAT5E UTP External Steel Wired Armoured Bulk Network Cable 4 Pairs 8 Pairs
