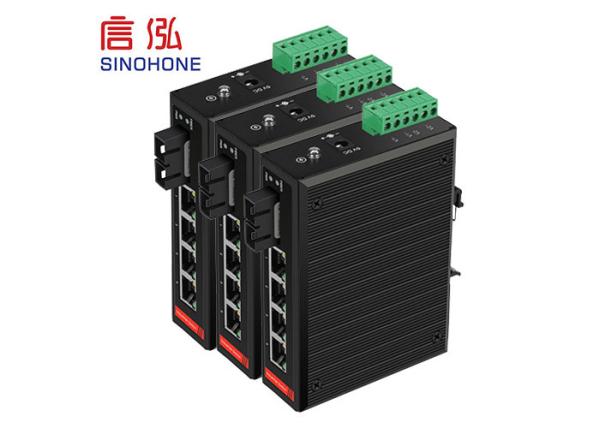

5 Port 4 PoE LAN Port Multimode Fiber Optic Switch
5 Port 4 PoE LAN Port Multimode Fiber Optic Switch
5 Port 4 PoE LAN Port Multimode Fiber Optic Switch
5 Port 4 PoE LAN Port Multimode Fiber Optic Switch
Specifications
Brand Name :
SINOHONE
Model Number :
HY-514GPI / HY-514PI / HY-514I
Certification :
RoHS / UL / CE / CPR / ISO9001
Place of Origin :
Sichuan, China
MOQ :
1
Price :
USD $9.99~$54.59 / meter
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/A
Supply Ability :
100 pieces per week
Delivery Time :
5-8 work days
Packaging Details :
Safely packed in separated box with foam protection
Product Name :
Fiber Optic Switch
Environment :
Industrial
Manage :
Non-managed
Installation :
Sliding Fixed / Wall Fixed
Transmission Rate :
10/100M or 10/100/1000M
PoE Port :
4
Description

Single Mode Multimode 5 Port Fiber Optic Switch with 4 PoE LAN Port

Description

HY-514 series is equiped with 1 fiber optic SC interface, which has option of single mode, multimode, distance and wavelength. Other 4 LAN ports supports PoE choice for security and camera applications. 10/100M or 10/100/1000M transmission rate are also available for choose.

Sinohone Industrial Grade Network Switches are equiped with industrial integrated circuit, chip and other hardware configuration. Besides, its power supply is designed to be low-consumption and using DC 12-48V (48-57V for PoE) power supply. Compared to 220V AC power supply in normal fiber optic switches, DC power supply is more secure and stable.

Characteristics

  1. It can effectively withstand static electricity, lightning and other interference
  2. It’s also impact resistance and vibration resistance
  3. MTBF 500,000 hours
  4. operating environment in the -45℃~80℃
  5. Dual power redundancy

Specifications

Model HY-514I / PI / GI / GPI
Number of interfaces

1 SC

4 LAN
POE power supply Optional
Operating temperature -45 to 80 °C
Input voltage 12 ~ 48VDC (48-57VDC for PoE)
Protection level IP40
shell Corrugated aluminium alloy housing without fan
Operating temperature -40 to 80 °C
storage temperature -40 to 85 ° C
Working humidity 5 to 95% (no solidification)

5 Port 4 PoE LAN Port Multimode Fiber Optic Switch5 Port 4 PoE LAN Port Multimode Fiber Optic Switch
