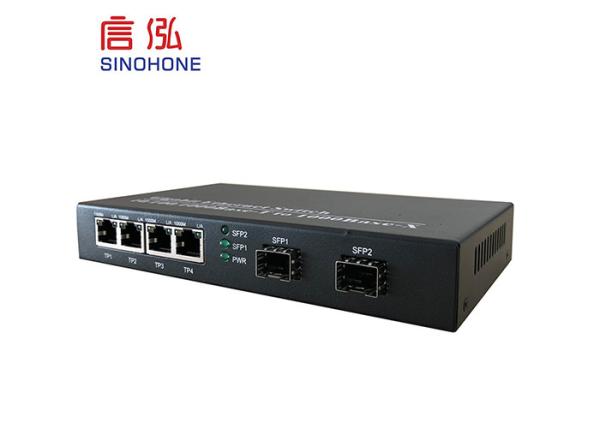

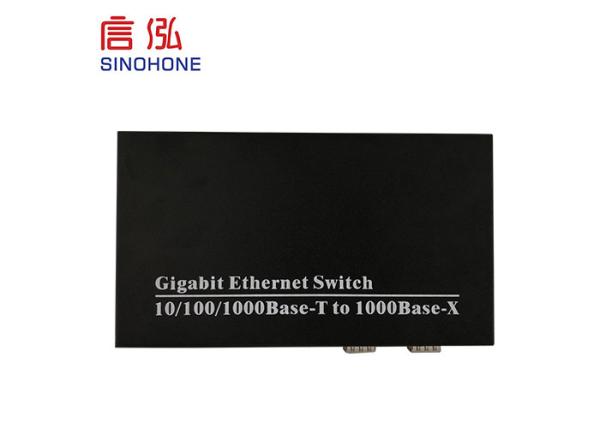

Gigabit Ethernet Fiber Optic Network Switch 10/100/1000M 4 RJ45 And 2 SFP
Gigabit Ethernet Fiber Optic Network Switch 10/100/1000M 4 RJ45 And 2 SFP
Gigabit Ethernet Fiber Optic Network Switch 10/100/1000M 4 RJ45 And 2 SFP
Gigabit Ethernet Fiber Optic Network Switch 10/100/1000M 4 RJ45 And 2 SFP
Specifications
Brand Name :
SINOHONE
Model Number :
HY-524G
Certification :
CE RoHS CPR FCC ISO9001
Place of Origin :
Sichuan, China
MOQ :
1 piece
Price :
USD 200-250/piece
Payment Terms :
L/C, T/T, MoneyGram, Western Union
Supply Ability :
50000 pieces per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box or according to customers' requirements
Model :
HY-524G
10/100/1000 Mbps RJ45 :
4 ports
1000 Mbps SFP :
2 ports
Grade :
Commercial
Dimension :
25×180×100 mm (H×W×D)
Operating Temperature :
0°C ~ +50°C
Description

Gigabit Ethernet Fiber Optic Network Switch 10/100/1000M 4 RJ45 and 2 SFP

Ethernet Switches

IEE802.3z/AB 1000Mbps 6 port Gigabit Ethernet Switch supports two types media for network connection and switching such as 10/100/1000Base-T and 1000Base-SX/LX．The switch is designed with a switch controller and buffer memory that connects two types segments to operate smoothly．The Switch with segments to operate smoothly．The Switch with 4 RJ45 ports 10/100/1000Base-T and 2 SC ports 1000Base-SX/LX．All the 10/100/1000 Mbps RJ45 port support Half or Full Duplex modes．All SC port support only 1000Mbps and Full-Duplex modes．With external power unit．It provides good stability and reliability．

Specification

The Three Port Gigabit Ethernet Switch conforms to the following standards:

  • Standards:IEEE802.3z/AB 10/100/1000Base-t1000Base-SX/LX/ZX
  • UTP Cable : Cat.5e or Cat.6cable up to 100m.
  • Fiber Cable:

1000SX: 50/125, 62.5/125μm multi-mode

1000LX: 8/125,9/125μm single-mode.

  • Data Transfer Rate:

RJ45 port: 10M,100M,1000Mbps

SC interface: 1000Mbps speed.

  • LED Indicators: TP1000,

TPLink/Act, FX,PWR

  • Duplex Modes: RJ45 port: Full/Half Duplex auto-negotiation

Fiber: full-duplex mode

  • Power Requirement: 220V(80-265V)AC, 50Hz or DC48V
  • Ambient Temperature: 0～50℃
  • Humidity: 5%～90%
  • Dimensions: 25×180×100MM(H×W×D)

Model HY-524G
Number of interfaces

Electric port: 10/100/1000M 4-RJ45,

SFP port: 1000M 2-SFP
Installation method Wall Mount
Product Dimension 25×180×100MM(H×W×D)
Power and power 220V(80-265V)AC, 50Hz or DC48V
Working temperature 0～50℃
Storage ambient temperature 0～50℃
