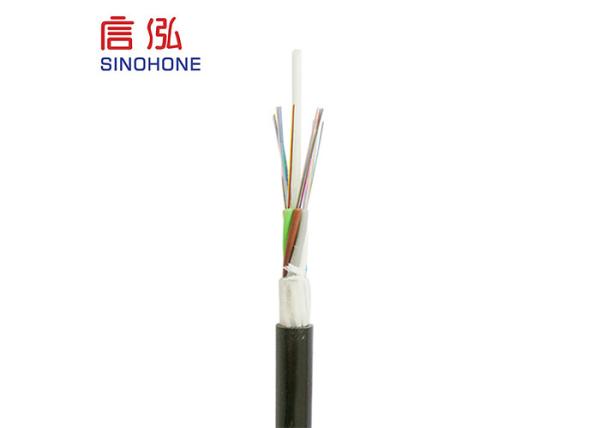

18 Core Outdoor Fiber Optic Cable Non - Metallic Duct And Non - Self Supporting
18 Core Outdoor Fiber Optic Cable Non - Metallic Duct And Non - Self Supporting
Specifications
Brand Name :
SINOHONE
Model Number :
GYFY-18
Certification :
RoHS / UL / CE / CPR / ISO9001
Place of Origin :
Sichuan, China
MOQ :
2 kilometers
Price :
USD $0.38~$0.58 / meter
Payment Terms :
L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability :
500 Kilometer/Kilometers per Day Ftth Drop Cable
Delivery Time :
5-8 work days
Packaging Details :
2km per Iron wooden drum add covering board or customized
Product Name :
Outdoor fiber optic cable

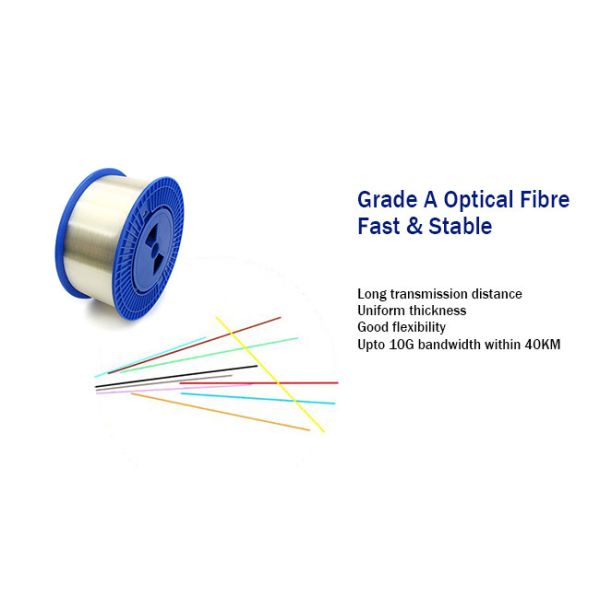

Fiber Type :
G655 G652 G657 OM1 OM2 OM3
Fiber Count :
18 Fibers
Conductor Material :
Fiber
Armour :
Steel tape
Structure :
Loose tube strand
Sheath :
PE
Description

18 core PE sheath Non-metallic duct and non-self supporting aerial fiber optic cable

Description

Fiber optic cable GYTA53, 2~288 fibers, central strength member (FRP), jelly filled, fiber contained loose tube and PP filler (if necessary) stranded, water blocking jelly, copolymer coated aluminum tape, PE inner sheath, longitudinally covered by copolymer coated steel tape, PE outer sheath. G652D SM fiber.Detailed specification on your request.

Application

  1. CATV

  2. Local trunk line

  3. Rural communication

  4. Computer networks system

  5. Aerial & conduit/duct application

Standards

Comply with Standard YD/T 901 as well as IEC 60794-1.
Tempeature: Operating /Storage:-40°c +70°c

Paramenters

Item

Parameters

Loose tube

Material

PBT

Color

All colors display

Filler

Material

PE

Color

Black

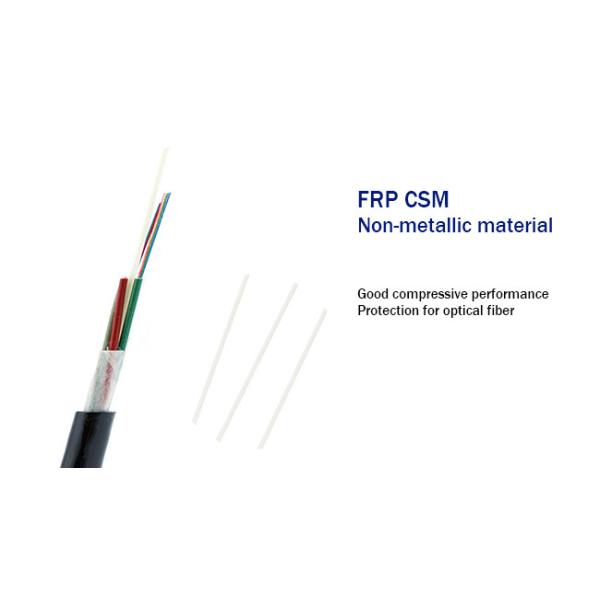

CSM

Material

FRP

Inner armoured

Material

Plastic coated aluminum strip

Inner jacket

Material

MDPE

Color

Black

Outer armoured

Material

Plastic coated steel strip

Outer jacket

Material

MDPE

Color

Black

Min. bending radius

Static

12.5 times cable diameter

Dynamic

25 times cable diameter

Repeating bending

Load:250N;number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage.

Tensile performance

Short term

3000N

Crush

Short term

3000N/100mm

Torsion

Load:250N; number of cycles:10; twist angle:±180° No obvious addition attenuation, no fiber break and no cable damage.

Cable Structure

Fiber count

Structure

Fibers per tube

Loose tube diameter(mm)

CSM diameter/pad diameter(mm)

Thickness of Inner jacket(mm)

Thickness of outer jacket(mm)

Cable diameter(mm)

Cable Weight(kg/km)

4

1+6

4

2.2±0.1

2.6/2.6

0.9±0.1

1.6±0.1

14.4 ±0.5

191

6

1+6

6

2.2±0.1

2.6/2.6

0.9±0.1

1.6±0.1

14.4 ±0.5

191

8

1+6

4

2.2±0.1

2.6/2.6

0.9±0.1

1.6±0.1

14.4 ±0.5

191

12

1+6

6

2.2±0.1

2.6/2.6

0.9±0.1

1.6±0.1

14.4 ±0.5

192

18

1+6

6

2.2±0.1

2.6/2.6

0.9±0.1

1.6±0.1

14.4 ±0.5

192

24

1+6

6

2.2±0.1

2.6/2.6

0.9±0.1

1.6±0.1

14.4 ±0.5

192

30

1+6

6

2.2±0.1

2.6/2.6

0.9±0.1

1.6±0.1

14.4 ±0.5

192

36

1+6

6

2.2±0.1

2.6/2.6

0.9±0.1

1.6±0.1

14.4 ±0.5

192

48

1+6

12

2.5±0.1

2.6/2.6

0.9±0.1

1.6±0.1

15.0 ±0.5

205

60

1+6

12

2.5±0.1

2.6/2.6

0.9±0.1

1.6±0.1

15.0 ±0.5

207

72

1+6

12

2.5±0.1

2.6/2.6

0.9±0.1

1.6±0.1

15.0 ±0.5

208

84

1+7

12

2.5±0.1

2.6/3.5

0.9±0.1

1.6±0.1

15.9 ±0.5

231

96

1+8

12

2.5±0.1

3.0/4.3

0.9±0.1

1.6±0.1

16.8 ±0.5

257

108

1+9

12

2.5±0.1

3.0/5.1

0.9±0.1

1.6±0.1

17.6 ±0.5

279

120

1+10

12

2.5±0.1

3.0/5.9

0.9±0.1

1.6±0.1

18.4 ±0.5

303

132

1+11

12

2.5±0.1

3.0/6.6

0.9±0.1

1.6±0.1

19.1 ±0.5

324

144

1+12

12

2.5±0.1

3.0/7.5

0.9±0.1

1.6±0.1

20.0 ±0.5

353


18 Core Outdoor Fiber Optic Cable Non - Metallic Duct And Non - Self Supporting18 Core Outdoor Fiber Optic Cable Non - Metallic Duct And Non - Self Supporting
