Roll Figure 8 Shape G652D Outdoor Fiber Optic Cable Self Supporting HDPE Sheath
Roll Figure 8 Shape G652D Outdoor Fiber Optic Cable Self Supporting HDPE Sheath
Roll Figure 8 Shape G652D Outdoor Fiber Optic Cable Self Supporting HDPE Sheath
Roll Figure 8 Shape G652D Outdoor Fiber Optic Cable Self Supporting HDPE Sheath
Specifications
Brand Name :
SINOHONE
Model Number :
GYTC8Y
Certification :
RoHS / UL / CE / CPR / ISO9001
Place of Origin :
Sichuan, China
MOQ :
2 kilometers
Price :
USD $0.38~$0.58 / meter
Payment Terms :
L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability :
500 Kilometer/Kilometers per Day Ftth Drop Cable
Delivery Time :
5-8 work days
Packaging Details :
2km per Iron wooden drum add covering board or customized
Product Name :
Figure 8 Aerial Fiber Optic Cable
Fiber Type :
G655 G652 G657 OM1 OM2 OM3
Fiber Count :
2 ~ 24 Fibers
Core Number :
4
Shape :
Figure 8
Armor :
Steel Tape
Sheath :
HDPE
Description

Figure 8 Shape G652D Fiber Self-Supporting Aerial Outdoor Fiber Optic Cable

Description

GYTC8Y is a typical self supporting outdoor fiber optic cable with features of moisture resistance and crush resistance suitable for aerial application.

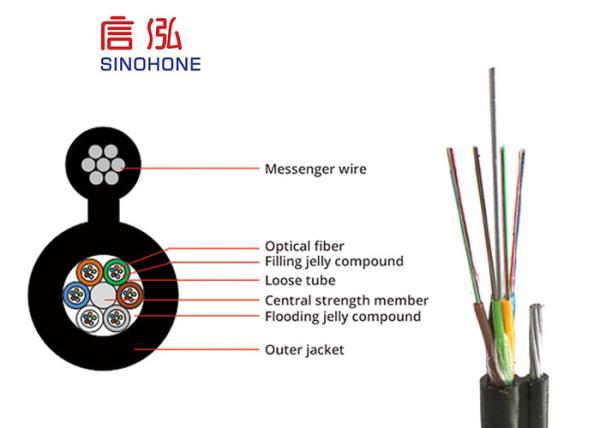

The stranded wires as the supporting part are completed with a PE sheath to be figure 8 structure. PE outer sheath provide crush resistance and gun shot resistance features. The FRP central strength improves the tensile strength and it is surrounded by the loose tube and water blocking tape and glass fiber. The impact struture ensures excellent mechanical and environmental performance.

Both single mode type and multimode types are available. Various lengths and fiber number can be customized according to customers' requirements.

Applications

Inter-building voice or data communication backbones

Duct and self-supporting aerial

Characteristics

Loose tube gel-filled construction for superior fiber protection

Corrugated steel tape armor to protect cable from mechanical damage

Self-supporting figure 8 design

Item
Parameters
Loose Tube
Material
PBT
Color
All color display
Filler
Material
PE
Color
Black
Electrical Unit
Insulation
HDPE
CSM
Phosphating steel wire
Armoured
Plastic coated steel strip
Outer Jacket
MDPE
Jacket Color
Black

Roll Figure 8 Shape G652D Outdoor Fiber Optic Cable Self Supporting HDPE SheathRoll Figure 8 Shape G652D Outdoor Fiber Optic Cable Self Supporting HDPE Sheath
