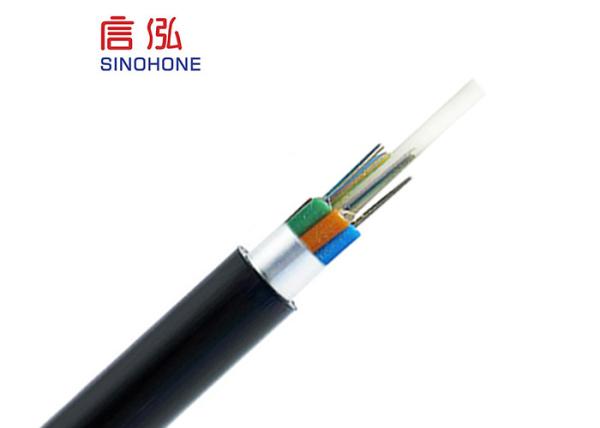

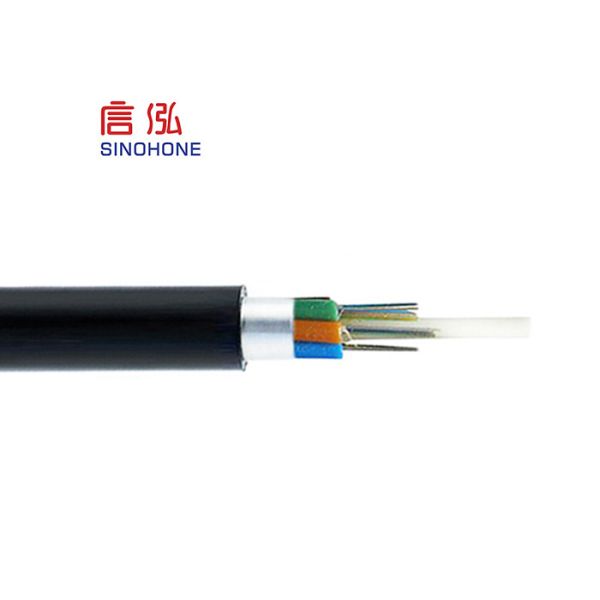

Water Blocking Yarn 96 Cores Fiber Reinforced Plastic Optical Cable Customized Length
Water Blocking Yarn 96 Cores Fiber Reinforced Plastic Optical Cable Customized Length
Water Blocking Yarn 96 Cores Fiber Reinforced Plastic Optical Cable Customized Length
Water Blocking Yarn 96 Cores Fiber Reinforced Plastic Optical Cable Customized Length
Specifications
Brand Name :
SINOHONE
Model Number :
GYFTA
Certification :
RoHS / UL / CE / CPR / ISO9001
Place of Origin :
Sichuan, China
MOQ :
2 kilometers
Price :
USD $0.38~$0.58 / meter
Payment Terms :
L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability :
500 Kilometer/Kilometers per Day Ftth Drop Cable
Delivery Time :
5-8 work days
Packaging Details :
2km per Iron wooden drum add covering board or customized
Product Name :
Outdoor fiber optic cable
Fiber Type :
G655 G652 G657 OM1 OM2 OM3
Fiber Count :
96 Fibers
Length :
2 km per roll or customized
Central Strength Member :
FRP
Armor :
Aluminum Tape
Sheath :
PE
Description

Water Blocking Yarn 96 Cores Single Mode Fiber Reinforced Plastic Optical Cable

Description

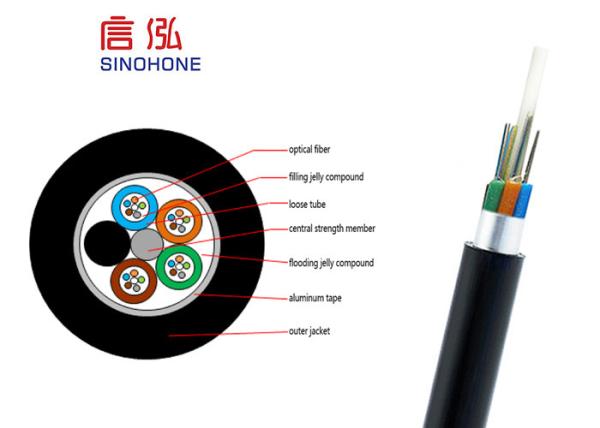

The structure of the GYFTY cable is to insert a 250 μm fiber into a loose tube made of a high modulus material, and the loose tube is filled with a waterproof compound.

At the center of the core is a fiberglass reinforced plastic (FRP), and the loose tube (and the filling rope) is twisted around the central reinforcing core into a compact and round core with a gap in the core filled with a water-blocking filler. The outer core of the cable is extruded with a polyethylene inner sheath to form a cable.

Applications

  1. duct
  2. non self-supporting aerial
  3. groove
  4. tunnel
  5. leading in
  6. cable trench

Characteristics

  1. excellent water-blocking performance
  2. favourable lateral pressure resistance, mechanical and temperature performance
  3. structure is convenient for installation
  4. excellent tensile
  5. loose tube material has good hydrolysis resistance performance and high strength

Item
Parameters
Loose Tube
Material
PBT
Color
All color display
Filler
Material
PE
Color
Black
Electrical Unit
Insulation
HDPE
CSM
FRP
Armoured
Plastic coated steel strip
Outer Jacket
MDPE
Jacket Color
Black

Water Blocking Yarn 96 Cores Fiber Reinforced Plastic Optical Cable Customized LengthWater Blocking Yarn 96 Cores Fiber Reinforced Plastic Optical Cable Customized Length
