Figure 8 Armoured Fiber Optic Cable Outdoor Multimode Fiber Cable Longlife
Figure 8 Armoured Fiber Optic Cable Outdoor Multimode Fiber Cable Longlife
Specifications
Brand Name :
SINOHONE
Model Number :
GYTC8A
Certification :
RoHS / UL / CE / CPR / ISO9001
Place of Origin :
Sichuan, China
MOQ :
2 kilometers
Price :
USD $0.38~$0.58 / meter
Payment Terms :
L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability :
500 Kilometer/Kilometers per Day Ftth Drop Cable
Delivery Time :
5-8 work days
Packaging Details :
2km per Iron wooden drum add covering board or customized
Product Name :
Figure 8 aerial fiber optic cable
Application :
Outdoor, Aerial
Fiber Count :
6, 24, 48, 96
Length :
2KM or customized
Armor :
Aluminum tape
Shape :
Figure 8
Feature :
Self-supporting
Description

Figure 8 Armoured Fiber Optic Cable Outdoor Multimode Fiber Cable


Description

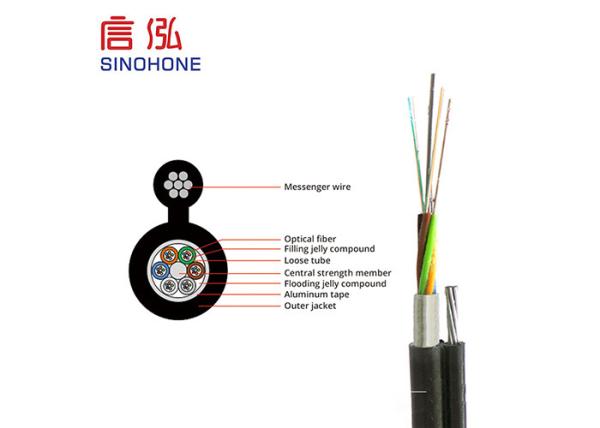

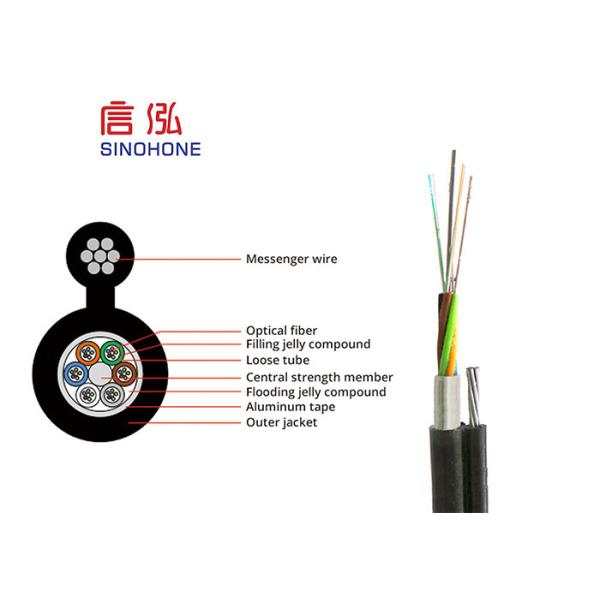

GYTC8A is a typical self supporting outdoor fiber optic cable with features of moisture resistance and crush resistance suitable for aerial application. Both single mode type and multimode types are available. Various lengths and fiber number can be customized according to customers’ requirements.


Characteristics:

  • Full cross-section water-blocking structure and double-sided coated film steel belt longitudinal application ensure good water blocking and moisture resistance.
  • Loose tube is filled with special grease to ensure good water blocking and moisture performance

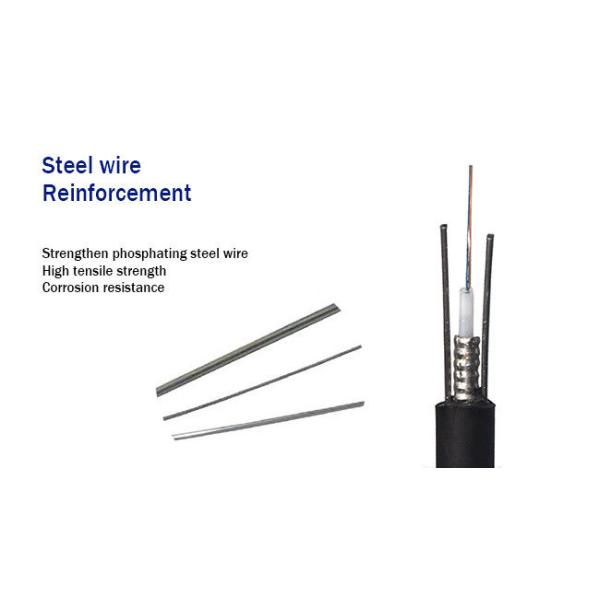

  • The phosphate wire center stiffening member is of high modulus and corrosion resistance.
  • The figure 8 aerial-self supporting structure is featured with high tensile strength, easy overhead laying, and low cost of installation
  • More than 30 years of service life.

Application

Communication Workshop

FTTH

Local Area Network

Fiber Sensor

CATV

Fiber Optical Communication System


Parameters

Fiber count

Structure

 Fibers per tube

Loose tube diameter

(mm)

CSM diameter

/pad diameter

(mm)

Thickness of outer jacket

(mm)

Cable diameter/

Height

(mm)

Cable

Weight

(kg/km)
4 1+5 4 1.7±0.1 1.4/1.4 1.6±0.1 9.0 ±0.5/15.9 ±0.8 135
6 1+5 6 1.7±0.1 1.4/1.4 1.6±0.1 9.0 ±0.5/15.9 ±0.8 135
8 1+5 4 1.7±0.1 1.4/1.4 1.6±0.1 9.0 ±0.5/15.9 ±0.8 135
12 1+5 6 1.7±0.1 1.4/1.4 1.6±0.1 9.0 ±0.5/15.9 ±0.8 135
24 1+5 6 1.7±0.1 1.4/1.4 1.6±0.1 9.0 ±0.5/15.9 ±0.8 136
36 1+6 6 1.7±0.1 1.8/1.8 1.6±0.1 9.4 ±0.5/16.3 ±0.8 150
48 1+5 12 2.0±0.1 1.4/1.4 1.6±0.1 9.7 ±0.5/16.6 ±0.8 146
72 1+6 12 2.0±0.1 2.0/2.0 1.6±0.1 10.4 ±0.5/17.3 ±0.8 170
96 1+8 12 2.0±0.1 2.2/3.5 1.6±0.1 12.0 ±0.5/19.2 ±0.8 204


Figure 8 Armoured Fiber Optic Cable Outdoor Multimode Fiber Cable Longlife

Figure 8 Armoured Fiber Optic Cable Outdoor Multimode Fiber Cable Longlife
