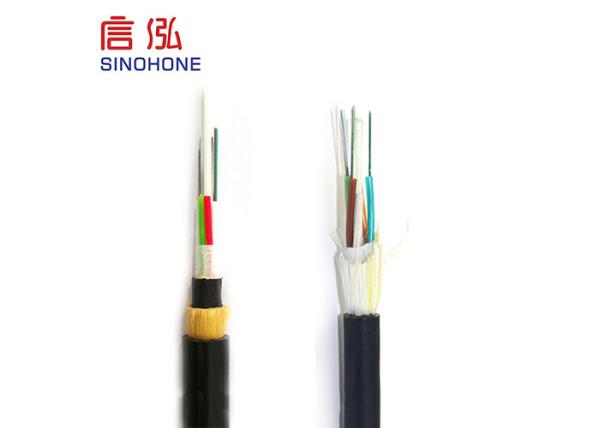

Self Supporting All Dieletric 500 Ft Fiber Optic Cable Outdoor 96 Core ADSS
Self Supporting All Dieletric 500 Ft Fiber Optic Cable Outdoor 96 Core ADSS
Self Supporting All Dieletric 500 Ft Fiber Optic Cable Outdoor 96 Core ADSS
Self Supporting All Dieletric 500 Ft Fiber Optic Cable Outdoor 96 Core ADSS
Specifications
Brand Name :
SINOHONE
Model Number :
ADSS
Certification :
RoHS / UL / CE / CPR / ISO9001
Place of Origin :
Sichuan, China
MOQ :
2 kilometers
Price :
USD $0.38~$0.58 / meter
Payment Terms :
L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability :
500 Kilometer/Kilometers per Day Ftth Drop Cable
Delivery Time :
5-8 work days
Packaging Details :
2km per Iron wooden drum add covering board or customized
Product Name :
ADSS outdoor fiber optic cable
Fiber Type :
G652D
Fiber Count :
Custom
Feature :
All Dieletric
Strength Member :
Kevlar
Jacket :
Single or Double
Sheath :
PE, HDPE, MDPE
Span :
100m, 200m, 400m, 500m
Description

Self Supporting All Dieletric 96 Core ADSS Outdoor Fiber Optic Cable

Description

Sinohone ADSS fiber optic cable is strong enough to support itself between structures without using conductive metal elements.

  • ADSS is an alternative to OPGW and OPAC with lower installation cost.
  • The cables are designed to be strong enough to allow lengths of up to 700 metres to be installed between support towers.
  • ADSS cable is designed to be lightweight and small in diameter to reduce the load on tower structures due to cable weight, wind, and ice.

Characteristics

  1. Can be installed without shutting off the power
  2. Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach 25kV
  3. Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
  4. Large span lengths and the largest span is over 1000m
  5. Good performance of tensile strength and temperature
  6. The design life span is 30 years
  7. Working temperature: -40°C ~ +70°C

Standards

Comply with Standard YD/T 901 as well as IEC 60794-1.
Tempeature: Operating /Storage:-40°c +70°c

Applications

It is used by electrical utility companies as a communications medium, installed along existing overhead transmission lines and often sharing the same support structures as the electrical conductors.

Paramenters

Item Unit Specification
G. 652
Mode field diameter 1310nm mm 9.2 ± 0.4
1550nm mm 10.4 ± 0.8
Cladding diameter mm 125.0 ± 1
Cladding non-circularity % £1.0
Core/cladding concentricity error mm £0.5
Coating diameter mm 242 ± 7
Coating/cladding concentricity error mm £12
Cable cut-off wavelength nm £1260
Attenuation Coefficient 1310nm dB/km £0.36
1550nm dB/km £0.22
Proof stress level kpsi £100

Cable Structure

Item Parameters
Loose tube Material PBT
Color Full color spectrum
Filler Material PE
Color Black
CSM Material FRP
Inner jacket Material MDPE
Color Black
Non-metal reinforced pieces Material Aramid yarn
Outer jacket Material MDPE
Color Black
Min. bending radius Static 12.5 times cable diameter
Dynamic 25 times cable diameter
Tensile performance Core RTS N MAT N EDS N
24 22000 10000 5500
Crush Short term 3000N/100mm
Span / m 500
SAG / m 8.75


Self Supporting All Dieletric 500 Ft Fiber Optic Cable Outdoor 96 Core ADSS
