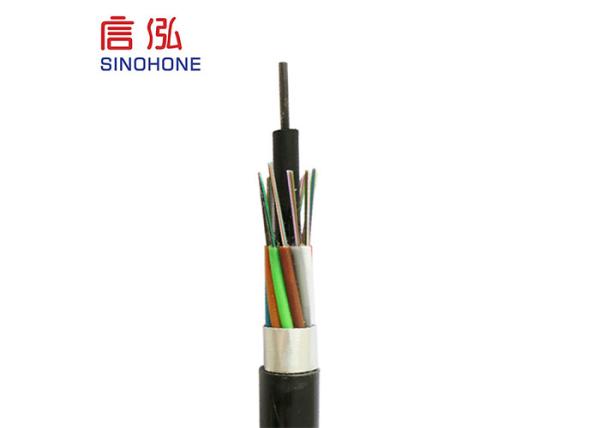

Jelly Compound 8 Core Bulk Outdoor Fiber Optic Cable Single Mode And Multimode
Jelly Compound 8 Core Bulk Outdoor Fiber Optic Cable Single Mode And Multimode
Jelly Compound 8 Core Bulk Outdoor Fiber Optic Cable Single Mode And Multimode
Jelly Compound 8 Core Bulk Outdoor Fiber Optic Cable Single Mode And Multimode
Specifications
Brand Name :
SINOHONE
Model Number :
GYTA / GYFTA
Certification :
RoHS / UL / CE / CPR / ISO9001
Place of Origin :
Sichuan, China
MOQ :
2 kilometers
Price :
USD $0.38~$0.58 / meter
Payment Terms :
L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability :
500 Kilometer/Kilometers per Day Ftth Drop Cable
Delivery Time :
5-8 work days
Packaging Details :
2km per Iron wooden drum add covering board or customized
Product Name :
Outdoor fiber optic cable
Fiber Type :
G655 G652 G657 OM1 OM2 OM3
Fiber Count :
8 core
Length :
2KM or customized
Material :

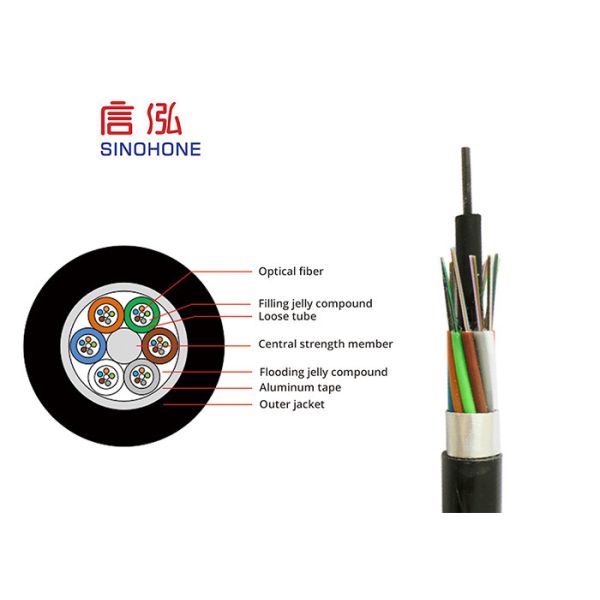

Aluminum tape, Filling jelly compoud, Flooding jelly compound
Service :
OEM ODM,FOB CIF EXW CNF
Sheath :
HDPE/MDPE BLACK
Description

Outdoor Jelly Compound 8 Core Single Mode and Multimode Fiber Optic Cable


Description

GYTA is used for duct or aerial applications. These aluminum tape armored cables are suitable for installation for long haul communication and LANs, especially suitable for the situation of high requirements of moisture resistance. It is the stranded loose tube fiber optic cable with compact structure; the cable jacket is made of strong Polyethylene; High strength loose tube that is hydrolysis resistant. Hongan provides GYTA from 4 fiber cores to 288 fiber cores. Both single mode type and multimode types are available. We also provide Customized Service such as fiber number, fiber color and cable length, etc.

Characteristics:

  • Good mechanical and temperature performance
  • High strength loose tube that is hydrolysis resistant
  • Special tube filling compound ensure a critical protection of fiber
  • Crush resistance and flexibility
  • PE sheath protects cable from ultraviolet radiation
  • 100% cable core filling

Application

  1. Designed for installation in an underground duct for data transmission

  2. Cable can also be routed vertically inside buildings


Parameters

Item
Parameter
Fiber-G652D
Attenuation Coefficient
1310nm dB/km ≤0.4
1550nm dB/km ≤0.3
Outer jacket
Material
MDPE
Color
Black
Min. bending radius
Static
10 times cable diameter
Dynamic
20 times cable diameter
Repeating bending
Load:150N;number of cycles:30 No obvious addition attention, no fiber break and no cable damage.
Tensile performance
Short term
1500N The addition attention≤0.1dB,fiber strain ≤0.15%
Crush
Short term
1000N/100mm The addition attention≤0.1dB
Torsion
Load:150N; number of cycles:10; twist angle:±180° No obvious addition attention, no fiber break and no cable damage.
Impact
Impact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attention, no fiber break and no cable damage.


Jelly Compound 8 Core Bulk Outdoor Fiber Optic Cable Single Mode And Multimode
