Seamless Digital P6 Outdoor Full Color LED Display Screen 27777 Dots/m²
Seamless Digital P6 Outdoor Full Color LED Display Screen 27777 Dots/m²
Seamless Digital P6 Outdoor Full Color LED Display Screen 27777 Dots/m²
Seamless Digital P6 Outdoor Full Color LED Display Screen 27777 Dots/m²
Specifications
Brand Name :
NIYAKR
Model Number :
P6
Certification :
CE,ROHS,EMC,UL,ISO
Place of Origin :
Shenzhen,China
MOQ :
1 Square Meter
Price :
USD
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20000 Square Meters Per Month
Delivery Time :
12-18 Working Days
Packaging Details :
Wooden Case
Product Name :
Outdoor LED Large Screen Display
Pixel Pitch :
6mm
Pixel density :
27777 dots/m²
Brightness :
≥6500 cd/m²
Cabinet size :
960*960mm
Waterproof :
IP65
Description

Seamless Digital P6 Outdoor Full Color LED Display Screen 27777 Dots/m²

Specification

Module Parameter:

Pixel pitch 6mm
Pixel configuration 1R1G1B
LED type 3-in-1 SMD 3535
Module size 192x192mm
Module weight 400g
Module resolution 32*32 dots

Cabinet Parameter:

Cabinet size 960*960*110mm
Cabinet material Waterproof Full Color Iron Cabinet
Cabinet weight 3kgs
Cabinet resolution 160x160 dots
Ingress protection Front/Rear IP65/IP54
Whole Screen Parameter
Pixel density 27777 dots/m²
Brightness ≥6500 cd/m²
Viewing angle H≥120° V≥120°
Min.viewing distance 2.5m
Max.power consumption 800W/m²
Avg.power consumption 400 W/m²
Working voltage 110~220VAC±15%
Interface HUB75
Colors 16.7millon colors
Gray level 14-16bits
Frame frequency ≥60frames/s
Refresh rate ≥600Hz
MTBF ≥10000 hours
Lifespan ≥100000 hours
Protective function

Over-heat/Over-load /Power-down /Power-leakage

/Lightning-protection etc.
Operating temperature -10℃ ~ +70℃
Operating humidity 10-80% no condensation
Storage temperature -20℃ ~ +60℃
Storage humidity 10-85% no condensation

Control System Parameter:

Video signal (with video processor) AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP
Color temperature Adjustable by software
Brightness level 256 levels, automatic adjustment by software
Control way Computer, video-synchronous, real-time, off-line, wireless, internet etc.

Applications:

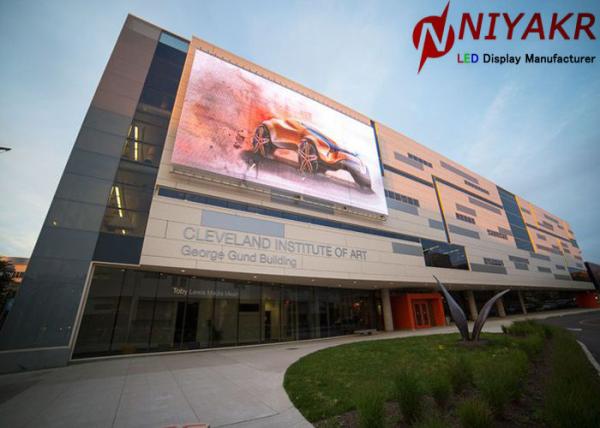

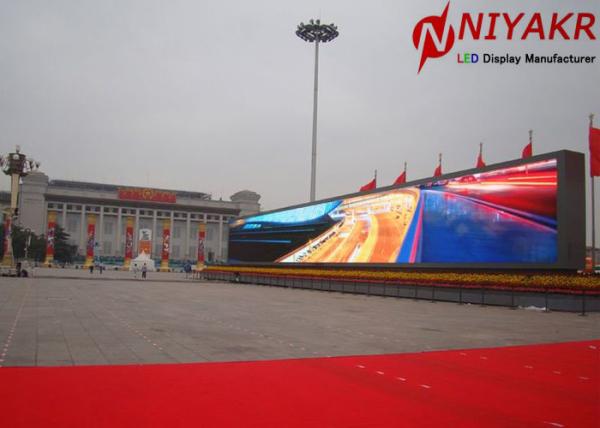

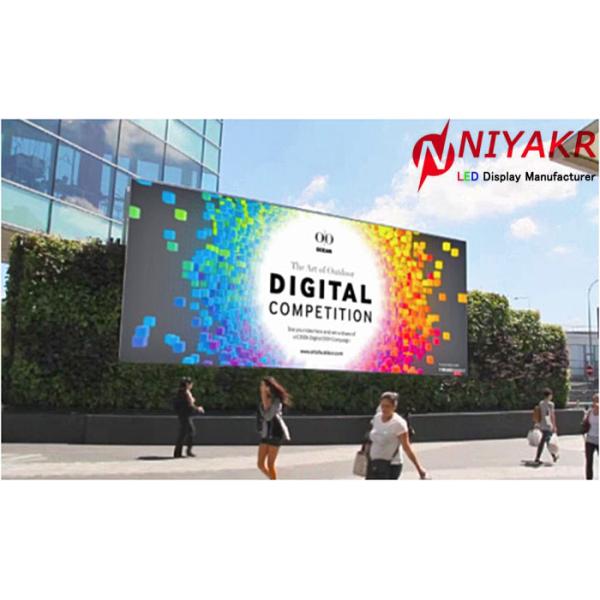

Our Full Color SMD Outdoor P6 LED Display is mainly for outdoor usage, such as commercial advertising,

mobile media, night club, entertainment events, business establishments, can install in banks, stock exchange

centers, bus station, schools, telecommunications, customs, stadiums, studio, shopping, malls, railways,

airports, harbors, etc.

After-sale Service

Lifetime free maintenance and upgrade.

Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.

Customer satisfaction tracking report.

Free technician training.

Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
