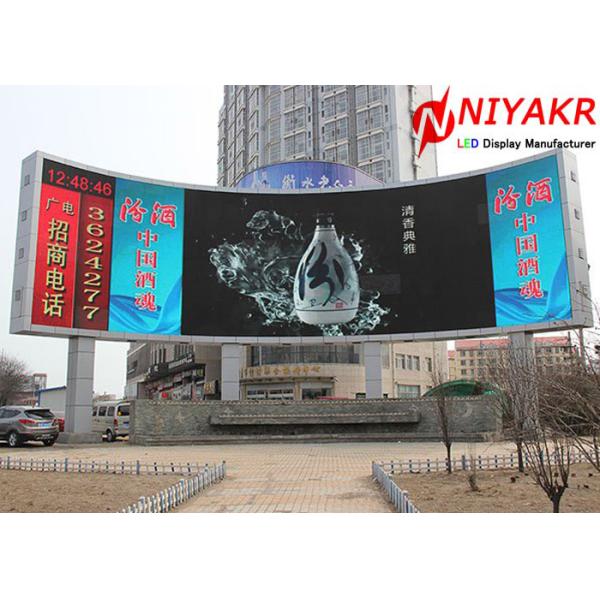

Advertising Outdoor Full Color LED Display P6 6500 Nits Brightness CE ROHS Approve
Advertising Outdoor Full Color LED Display P6 6500 Nits Brightness CE ROHS Approve
Advertising Outdoor Full Color LED Display P6 6500 Nits Brightness CE ROHS Approve
Advertising Outdoor Full Color LED Display P6 6500 Nits Brightness CE ROHS Approve
Specifications
Brand Name :
NIYAKR
Model Number :
P6
Certification :
CE,ROHS,EMC,UL,ISO
Place of Origin :
Shenzhen,China
MOQ :
1 Square Meter
Price :
USD
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20000 Square Meters Per Month
Delivery Time :
12-18 Working Days
Packaging Details :
Wooden Case
Product Name :
6mm
Pixel density :
27777 Dots Per Sqm
Brightness :
6500 CD
Cabinet dimension :
768x768mm
Waterproof :
IP65
Name :
Outdoor Full Color LED Display
Description


Advertising Outdoor Full Color LED Display P6 6500 Nits Brightness CE ROHS Approve




Description:

  1. Classical structure,solid and stable.
  2. Integrating LED and IC in 1 PCB,further improve stability and ability of heat radiation.
  3. Inner circuit,effectively reducing the influence of natural factors to line connection.
  4. Supporting MBI5035 IC and PFC power supply,energy saving up to 50% and more.

P10 outdoor LED advertising display.pdf
Features:

1.Clear picture without flicker and distortion
2. Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive
3. Low consumption, stable performance, highly durable
4. High brightness & broad viewing angle, brightness can be adjusted automatically or manually
5. 3 years warranty, easy to install & maintenance
6. CE, RoHS, FCC


Specification:

Pixel pitch(mm) 6
Configuration SMD3535
Module dimension(mm) 192x192
Module weight(kg) 0.37
Panel dimension(mm) 768x768x120
Panel weight(kg) 55
Pixel density(dots/㎡) 27777
Flatness error(mm) ≤0.1
Viewing angle 120°/120°(Horizontal/Vertical)
Brightness(cd/㎡) 6500
Color temperature(K) 5000~9500 (Adjustable)
Contrast 4000:01:00
Repetition frequency 50/60Hz
Refresh frequency(Hz) 1200
Gray scale 65536
Ave. power(W/㎡) 440
Max power(W/㎡) 1100
Working temp./humidity -10~40℃/10%~80%RH
Storing temp./humidity -20~60℃/10%~85%RH
Panel structure Iron
Maintenance Rear
Protection IP65/IP54
Driving mode Constant current driver
Scanning 1月4日
Power requirements AC90~264V, 47~63Hz
Life time(hrs) 100,000
Certificate CCC/TUV-CE/ETL, etc.



Advertising Outdoor Full Color LED Display P6 6500 Nits Brightness CE ROHS Approve
