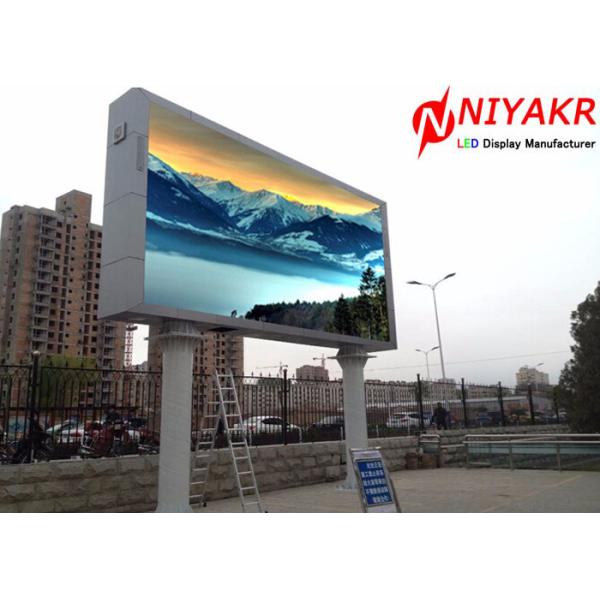

Full Color Outdoor Advertising LED Display 8mm Pixel Pitch Easy Maintenance
Full Color Outdoor Advertising LED Display 8mm Pixel Pitch Easy Maintenance
Full Color Outdoor Advertising LED Display 8mm Pixel Pitch Easy Maintenance
Full Color Outdoor Advertising LED Display 8mm Pixel Pitch Easy Maintenance
Specifications
Brand Name :
NIYAKR
Model Number :
P8
Certification :
CE,ROHS,EMC,UL,ISO
Place of Origin :
Shenzhen,China
MOQ :
1 Square Meter
Price :
USD
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20000 Square Meters Per Month
Delivery Time :
12-18 Working Days
Packaging Details :
Wooden Case
Product Name :
Outdoor Advertising LED TV Display
Pixel Pitch :
8mm
Pixel configuration :
1R1G1B
LED Type :
SMD3535
Density :
15625pixel/m²
Life time :
≥100,000hours
Description

Full Color Outdoor Advertising LED Display 8mm Pixel Pitch Easy Maintenance

Features:

• High brightness /refresh rate/color contrast ratio.

• Energy saving IC and special design of circuit diagram, power consumption to be decreased by 35-50%.

• Flat screen, no gap. Panels were made by high-precision molding plastic injection, no slit on the screen.

• Professional radiant calibration system to make sure the color and brightness uniformity.

• Perfect solution for heat ventilation, good water proof and stable performance.

• First-class LED chip: Supplied by Silan, Cree, Epistar or other high strictly selected LED chip to

ensure the long life time and high brightness of our LED screen system.

Specification:

Item Technical Specification
Pixel Pixel pitch: 8mm
Pixel configuration: 1R1G1B
Brightness: Red: 600mcd Green: 2300mcd Blue: 500mcd
Wave length: Red: 625±2nm Green: 525±2nm Blue: 470±2nm
Module Module size: 256mmx128mm
Module resolution:32x16 pixels
Cabinet Cabinet resolution: 12288 pixels
Cabinet material: Steel
Gross weight: 55kg
Module quantity: 32pcs= 8(w) x 4(h)
Cabinet size: 1024mm×768mm×150mm
Power consumption : Max.:1200W/m² Average: 500W/m²
Screen parameter Drive method: 1/4 scanning
Brightness: 8000cd/m²
IC driver: MBI 5024
Density: 15625pixel/m²
Whole display flatness: ≤ 1mm juncture
Best view distance: ≥ 16m
Viewing angle: Horizontal: 120° Vertical: 60°
Humidity(RH): ≤ 90~95%
Working temperature: from -20°C~ +50°C
Working voltage: AC220V/110V±20%
Refresh frequency: ≥ 300Hz(Linsn)
Frame rate: ≥ 540Hz
Protection grade: IP67
MTBF: More than 10000hrs
Life time: 100,000 hrs
Control system Control system: Linsn
Signal interface: DVI
Communication distance: The shielded twisted-pair cable transmission distance for 100 meters, the biggest up to 140 m. Multimode fiber of up to 500 meters, the single-mode optical fiber to 20 kilometers
Systems operating platforms :XP,WINDOWS(WIN95,WIN98,WIN2000)
Input Signal:RF,S-VIDEO,RGBTV,YUT,YC,COMPOSITION
Image adjustment:contrast, tonal, the color saturation, gray calibration coefficient, color range, image variable times, etc
Life span:100,000 hours
Out-of Control rate:0.0001
Control system:Synchronized
Operating Environment Temperature :-20°C—65°C Optional

Full Color Outdoor Advertising LED Display 8mm Pixel Pitch Easy Maintenance

Full Color Outdoor Advertising LED Display 8mm Pixel Pitch Easy Maintenance
