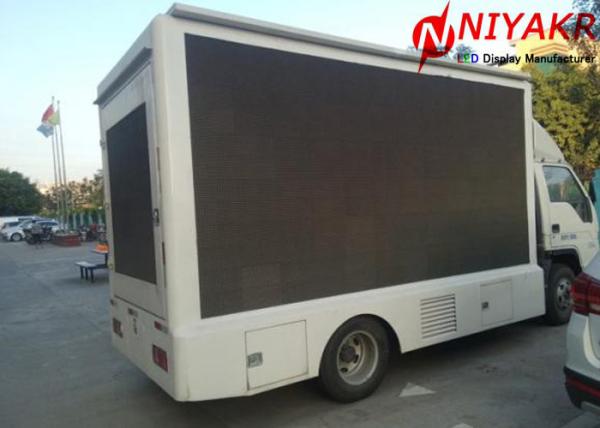

SMD P8 Outdoor Mobile LED Screen Full Color Mobile LED Signs For Rent
SMD P8 Outdoor Mobile LED Screen Full Color Mobile LED Signs For Rent
SMD P8 Outdoor Mobile LED Screen Full Color Mobile LED Signs For Rent
SMD P8 Outdoor Mobile LED Screen Full Color Mobile LED Signs For Rent
Specifications
Brand Name :
NIYAKR
Model Number :
P8
Certification :
CE,ROHS,EMC,UL,ISO
Place of Origin :
Shenzhen,China
MOQ :
1 Square Meter
Price :
USD
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Delivery Time :
20000 Square Meters Per Month
Packaging Details :
Wooden Case
Product Name :
Truck Mobile LED Display
Pixel Pitch :
P8
Pixel density :
15,625 dots/㎡
Cabinet dimension :
1024 * 768mm
Best visual distance :
>8m
Operation temperature :
﹣40℃~ +60℃
Description

SMD P8 Outdoor Mobile LED Screen Full Color Mobile LED Signs For Rent

Function and Technology Character:

1. Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive.

2. Information source can be camera, video, VCD, DVD, LD, TV and so on.

3. Clear picture without flicker and distortion.

4. Brightness, contrast, saturation can be adjust by itself and manual.

5. Show everything with your PC does synchronously.

6. Super correcting technology for distortion.

7. Multiform language editions, such as English, French, Germany, Greek, Russian and so on

8. Connected and controlled by PC via Lan and remote control.

9. One interface for sound signal and two for video signal at least.

Application and function:

Suit for advertisement, stage, stadium, exhibition, TV-Show, mansion video wall, shopping mall, banks, schools, bus station, airport, gym, market, factories, monitoring centers, hospitals, bars etc.

1. Video display for advertisement

2. Live broadcast for news, sport, concert…

3. Stage background

4. Dynamic display for logo, text, video

5. Information display for time, schedule, text

Technique SMD
Pixel structure 1R1G1B 3in1
Pixel pitch 8mm
Pixel density 15,625 dots/㎡
Luminance 1,500 cd/㎡
Module dimension 256mm(W) * 128mm(H)
Module resolution 32 pixel(W) * 16 pixelmm(H)
Cabinet dimension 1024 * 768mm
Cabinet resolution 128 * 96
Cabinet area 0.786 sq.meter
Optimal visual distance >8m
Visual angel 140 degree (H/V)
Max power consumption ≤780w / ㎡
Average power consumption ≤260w / ㎡
Brightness adjustment Adjust according to the enviroment
brightness software (0%-100%adjustable)
Gray scale point by point 4096 gray gradelevels of
each color,16 bits γ correction avilable
Drive mode 1/8 dynamic scan, constant current
Frame frequency ≥60HZ
Refresh frequency ≥1000HZ
Input voltage AC 90~260 volts
Operation temperature ﹣40℃~ +60℃
Operation humidity 10％～90％
Input signal S-video, RF, RGB, Yuv, YC, composite…
Control system DVI card + master control card + receiver card
MTBF >5000 hrs
Life span (50% brightness) 100,000 hrs
Malfunction dot rate 1/10000
Ingress protection rate IP31
Cabinet material Epoxy paint coated, aluminum / iron

SMD P8 Outdoor Mobile LED Screen Full Color Mobile LED Signs For Rent
