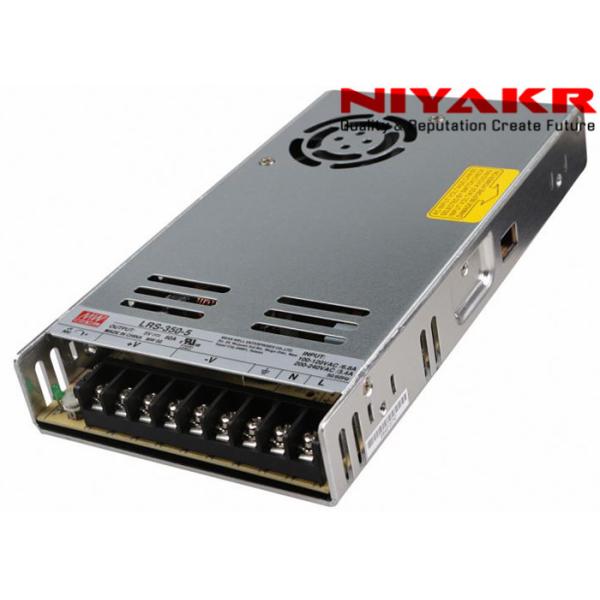

215×115×50mm LRS 350 Slim 5V 60A Meanwell Driver for LED Board
215×115×50mm LRS 350 Slim 5V 60A Meanwell Driver for LED Board
215×115×50mm LRS 350 Slim 5V 60A Meanwell Driver for LED Board
215×115×50mm LRS 350 Slim 5V 60A Meanwell Driver for LED Board
Specifications
Brand Name :
MeanWell
Model Number :
LRS-350-5
Certification :
CE,ROHS,ISO,UL
Place of Origin :
CHINA
MOQ :
1 PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000 PCS Per Month
Delivery Time :
1-5 working days
Packaging Details :
Carton Case
Product Name :
MEANWELL 5V 60A
Input Voltage :
90~132VAC
Output Voltage :
5VDC
Output Current :
60A
Dimension :
215*115*30mm
Warranty Time :
3 Years
Description

Stock 100% Original LRS-350 Slim Power Supply MEANWELL 5V 60A

Brand: Meanwell

Model: LRS-350-5

Power input: AC 100-240V 50/60Hz

Power output: DC 5V 40A 300W

Output type: Single

Size: 215*115*30mm

Certificate: FCC, CE, CCC, RoHs

215×115×50mm LRS 350 Slim 5V 60A Meanwell Driver for LED Board

Specification:
Model Number
LRS-350-5
Brand
MEAN WELL
Size
215×115×50mm
Wiring Instructions
Input (L N FG), output (V- V- V- V + V + V +)
AC Input Voltage Range
90~132VAC/180~264VAC or 240~370VDC
Input Rated Voltage
110-220VAC
Input Voltage Frequency
47~63Hz
Average Input Current
6.8A/115VAC 3.4A/230VAC
Overall Efficiency
≥83.5%
Output Voltage
5V
Adjustable Output Voltage Range
4.5~5.6V
Output Rated Current
0~60A
Output Ripple and Noise (Vp-p)
150mV
Boot Time
1S
Output Overvoltage Protection
5.75~6.75V
Output Overcurrent Protection
110~140%
Output Short Circuit Protection
No
Working Temperature
-25~70℃
Storage Temperature
-40~85℃
Cooling Method
Air Cooled
MTBF
≥327.9K hours
Weight
0.76kg
Certificate
CE,ROHS,FCC,ISO9001,TUV
Package
Package (pcs/carton)
10pcs
Packing Size
385*275*145
G.W(Kg/carton)
8kg

1.Ultra light &Slim
The LED power supply with high purity aluminum dhell,shell thickness ratio power market 1mm.Materials more solid ,better heat dissipation.But the entire power supply is thinner than the traditional power supply 20mm.Weight is more slender only 0.57KG,less than the traditional power 10%,and convenient trasportation
2.Ultra high efficiency &Hign performance price ratio
Ultra thin power supply is more efficient than the traditional power supply.The power supply capacity of the ultra -thin serise is 82%.Traditional power load capacity is 76%,6% higher than the product quality assurance.The price is basically epuivalent to the traditional power supply of the same parameters.
3.Intelligent installation &Wide temperature start
The ues of ultra thin serise power supply ,can work as usual in the environment of -30 - 60 ºC ,while the traditional power supply of the working environment is 20-50ºC,The application scope of ultra-thin serise power supply is broader .High intelligent installtion ,can choose two ends of the access output or one end access output ,install more saves engineering cost .

215×115×50mm LRS 350 Slim 5V 60A Meanwell Driver for LED Board

Our service:

Company System: we have been in LED industry for almost 10 years, focusing on the led display, and we have completed more than 2000 projects home and aboard,

thus we are fully experienced to provide led display solutions. We are focusing and professional!

R&D System: we have our R&D team with more than 7 years’ experience, and we will launch new products according to the customers ‘needs every year or even each quarter.

Products System: there are indoor and outdoor fixed led display screen, indoor and outdoor rental led display, creative led display such as advertising led poster, soft led display and led curtain mesh, they are widely used for shopping mall, stage, events, conference room, church etc. meeting the demands of message display and delivery.

Manufacturing System: we have strict QC control and manufacturing management process, which enable our products high quality and stable working performance.

Service System:we have specialized technicians before and after sales. And strong marketing team to offer you the solutions 24 hours.
