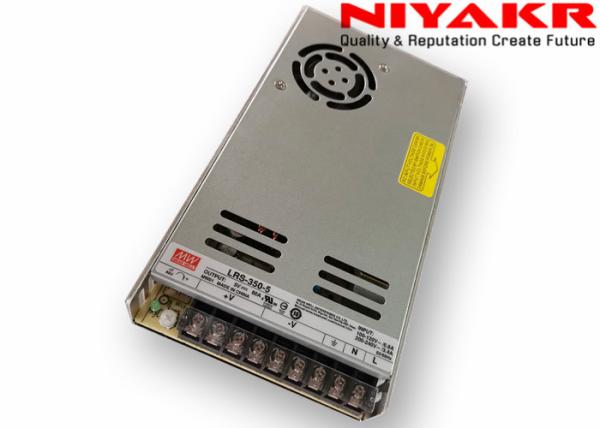

90VAC 132VAC LRS 350 5 Slim Led Switching Power Supply 5V
90VAC 132VAC LRS 350 5 Slim Led Switching Power Supply 5V
90VAC 132VAC LRS 350 5 Slim Led Switching Power Supply 5V
90VAC 132VAC LRS 350 5 Slim Led Switching Power Supply 5V
Specifications
Brand Name :
MeanWell
Model Number :
LRS-350-5
Certification :
CE,ROHS,ISO,UL
Place of Origin :
CHINA
MOQ :
1 PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000 PCS Per Month
Delivery Time :
1-5 working days
Packaging Details :
Carton Case
Product Name :
Meanwell 5V
Input Voltage :
90 ~ 132VAC / 180 ~ 264VAC
Output Voltage :
5VDC
Output Current :
60A
Dimension :
215*115*30mm
Case :
Metal case
Description

100% Original LRS-350-5 Slim Switching Power Supply Meanwell 5V

100% Original LRS-350-5 Slim Meanwell Power Supply 5V For LED Display

1. The product parameters described may be incorrect. Please refer to the official website data or contact our customer service personnel first.
2. Shipping terms is FOB China, you have to bear the tariffs caused in destination country.
3. The item is USED (or Refurbished), don't measure it by new standards. There may be scratches on the surface of the product, but it doesn't affect your use. We’ll try our best to give you a best one.
4.Usually motherboard without bios battery, post can't send,Express need add extra $5
5. This product has 30 days warranty. (We suggest you install and check it within 7 days after you get the parcel. If any problem then we can help you in time.)
6.There will be warranty label on this product. Without our permission, please don’t refit or disassemble the product. Once you did it or the warranty label is damaged, we won’t provide any warranty or refund.
7. Please inspect the parcel before you sign it. Please refuse to sign if you aren’t satisfied with the item (such as brand, appearance, damage and so on). Once you sign the parcel that means you agree on the item’s condition (we’ll provide warranty if function problem). If damage is found after receipt of the goods, please provide a complete proof of damage issued by the unpacked video and logistics company. If you can’t provide proof of damage, you will not be able to get compensation.

90VAC 132VAC LRS 350 5 Slim Led Switching Power Supply 5V

Features:

  • AC input range selectable by switch

  • Withstand 300VAC surge input for 5 second

  • Protections: Short circuit / Overload / Over voltage / Over temperature

  • Cooling by free air convection

  • Forced air cooling by built-in DC fan

  • Miniature size and 1U low profile

  • Withstand 5G vibration test

  • LED indicator for power on

  • No load power consumption<0.75W

  • 100% full load burn-in test

  • High operating temperature up to 70°C

  • Operating altitude up to 5000 meters (Note.8)

  • High efficiency, long life and high reliability

    3 years warranty

Specification:
Model Number
LRS-350-5
Brand
MEAN WELL
Size
215×115×50mm
Wiring Instructions
Input (L N FG), output (V- V- V- V + V + V +)
AC Input Voltage Range
90~132VAC/180~264VAC or 240~370VDC
Input Rated Voltage
110-220VAC
Input Voltage Frequency
47~63Hz
Average Input Current
6.8A/115VAC 3.4A/230VAC
Overall Efficiency
≥83.5%
Output Voltage
5V
Adjustable Output Voltage Range
4.5~5.6V
Output Rated Current
0~60A
Output Ripple and Noise (Vp-p)
150mV
Boot Time
1S
Output Overvoltage Protection
5.75~6.75V
Output Overcurrent Protection
110~140%
Output Short Circuit Protection
No
Working Temperature
-25~70℃
Storage Temperature
-40~85℃
Cooling Method
Air Cooled
MTBF
≥327.9K hours
Weight
0.76kg
Certificate
CE,ROHS,FCC,ISO9001,TUV
Package
Package (pcs/carton)
10pcs
Packing Size
385*275*145
G.W(Kg/carton)
8kg

90VAC 132VAC LRS 350 5 Slim Led Switching Power Supply 5V
