Indoor High Definition SMD 2121 P4 LED Display Screen Dimension Customized
Indoor High Definition SMD 2121 P4 LED Display Screen Dimension Customized
Specifications
Brand Name :
ABT
Model Number :
P4
Certification :
FCC,CE,UL,ROSH,ISO9001
Place of Origin :
Shenzhen,China
MOQ :
1square meter
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1500square meter/month
Delivery Time :
7-15days
Packaging Details :
wooden case;flight case
Module size :
256*128mm
Driving mode :
constant driving 1/16
Led type :
SMD2121
Brightness :
3000cd/sqm
Tube chip color :
full color
Screen dimension :
Customized
Description

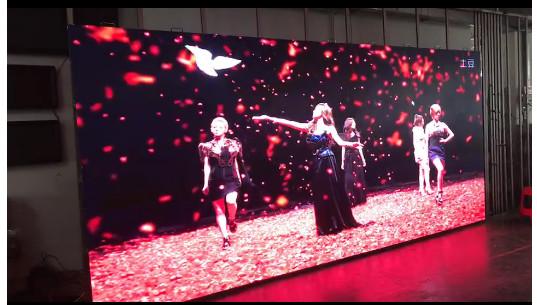

Indoor high definition smd 2121 P4 led display screen

Product Advantages:

1) Reliable quality, advanced and mature technology, compliant with industrial standards and technology developing trend.
2) Good heat emission, water proof and stable performance
3) Audio and video interface of the system can offer vivid, complete and high quality LED display to TV broadcasting signal
4) High resolution and definition of screen image, clear and non-flash screen image.
5) Supports video and radio frequency input, special structure can be freely assembled

Parameter:

High quality P4 SMD Electronic advertising board outdoor high brightness led display video wall screen for fixed installation

Model: P4
Pixel pitch 4mm Module size W256mm*H128mm
Pixel configuration 1R1G1B Module resolution W64 Dots*H32Dots
View angle 140°/140° Pixel density 62500dots/m²
LED encapsulation SMD 2121 Refresh rates 1920Hz
Driving Method Constant current Max power consumption 880w/m²
Display Brightness Maximum 3000cd/ M2 Average power consumption 400w/m²
Power Supply Requirement AC110V~220V±10% 47~64Hz Operating Temperature -20℃~+60℃
Best viewing distance ≥4m Operating Humidity 10%-95%RH
LED parameters R:625nm±5.0nm IV:400-500mcd MTBF >10,000 hours
G:525nm±2.5nm IV:1,800-2,200mcd Gray level RGB/8192/16bit
B:470nm±2.5nm IV:350-450mcd Life Span >100,000 hours

Our Services

1. We have built a professional customer service team, Our company will ensure the consistence of completion time and contracted time.

2. Pre-sale service

Projects Appraisal: Our sales team can be your technical adviser for free anytime; We are willing to provide the whole set of professional advice and blue prints, helping you better understand the project and realize what is the best scheme and solution for you.

3. In-sale services

Whole Journey Tracking: Once the order confirmed our sales will follow up the production process closely, make sure the customers' requirement is reached, and feedback to the customers timely, such as to update the latest production production progress, to provide the manufacturing pictures, packing pictures, shipping pictures and so on.

4. After-sale services

Quick Response & Timely Solutions: Our after-sales team is always ready to help customers solving their problem timely.
