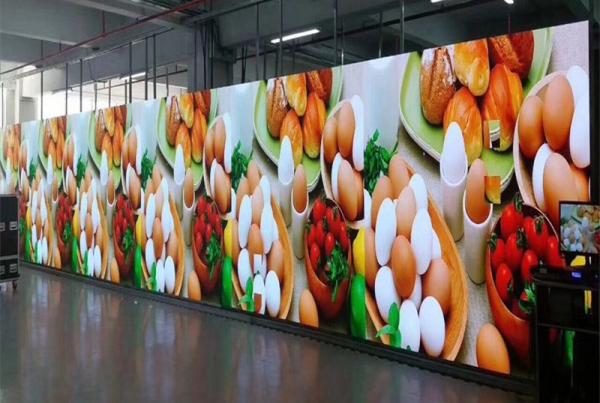

High definition Indoor P4 led video wall For Advertising
High definition Indoor P4 led video wall For Advertising
Specifications
Brand Name :
ABT
Model Number :
P4
Certification :
FCC,CE,UL,ROSH,ISO9001
Place of Origin :
Shenzhen,China
MOQ :
1square meter
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1500square meter/month
Delivery Time :
7-15days
Packaging Details :
wooden case;flight case
Module size :
256*128mm
Driving mode :
constant driving 1/16
Led type :
SMD2121
Brightness :
3000cd/sqm
Tube chip color :
full color
Screen dimension :
Customized
Description

High definition Indoor P4 led video wall For Advertising

Product Features:

1. indoor P4 SMD led display screen can be completed with simple cabinet,die casting aluminum cabinet,air-line cabinet,double sides cabinet etc.

2. P4 led screen can be used in stage,conference room,indoor big led wall,indoor led advertising billboard or for rental work etc.

3. indoor P4 SMD led display screen is one of the small led display,it looks more delicate and seemless and has amazing color balance across the whole wall

Parameter:

Pixel Pitch 4mm Pixel configuration 1R1G1B
Module size 256 x 128mm Module resolution 64x32pixel
Pixel density 62500 pixels/sq.m. Brightness 2000nits
Cabinet size 512 x 512mm Cabinet resolution 128x128pixel
Panel material Steel Refresh rate 1500HZ
Power consumption (max/avg) 800/350 (W/sq.m.) Colors 549 Billion
Gray scale per color 65536 level Viewing angle (H/V) 120/120 (deg)
IP rating (Front/Rear) IP43 Input voltage (AC) 110V ~ 240V
Operating temperature -20℃~+ 50℃ Operating humidity 10%~ 90%
MTBF 10,000hours Life Time 100,000hours

Our Services

Quality Guarantee
Warrant time is 2 years, during this period; we will maintain and replace the defect components for free, if the damage is caused by fault operation, you need to pay for cost. After warranty time is over, we will offer you component parts at our bottom cost

Technical Support
We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory. All operation manual, software, test reports are available. Any associated CAD drawing on how to fix up the display and some other expert suggestion will be provided. If need, we can send our engineer to your side for instruction, and clients should pay the cost about engineer’s trip.

Free Training
You can send your engineers to our factory for one week free of charge training, such as: soft operation,led video processor configure,installation, adjustment, basic repairing and so on.
