P4 HD Indoor Led Video Wall Full Color P4mm Pixel Pitch Constant Driving 1/16
P4 HD Indoor Led Video Wall Full Color P4mm Pixel Pitch Constant Driving 1/16
Specifications
Brand Name :
ABT
Model Number :
P4
Certification :
FCC,CE,UL,ROSH,ISO9001
Place of Origin :
Shenzhen,China
MOQ :
1square meter
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1500square meter/month
Delivery Time :
7-15days
Packaging Details :
wooden case;flight case
Module size :
256*128mm
Driving mode :
constant driving 1/16
Led type :
SMD2121
Brightness :
3000cd/sqm
Tube chip color :
full color
Screen dimension :
Customized
Description

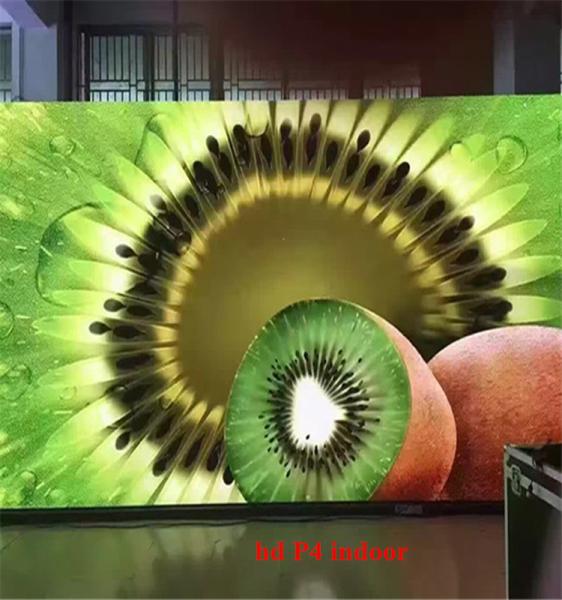

P4 HD Indoor Led Video Wall P4mm Pixel Pitch Led Display Screen

Product Features:

1. SMD3-in-1 technology are used for indoor LED display.

2. Wide view angle: 140 in horizonal and 140 in vertical.

3. Special design and advanced SMT technology improves the heat dissipation

4. With high refresh rate controller, guarantee that no scan line when taking photos.

5. Regular shape and special shape (such as curve, round) can be designed.

6. Easy for assembling and connecting with the connector added.

7. High color uniformity and clear image can bring you a vivid audio visual effect.

Parameter:

Pixel Pitch 4
Physical Density 62,500
LED Configuration 1RGB
LED type SMD2121
Module Size 256×128
Module Resolution 64×32
Module Power Consumption 30
Driving Mode Constant Current Drive
Scanning Mode 1/16
Horizontal Viewing Angle 140
Vertical Viewing Angle 140
Brightness ≥1800
Grey Scale 16bit
Refresh Rate ≥1500
Cabinet Resolution 256*256
Cabinet Max Consumption 950
Cabinet Average Power Consumption 450
Cabinet Size 512×512
Cabinet Weight 15
Cabinet Thickness 75
Cabinet Material Iron/Aluminum
Color >16.7
Input Voltage

AC 110V~220V +/-10%
Refresh Frame Frequency ≥60
Protection Level IP43
Working Environment

Indoor
Working Temperature -40° -+65°
Storage Humidity Range 10%~90%
Life Span 100,000 hours

FAQ:

1. Can you assign engineer to our site to guide the installation if we require?


Yes. We have qualified and experienced engineers who are ready to service for you.

2. How about your warranty and after-sale policy?


Two years warranty is free..
We provide 24 hour phone answering service and real-time remote control service if you have any problem with our led screen.

3. How long time I can get the cargos after placing the order ?

Our production time is about 7~ 15 working days;
When we confirmed the order, after we get your deposit, we can start production, we will update the production details in time; Before finish, we will notice you and after we get full payment, we can delivery the goods to you.
About the time from start port to destination, that depends on the distance and the state of the sea company or airport company

4. What's the difference of DIP(1R1G1B) and DIP(3 in 1) ?


DIP(One LED, 3 in 1) LED Display, one pixel has one LED lamp, 3 led chips in one LED Lamp;
Traditional DIP( 1R1G1B) use 3 LED Lamp in one pixel.

5. How I can make payment?

We support T/T, West Union and so on.
And about payment, we need you pay us 30% as deposit, for the rest part, before delivery.
