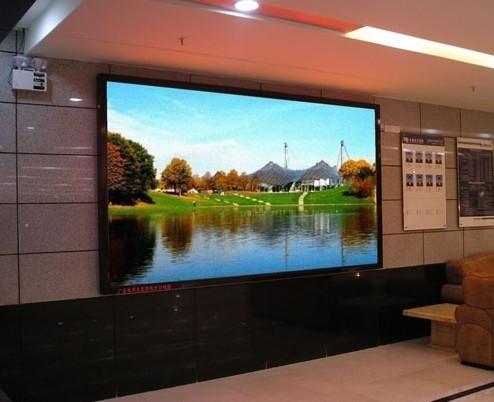

Full color indoor P610HD LED video display screen
Indoor Full Color LED Display Function:
1. Excellent visual effect, better viewing effect for text and graphic or video
2. Large viewing angle,both H/V can reach 110 degree;getting vivid effect within any position of the viewing range;
3. High contrast ratio and good evenness, high uniformity,without mosaic
4. Resist of the high temperature and antioxidation and anti-statiic;
5. Any led in each pixel can be respectively replaced, which reduce the cost of the display maintaince.
6. Long using life & MTBF
Application:
Widely used in Advertising media,Concert, TV SHOW,Super mall, Entertainment,School,Government,Trading conversation,Commodity fair,Exhibition,Cinema,News conferences, Meeting room,Airport,Hotel,Station Hall and other Public Places.
Specifications:
Main Technical Parameters for Indoor Series | |

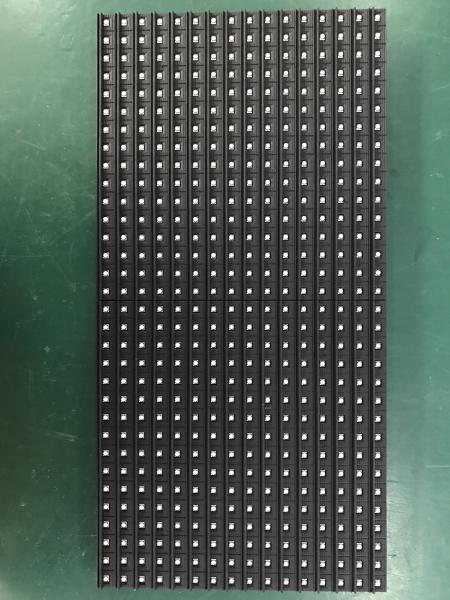

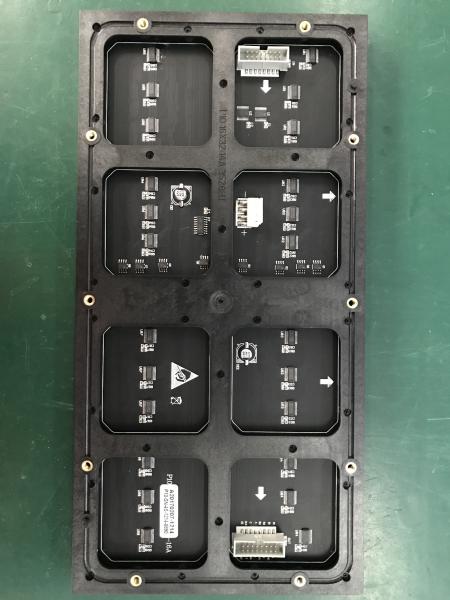

Model | P10 |
Pixel Pitch(mm) | 10 |
Physical Density(dot/m²) | 10,000 |
LED Configuration | 1R1G1B |
LED Type | SMD3528 |
Model Size(mm*mm) | 320 x 160 |
Module Resolution( W*H) | 32x 16 |
Drive Mode | 1/4 scan |
Brightness(cd/m²) | ≥2000 |
Max Power Consumption(W/ m²) | 750 |
Average Power Consumption( W/m²) | 280 |
Cabinet Size(mm*mm) | 960 x 960 |
Cabinet Resolution(W*H) | 96 x 96 |
Mini. View Distance (m) | 10 |
View Angle(deg.) | Horizontal≥110℃,Vertical≥70℃ |
Grey Scale | ≥16 bits |
Refresh Rate( Hz) | ≥960 |
MTBF | >10,000 hours |
Life Span | ≥100,000 hours |
Working Input Voltage | AC220V/50Hz or AC110V/60Hz |
Module Display Brightness Uniformity | <2% |
Earth Leakage Current | <3mA |
Temperature-operating | -20℃~60℃ |
Humidity-operating | 10%~95% |
Operating System | Windows98/me/2000/NT/XP/W8/Vista/W7 |
FAQ:
1. Can you assign engineer to our site to guide the installation if we require?
Yes. We have qualified and experienced engineers who are ready to service for you.
2. How about your warranty and after-sale policy?
Two years warranty is free..
We provide 24 hour phone answering service and real-time remote control service if you have any problem with our led screen.
3. How long time I can get the cargos after placing the order ?
Our production time is about 7~ 15 working days;
When we confirmed the order, after we get your deposit, we can start production, we will update the production details in time; Before finish, we will notice you and after we get full payment, we can delivery the goods to you.
About the time from start port to destination, that depends on the distance and the state of the sea company or airport company
4. What's the difference of DIP(1R1G1B) and DIP(3 in 1) ?
DIP(One LED, 3 in 1) LED Display, one pixel has one LED lamp, 3 led chips in one LED Lamp;
Traditional DIP( 1R1G1B) use 3 LED Lamp in one pixel.
5. How I can make payment?
We support T/T, West Union and so on.
And about payment, we need you pay us 30% as deposit, for the rest part, before delivery.
