Specifications
Brand Name :
ABT
Model Number :
P3
Certification :
FCC,CE,UL,ROSH,ISO9001
Place of Origin :
Shenzhen,China
MOQ :
1square meter
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1500square meter/month
Delivery Time :
7-15days
Packaging Details :
wooden case;flight case
Module size :
192*96mm
name :
indoor full color LED screen
Led type :
SMD2121
Brightness :
3000cd/sqm
Tube chip color :
full color
Screen dimension :
Customized
Description

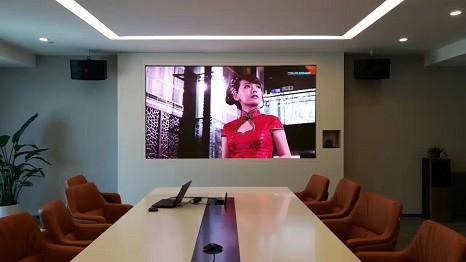

Indoor SMD P3 full color led display

Product Description


Advantage:

1. High brightness Contrast:4000:1, which is a very high level to ensure a vivid image of our LED display screen system
2. First-class LED chip: Supplied by Cree & other high strictly selected LED chip to ensure the long lift-time and high brightness of our LED display screen system
3. Clear vivid image quality even in direct, full-on sunlight to ensure you attracts more audience to get short ROI of your LED display screen's investment.
4. Long-term Brightness:More 7000-nit brightness(for outdoor full color)(2000 nits brightness for indoor full color)capacity throughout product lifetime of the LED display screen.
5.Easy Installation & Using: easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system

Specifications:

Item Specification
Size 192*96mm
Resolution rate 64*32
Density 11111dots/m2
White balance luminance 1000-2500cd/m2
Color temperature 6500
Horizontal view angel 140
Vertical view angel 120
Protection grade Before/after: IP43
Non-Flatness <1mm
Module interval <1mm
Driving method 1/32
Maximal power/m2 750W
Frame frequency ≥60Hz/s
Refresh frequency 1920-3840Hz
Gray grade 16bits, 65536level
Luminance adjusted 256 grade by auto-optic/color &8 grade by hand
Input signal RF,S-video,RGB,RGBHV,YUV,YC&Composition,etc
MTBF >5000h
Life-span >100000h
Speckles rate <0.0001

After-Sales Service


1) Training after order
After the order is placed, a processional training will be offered, including software use, operate safety, maintain equioment.

2) Installation and debugging
We could send professionals to conduct on site installation and debugging in strict.

3) Warranty
Warranty: 2 years warranty, lifetime maintenance equip with free spare parts. The first 2 years after shipment, we will be responsible for free maintenance if any problem caused by quality itself. While you should take the cost of the freight to us. After 2 years, service is still available, but would charge for labor, material and freight cost that generates.

4) Maintenance
Maintenance principles: response in time, solve problems asap and ensure the use.
Maintenance period: In the maintenance period of the led display body, free of all maintenance charges.
After maintenance period, only charge the material cost and labor cost.

5) service
Your inquiry ralated to our products or price will be replies in 24hours.
OEM&ODM. any your customized lighting we can help you to design and put into product.
Distributorship are offered for your unique design and some our current models.
Protection of your sales area, ideas of design and all your private information.
Top Quality+Reasonable Price+Responsible After Service=Successful&Win
