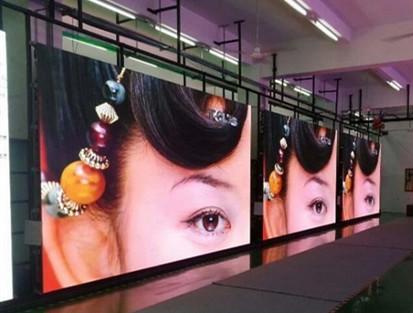

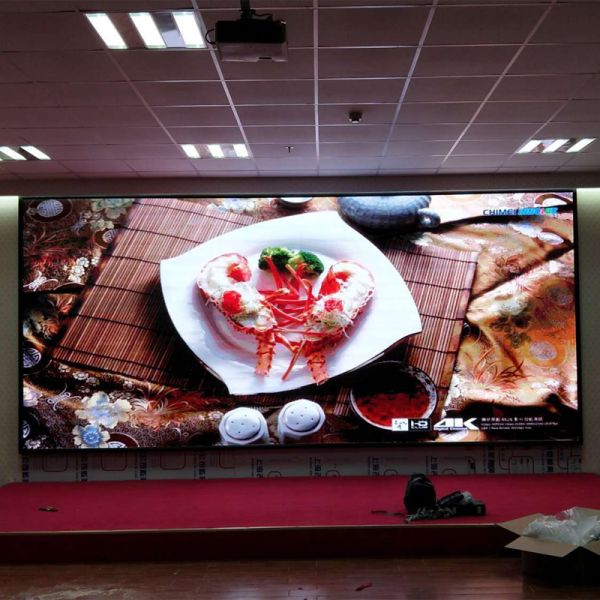

P2.5 indoor SMD full color LED video wall price for advertising led screen
Features of High-Mini-Pitch HD P2.5 Full Color Led video wall/led screen:
1. High quality LED chip and high anti-static electricity capacity.
2. Large viewing angle and smooth displaying provide excellent visual effect from every angle.
3. The integration of lamp and driving IC,together with with the multi-circuit structure, achieves evenly-distributed current,low power consumption and fast heat dissipation.
4. Ultra high brightness,low attenuation,high reliability and weather ability.
5. High contrast ratio. Adopting black lamps can improve the contrast ratio by 50%.
6. High refresh rate, high gray scale,ghost-canceling, low power consumption, low EMI, anti-creeping, multi-route redundancy backup-supporting,and dot-by-dot-calibration.
Application scopes of High-Mini-Pitch HD P2.5 Full Color Led video wall/led screen: Widely applied to traffic information distribution of station, quay and airport, conference room, shoppingmall, brand presentantion, TVstation, stageshow, concert and so on.
Parameters
Specifications of LED modules | |||
Technical parameters | UNIT | Parameters values | |
Pixel pitch | MM | 2.5 | |
Panel size | MM | L160*H160*T13 | |
Physical density | /M2 | 160000 | |
Pixel configuration | R/G/B | 1,1,1 | |
Driving method |
| 1/32 Constant current 1/32scan | |
LED Encapsulation | SMD | 2121 | |
Display resolution | DOTS | 64X64=4096 | |
Module weight | KG | 0.19 | |
Module port |
| HUB-HD01 | |
Module working voltage | VDC | 5 | |
Module consumption | W | 35 | |
Specifications of cabinet | |||
Viewing angle | Deg. | 140° | |
Option distance | M | 2-30 | |
Driving device |
| 2016/5020 | |
Every square meter module | PCS | 39 | |
Maximum power | W/ M2 | 1400 | |
Frame Frequency | HZ/S | ≥60 | |
Refresh frequency | HZ/S | ≥1920 | |
Equilibrium brightness | CD/ M2 | ≥1800 | |
Working environment temperature | 0C | -10~60 | |
Working environmenthumidity | RH | 10%~90% | |
Display working voltage | VAC | AC46~54HZ,220V±15%/110V±15% | |
Color temperature |
| 8500K-11500K | |
Gray scale/color |
| ≥16.7M color | |
Input signal |
| RF S-Video RGB etc | |
Control system |
| PCTV nonlinearity card, DVI display card,Linsn control system | |
Mean free error time | HOURS | >5000 | |
Life | HOURS | 100000 | |
Lamp failure frequency |
| <0.0001 | |
Antijam |
| IEC801 | |
Safety |
| GB4793 | |
Resist the electricity |
| 1500V last 1min No breakdown | |
Steel box weight | KG/ M2 | 40(standard steel box) | |
Earth leakage current | mA |
| |
IP rating |
| The back IP40,The front IP50 | |
Steel box size | mm | L640Xh640x80 |
Our Service
1. Pre-sales service :
Our team design and make solutions based on different requirements from different customers, what you think is what we can do.
2. After-sales services:
1). We provide customer service through Skype, phone or email, supply you video or drawing to solve problems.
2). We provide remote control service through internet to achieve real time service, which will short time of solving problems.
3). We provide professional engineer one-to-one to keep fastly reply.
3. Installation Service:
1). We provide detailed CAD drawing to customer for preparing metal structure.
2). We could dispatch our engineer to your place , guide installation and free training.
3). Special designs have special solutions; we will make perfect solutions to satisfy all customers' requirements.
FAQ:
1. Are you factory?
Yes, we have very rich experience in production and development. you will got better service and delivery on time.
2. How is your delivery time?
We delivery as contract on time, All kinds of led module have in stock. We will be fine as compensation.
3. What is your products packing?
We provide 3 kinds of packing case: carton paper case,wooden packing case and flight packing case.
Carton paper case for led module
Wooden packing case for heavy iron cabinet
Flight packing case for rental aluminum die-casting cabinet
4. Quality gurantee:
Life span of LED display screens is more than 100,000 hours
All our LED displays have CE,FCC,RoHS certificates.
5. Prompt &Professional service :
Any inquires will be replied within 24 hours in working days and you’ll get helpful suggestions from us.
