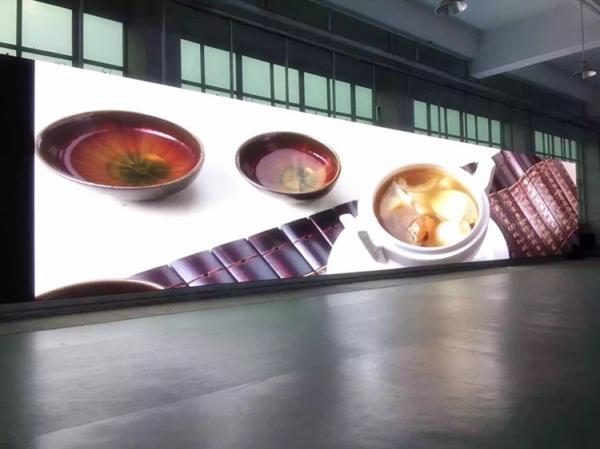

high definition indoor p3 led screen full color led display
Product Description
1>. SMD3-in-1 technology is used for indoor LED Display.
2>. Wide view angle: 140 in horizontal and 140 in vertical.
3>. Special design and advanced SMT technology improves the heat dissipation.
4>. With high refresh rate Controller, guarantee that no scan line when taking photos.
5>. Regular shape and special shape ( such as curve, round ) can be designed.
6>. High color uniformity and clear image can bring you a vivid audio visual effect.
7>. Uses real pixels rather than virtual pixels, better viewing effect.
Indoor Fixed Installation LED Display | ||
LED Module | Pixel Pitch (mm) | P3 Indoor |
Pixel configuration | SMD 2121 | |
LED lamp | Nation Star/Epistar/Kinglight | |
IC | MBI 5124 / MBI 5153 | |
Scan | 1/32 S | |
Module size | 192*192mm | |
Module resolution (pixel) | 64*64 pixel | |
Pixel density (dots/m2) | 111111 | |
LED Cabinet | Cabinet size (W*H) | 576*576mm |
Cabinet resolution (W*H) | 192*192 | |
Cabinet material | Iron / Aluminum | |
Cabinet weigt (KG) | Iron : 40kg/m2 Aluminum : 30 kg/m2 | |
Controller | Controller card | Nova Star /Linsn /Colorlight |
Control Method | Synchronization /Asynchronization control | |
LED Screen | Normal Display Area (W*H) | 8*6m |
Normal Display Pixel (W*H) | 2688*1920 | |
Parameter | Brightness(cd/m2) | 1000-3000cd/m2 |
Best viewing distance | 3-20 m | |
Viewing angle | 160° W ; 140 °H | |
IP grade | IP43 | |
Life span | 96,360 hours | |
Working Voltage | AC 220V/110V±10% | |
Input Power Frequency | 50/60Hz | |
Defect Rate | ≤0.0001 | |
Maintenance mode | front/back | |
Average power consumption | 450 W / m2 | |
Max power consumption | 800 W / m2 | |
Operating Temperature | –30℃~+60℃ 10%~95%RH | |
Signal Input | HDMI, DVI, VGA, RF, S-Video, RGB, RGBHV, YUV, YC&Composition, etc. | |
Control Distance | 120 m (no repeating); Optical fiber transmission: 500m- 10km | |
Systems Operating Platform | WINDOWS(WIN2000/ WINXP/WIN7/WIN8/WIN10) |
FAQ:
1. Can you assign engineer to our site to guide the installation if we require?
Yes. We have qualified and experienced engineers who are ready to service for you.
2. How about your warranty and after-sale policy?
Two years warranty is free..
We provide 24 hour phone answering service and real-time remote control service if you have any problem with our led screen.
3. How long time I can get the cargos after placing the order ?
Our production time is about 7~ 15 working days;
When we confirmed the order, after we get your deposit, we can start production, we will update the production details in time; Before finish, we will notice you and after we get full payment, we can delivery the goods to you.
About the time from start port to destination, that depends on the distance and the state of the sea company or airport company
4. What's the difference of DIP(1R1G1B) and DIP(3 in 1) ?
DIP(One LED, 3 in 1) LED Display, one pixel has one LED lamp, 3 led chips in one LED Lamp;
Traditional DIP( 1R1G1B) use 3 LED Lamp in one pixel.
5. How I can make payment?
We support T/T, West Union and so on.
And about payment, we need you pay us 30% as deposit, for the rest part, before delivery.
