Specifications
Brand Name :
ABT
Model Number :
P3
Certification :
FCC,CE,UL,ROSH,ISO9001
Place of Origin :
Shenzhen,China
MOQ :
1square meter
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1500square meter/month
Delivery Time :
7-15days
Packaging Details :
wooden case;flight case
Module size :
192*192mm
Driving mode :
constant driving 1/32
Led type :
SMD2121
Brightness :
3000cd/sqm
Tube chip color :
full color
Screen dimension :
Customized
Description

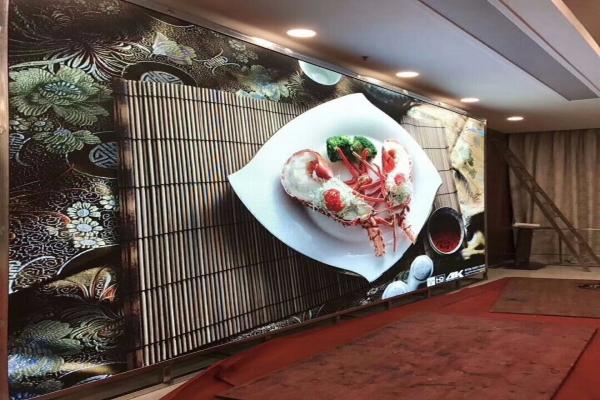

HD led video wall full color indoor p3 rental led display

Product Description

1. High bright 3 in 1 LED SMD lamps with best plastic package suite are not easy to be damaged and ensures the best viewing angle.

2. Constant current chip driving reduces the power consumption and prompts the stability,Simple modular design is low cost and easy to maintain.

3. Can undertake single point,single lamp maintenance,the cost is low.
4. Neat appearance,light weight,small size and safe 5V low voltage power supply system all make the module more attractive.

5. Due to its locating holes and 4 in bracket design,it can be used on indoor big screen.

6. Besides,high definition effect comes with uniform luminance and soft color is suitable for indoor close range viewing.
7. Temperature: −20℃----†50℃.Humidity:≤90%.MTBF:≥10,000 hours.Lifespan:≥50,000 hours.Defective Dot Rate: <0.0002.

Product Parameters
Pixel Pitch 3mm
Pixel Density 111111dots/sqm
Color Configuration 1R1G1B
LED Package SMD2121
Module Size 192mm x 192mm/192mm x 96mm
Module Resolution 64dots x 64dots/64dots x 32dots
Drive Mode 1/32 Scan
Standard Cabinet Size 576mm x 576mm
Cabinet Weight 8KG
Drive IC MBI5124
Brightness ≥2000 cd/sqm
Viewing Distance 3m-30m
Viewing Angle H: 140°; V:120°
Refresh Rate 3840HZ, adjustable by software
Frame Rate 120frame/s
Grey Scale 16.7M colors(Synchronized)
Color Temperature R.G.B brightness 256 level adjustable
Power Input AC110V/ 220V ±10%, 50HZ
Max Power Consumption 1000W/sqm
Ave. Power Consumption 300W/sqm
Storage Temperature -30℃~+70℃
Working Temperature -20℃~+60℃
Blind Spot Rate <1/10000
MTBF >10,000 Hours
Life Span >100,000 Hours
Waterproof Level IP43
Operating Humidity 10%~90% RH
Control Method Synchronous, Asynchronous, 3G,WIFI,USB
Control PC With DVI Graphic card
Operating System Win 98, Win2000, XP, Win7, Win8, Win10
Video Signal Mode RF, S-Video, RGB, RGBHV, YUV, YC etc
Certificate CE, RoHS

Applications

Business Organizations Supermarket, large-scale shopping malls, star-rated hotels, travel agencies
Financial Organizations Banks, insurance companies, post offices, hospital, schools
Public Places Subway, airports, stations, parks, exhibition halls, squares, stadiums, museums,
commercial buildings, meeting rooms, government
Entertainments Movie theaters, clubs, stages

FAQ


1:What is the pixel pitch for indoor rental led display?
A:Outdoor:1.67mm/2.5mm/3mm/3.91mm/4mm/4.81mm/5mm/6mm/10mm and so on

2:What is the warranty of your led display?
A:We offer 2years warranty.and more than 100000 hours screen life span

3:Can it play HD video?
A:Yes,it have HD video function with Novastar controlling system.

4:what is your payment term?How long it takes to delivery?
A:We usually accapt the T/T or L/C.both of them will at least 30% deposit in advance,and the rest of 70% will paid before delivery.The lead time is usually 20 days

5:How can you ensure the led display product quality?
A:Before shippment,all the screens have aging test.and then we also have waterproof test and shake test,ensure products can transportation safety and normal use.

6:What is your pre-sale and post-sale service?
A:For pre-sale service,we have professional sales team and technical team,who are willing to answer your question within 24 hours.
For post-sale service,we will instruct you how toinstallation,how to use,how to change the broken moudles,and we can also send the technicals to your country,in general,our led display will not have a big problem,you can rest assured to buy.

7:How to choose suitable led display?
A:Please offer size about width and height,for outdoor fix led display,it would be more better to offer installation height and viewing distance,we will recommend suitable led display for your project.We will more appreciate you can offer photos of screen location.
