Aluminum Die Casting Cabinet P3 Large LED Display Panels Dimension Customized
Aluminum Die Casting Cabinet P3 Large LED Display Panels Dimension Customized
Specifications
Brand Name :
ABT
Model Number :
P3
Certification :
FCC,CE,UL,ROSH,ISO9001
Place of Origin :
Shenzhen,China
MOQ :
1square meter
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1500square meter/month
Delivery Time :
7-15days
Packaging Details :
wooden case;flight case
Module size :
192*192mm
Driving mode :
constant driving 1/32
Led type :
SMD2121
Brightness :
3000cd/sqm
Tube chip color :
full color
Screen dimension :
LED video screen rental
Description

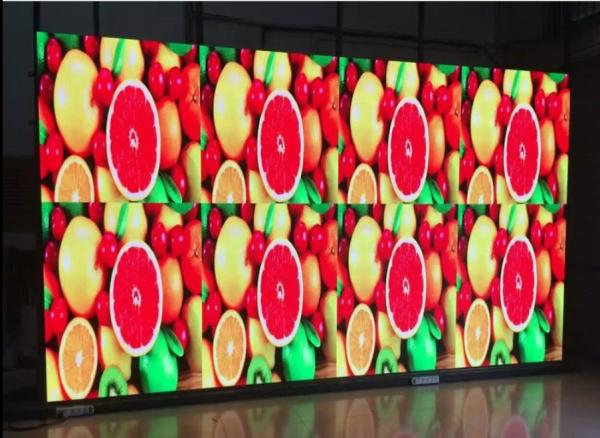

Aluminum die casting cabinet large p3 indoor rental led screen display

Product Description

Famous Brands Raw Material Selection


1) LED: well-known international brand,with wide viewing angle ,little attenuation ,good heat dissipation, and vivid colors.
2) Driving IC: famous brands such as, Taiwan MBI, Japanese Toshiba, avoidable the defective
phenomena, such as dark bright, virtual light and so on.
3) Power supply: industrial-strength brand.The power maximum power resere of 20% the space , the range of voltage fluctuation is less 5%, high stability.
4) Connector: Aerial grade brands ensure the stable transmission of power and signal.
5) PCB Board: adopt 4-layer design.
6) Easy installation:100 pieces of cabinets' installation can be finished in one hour by one person.
The replacement of any cabinet can be done within 50 seconds.

Product Parameters
Model Number
P3
Description
Die-casting Aluminum cabinets with hanging function
Application
Indoor use, AV rental
Pixel configuration
SMD2121
Pixel pitch
3mm
Cabinet pixel resolution
192*192 pixels
Cabinet dimension
W: 576mm, H: 576mm
Module size
W: 192mm, H: 192mm
Module pixel resolution
W 64x H 64pixels
Pixel density
111111dots/sqm
Minimum viewing distance
3 m
Brightness
1200nits
Display Mode
Synchronous with video source
Driver IC
MBI5124
LED drive
1/32scanning, constant current
Power Consumption
Max:900 w/SQM; Average : 400w/SQM
MTBF
> 100.000 hours
Input power cable
AC110V to 220V
Certification
CE, ROHS, FCC
Warranty
2 Years quality warranty is free


FAQ:

1. Are you factory?

Yes, we have very rich experience in production and development. you will got better service and delivery on time.

2. How is your delivery time?

We delivery as contract on time, All kinds of led module have in stock. We will be fine as compensation.

3. What is your products packing?

We provide 3 kinds of packing case: carton paper case,wooden packing case and flight packing case.

Carton paper case for led module

Wooden packing case for heavy iron cabinet

Flight packing case for rental aluminum die-casting cabinet

4. Quality gurantee:

Life span of LED display screens is more than 100,000 hours

All our LED displays have CE,FCC,RoHS certificates.

5. Prompt &Professional service :

Any inquires will be replied within 24 hours in working days and you’ll get helpful suggestions from us.
