P10 Stadium Perimeter LED Display SMD 3535 Waterproof IP65 ISO 9001 Approved
P10 Stadium Perimeter LED Display SMD 3535 Waterproof IP65 ISO 9001 Approved
Specifications
Brand Name :
ABT
Model Number :
P10
Certification :
FCC,CE,UL,ROSH,ISO9001
Place of Origin :
Shenzhen,China
MOQ :
1square meter
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1500square meter/month
Delivery Time :
7-15days
Packaging Details :
wooden case;flight case;Carton
Module size :
320*160mm
Driving mode :
constant driving 1/2
Led type :
SMD3535
Brightness :
7000cd/sqm
Tube chip color :
stadium LED display
Screen Demension :
Customized
Description

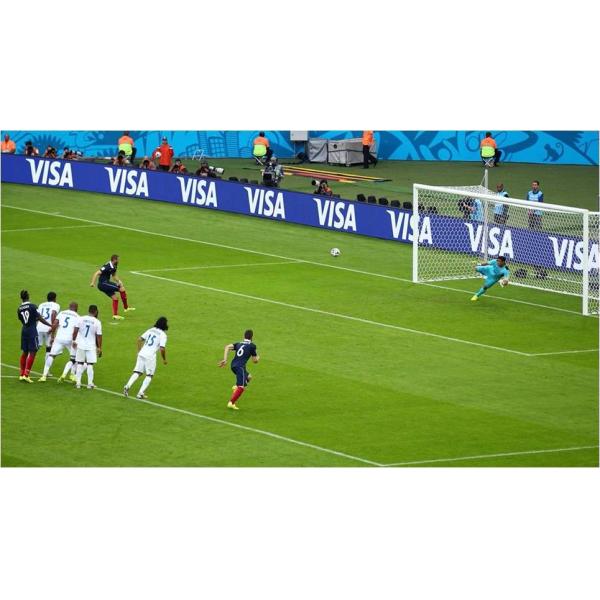

Outdoor P10 Perimeter LED Display For Football Field Advertising

Product Features and advantages:

1, According with International sport competition standard,meet UEFA stadium standard requirement,TUV-EMC certificated,used in different sport events.

2, The cabinets with special simple designs plus quick connection button between cabinets,making them convenient to install and disassemble

3, Adjustable angle,flexible angle ensure a best viewing angle,independent groud support,high stability.

4, High resolution,perfect performance,showing wonderful scene,good for advertising.

5, High protection,Waterproof IP65,adapt to different weathers.

Paramters

Module Pitch/mm P10
Module size/mm 320*160
Density of pixel/(dots/m2) 10000dots
Pixel composition 1R1G1B
Led encapsulation SMD3535
Resolution of module 32*16
Screen Optimum viewing distance 10-150m
View angle / ° 120H,120V
Max power consumption 1000W/sqm
Size of cabinet/mm 960X960
Resolution of cabinet 96*96
Driving method 1/4 scan
Refresh rate Hz/S ≥960
Luminance of white balance ≥7000cd/sqm

Operation of Environmental

Temperature/℃

 below 30 to above 50
Protective grade IP65
Working voltage 110-220 VAC/+/- 10%
Grey scale/color 14bits
Brightness adjustment 4096 levels of each color(manually),
100 levels of each color(automatically)
Input signal RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
Control system Linsn / Nova(sending card, receiving cards and Hubs)
Average of non-failure life >10,000h
Life span >100,000h
Functionless dot rate <0.0001

P10 Stadium Perimeter LED Display SMD 3535 Waterproof IP65 ISO 9001 Approved

After-Sales Service


1) Training after order
After the order is placed, a processional training will be offered, including software use, operate safety, maintain equioment.
2) Installation and debugging
We could send professionals to conduct on site installation and debugging in strict.
3) Warranty
Warranty: 2 years warranty, lifetime maintenance equip with free spare parts. The first 2 years after shipment, we will be responsible for free maintenance if any problem caused by quality itself. While you should take the cost of the freight to us. After 2 years, service is still available, but would charge for labor, material and freight cost that generates.
4) Maintenance
Maintenance principles: response in time, solve problems asap and ensure the use.
Maintenance period: In the maintenance period of the led display body, free of all maintenance charges.
After maintenance period, only charge the material cost and labor cost.
5) service
Your inquiry ralated to our products or price will be replies in 24hours.
OEM&ODM. any your customized lighting we can help you to design and put into product.
Distributorship are offered for your unique design and some our current models.
Protection of your sales area, ideas of design and all your private information.
