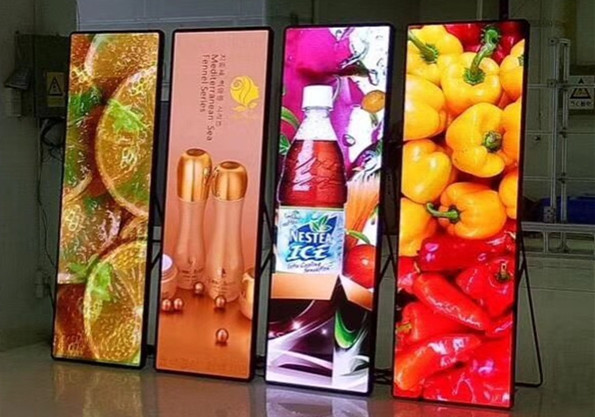

P2 / P2.5 / P3 Wall Poster LED Advertising Box Full Color ISO 9001 Approved
P2 / P2.5 / P3 Wall Poster LED Advertising Box Full Color ISO 9001 Approved
Specifications
Brand Name :
ABT
Model Number :
P2.5
Certification :
FCC,CE,UL,ROSH,ISO9001
Place of Origin :
Shenzhen,China
MOQ :
1square meter
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1500square meter/month
Delivery Time :
7-15days
Packaging Details :
wooden case;flight case
Module size :
160*160mm
Driving mode :
constant driving 1/32
Led type :
SMD2121
Brightness :
3000cd/sqm
Tube chip color :
full color
name :
poster LED display
Description

2018 new product P2,P2.5,P3 wall posterled display

Product Description

We are professional manufacturer

♦ Specialist fabricate led display 7 years.

♦ Quality guarantee(have own factory).

♦ After-sales service is guarantee.

♦ Quick delivery.

Specification

Parameter name Product parameter
Module composition Pixel structure SMD1515 3in1 LED
Pixel pitch(mm) 2mm
Module resolution(W×H) 128W×64H
Module size(mm) 256mm(W)×128mm(H)
Module weight(kg) 0.46kg
Module maximum power consumption(W) 25W
Displaycomposition The number of module in display(W×H) 4W×7H
Resolution 229376 dots
Size(mm) 590.4mm*1870.4mm
Area(m2) 1.1m2
Weight(kg)
Flatness(mm) ≤0.2mm
Maintenance mode Front maintenance
Cabinet formation Aluminum profile
Optical parameters Single point brightness correction Support
Single point chroma correction Support
White balance brightness(nits) ≥1000 nits(Color temperature 6500K)
Color temperature(K) 2000—9300K( Adjustable)
Viewing angle Horizontal:160°
Vertical:120°
Glow point deviation <3%
Brightness / Chroma uniformity ≥97%
Contrast 4000:1
Electrical parameters Peak power consumption(W/m2) 650W
Average power consumption(W/m2) 200W
Power supply requirements AC90~264V,frequency 47-63(Hz)
Security characteristic GB4943/EN60950
Processing performance Frame rate(Hz) 50&60
Drive mode Constant current driver,1/32 scan,LD2038IC
Gray level 16384
Refresh rate(Hz) ≥1920Hz
Color processing bits 16bit
The module comes with power-down storage function

Keep brightness, chroma correction data, module parameters
Video playback capability 2K HD Ultra-high-definition screen 4K

Use parameters

 Life span(hrs) 50,000H
Operating temperature / humidity range(℃/RH) -10 – 40 / 10%-80%RH(No condensation)
Storage temperature / humidity range(℃/RH) -20 – 60 / 10%-85%RH(No condensation)
Applicable standards CCC,

P2 / P2.5 / P3 Wall Poster LED Advertising Box Full Color ISO 9001 Approved

FAQ:

1. Can you assign engineer to our site to guide the installation if we require?


Yes. We have qualified and experienced engineers who are ready to service for you.

2. How about your warranty and after-sale policy?


Two years warranty is free..
We provide 24 hour phone answering service and real-time remote control service if you have any problem with our led screen.

3. How long time I can get the cargos after placing the order ?

Our production time is about 7~ 15 working days;
When we confirmed the order, after we get your deposit, we can start production, we will update the production details in time; Before finish, we will notice you and after we get full payment, we can delivery the goods to you.
About the time from start port to destination, that depends on the distance and the state of the sea company or airport company

4. What's the difference of DIP(1R1G1B) and DIP(3 in 1) ?


DIP(One LED, 3 in 1) LED Display, one pixel has one LED lamp, 3 led chips in one LED Lamp;
Traditional DIP( 1R1G1B) use 3 LED Lamp in one pixel.

5. How I can make payment?

We support T/T, West Union and so on.
And about payment, we need you pay us 30% as deposit, for the rest part, before delivery.
