Gas Station LED Gas Price Signs / LED Digital Number Outdoor Waterproof IP65
Gas Station LED Gas Price Signs / LED Digital Number Outdoor Waterproof IP65
Specifications
Brand Name :
ABT
Model Number :
Gas price signs
Certification :
FCC,CE,UL,ROSH,ISO9001
Place of Origin :
Shenzhen，China
MOQ :
one set
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1500square meter
Delivery Time :
7-15days
Packaging Details :
wooden case
Screen size :
Customized Size
Color :
white / red / green / yellow
Operation :
Remote contro & button
Installation :
hanging / mounting
Frame :
Steel with painting
Function :
gas price display
Screen dimension :
Customized
Description

led gas station price sign led digital number

Product Function description
1) RF remote control ( 150 M distance ) to control the price
2) Computer communication RS 232 / RS 485 / TCP
3) MODBUS Communication protocol
4) Highlight LED display
5) Automatic brightness adjustment with sensor
6) AC 110 V - 220 V, DC 12 V
7) Power Supply: With UL & CE
8) Can install into 12 V or 24 V battery

Fuel price display boards Technical Specifications

Item

Technical Specifications

Color

Red, amber, green, blue or white optional.

Digital Height

6'', 8'', 10'', 12'', 16'', 18'', 20'', 24'', 27'', 32'', 36'', 40'', 48'', 60'', 73'' etc.

Digital Design

6'', 8'', 10'', 12'', 16'', 18'', 20'', 24'', 27'', 32'': standard digit.

Brightness Control

Auto-dimming by sensor or remote control.

Display Dimming

Over 8 levels of automatic intensity adjustment.

Viewing Angle

120(H)/40(V)

Maintenance

front side or back side

Master/ Slave

Single/ Double/ Three/ Four sides, use one control card, all working. Or customized.

Casing Material

Steel, Aluminum available.

Front Cover

Displays with 32'' & over digit high are without front cover; Others with front cover.

Waterproof Level

IP 54 from 4'' to 32'' Outdoor, IP 65 front & IP 54 rear from 32'' to 72'' Outdoor.

Temperature Sensor

Default economical sensor, All sensor is available for more exact request.

LED Driving mode

Constant Current

Power Input

110/220VAC, 60Hz/50Hz

PC Communication

Available in RF/LCD/RS232/TCP/IP

Communication

8m

Remote control type

300ft/ 100m, range of RF remote control.

Continuous Working Time

Unlimited

Lifetime of LEDs

>100,000hours

Installation Method

Hanging, mounting or per custom design

Working Temperature

Indoor: -11 ℃~40 ℃, Outdoor: -20 ℃~60 ℃, Humidity:15%~95%RH

Display Format

8.88,8.888, 8.889, 8.88 9/10 etc

Name

led price board pylon signs

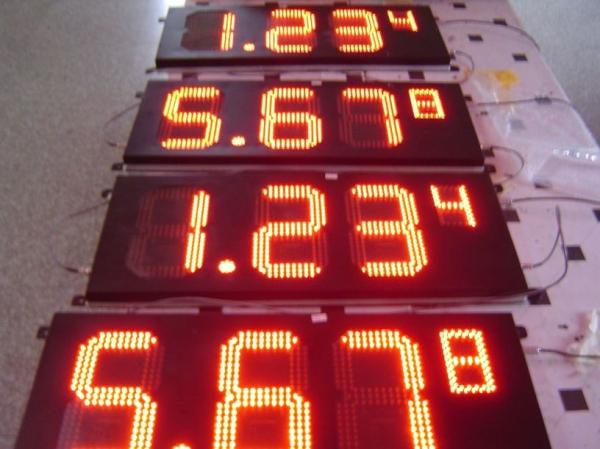

Detailed Images
Gas Station LED Gas Price Signs / LED Digital Number Outdoor Waterproof IP65

After-sale service


1. Our products have two years warranty service ,lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. We offered training to our customer who includes operating and maintenance of our products.
4. In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.
