Specifications
Brand Name :
ABT
Model Number :
P3.91
Certification :
FCC,CE,UL,ROSH,ISO9001
Place of Origin :
Shenzhen,China
MOQ :
1square meter
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1500square meter/month
Delivery Time :
7-15days
Packaging Details :
wooden case;flight case
Module size :
250*250mm
Driving mode :
constant driving 1/16
Led type :
SMD2121
Brightness :
3000cd/sqm
name :
indoor rental LED display
Screen dimension :
Customized
Description

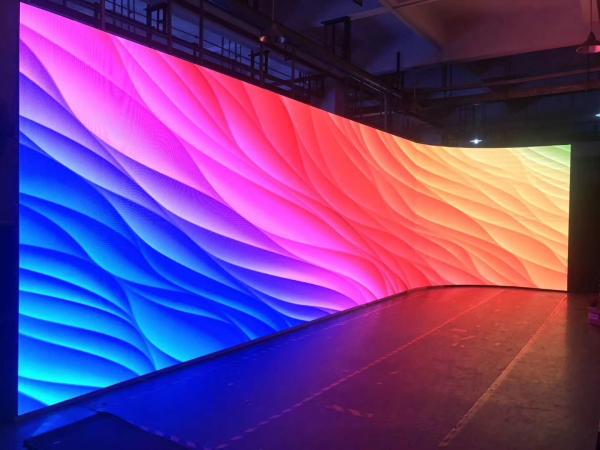

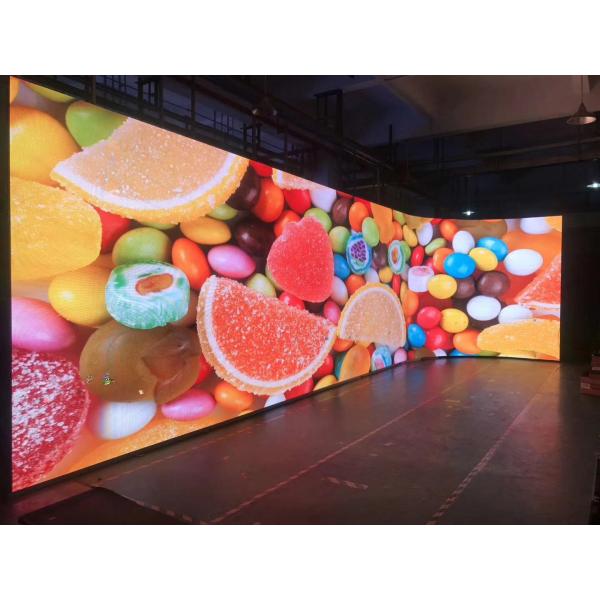

Full color SMD indoor p3.91 rental led curve display for stage/Events

Product Description

Super slim P3.9 rental indoor led display, P3.91 smd led video display big screen wall for stage

1)High cost performance.
2) Good Consistency and High resolution.
3)High brightness and refresh rate .
4)Good after-sale services.
5)In the premise of guaranteeing quality,our company sales at low profit and warranty for 3 years.

Appication

The Indoor LED Video Wall is highly usable at indoor places like malls, stages, chain stores, hotels, public buildings, bars, restaurants, etc. Its thin size and ultra-lightweight module makes it easy to install at any area without covering much space.

Parameter

ListItemDescription
1Pixel Pitch3.91mm
2Module Size250*250mm
3Pixel Density65536/s.q.m
4Pixel composition1R1G1B
5LED TypeSMD2121
6Module Resolution64*64
7Power Consumption of Module80W
8The Optimum Viewing Distance4~50m
9The Optimum Viewing Angle140°/120°
10Maximum Power Consumption1300W/s.q.m
11Standard Cabinet Size500*500mm
12Cabinet Resolution128*128
12Cabinet Weight8Kg
14Driving ICMBI5124GP
15Driving Method
1/16 Scan Constant Current Driving
16Frame Frequency≥60Hz/s
17Refresh Rate≥1920Hz/s
18White Balance
Luminance(CD/s.q.m)
≥1500cd/s.q.m
19Operating Environment Temperature-20℃—60℃ Optional
20Operating Voltage220V±10% or 110V±10%
21
Grey Scale
Display Colors≥65.7trillion color(Synchronized)
22Brightness Adjustment1024 grades of each color(R.G.B)can be adjusted manually and 16 levels of each color can be adjusted automatically
23
Input Signal
RF,S-Video RF, S-Video, RGB, RGBHV, YUV etc.
24Control SystemPC+ DVI display card+ sent card+ receive card
25Average No Failure Time>5000 hours
26Life-span>100000 hours
27Out-of Control rate<0.0001
28
Transmitting Distance
Internet cable:< 100m

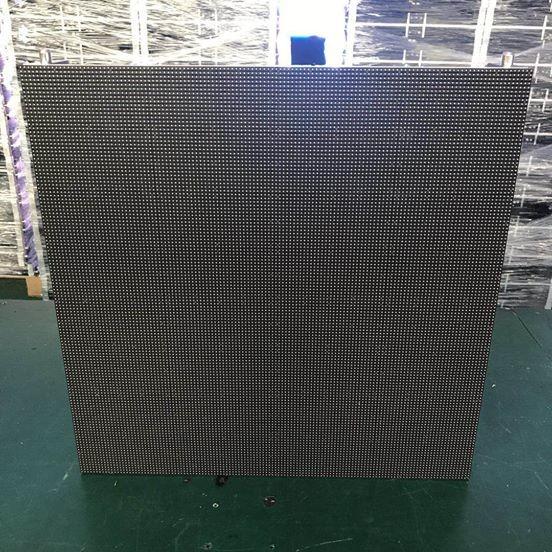

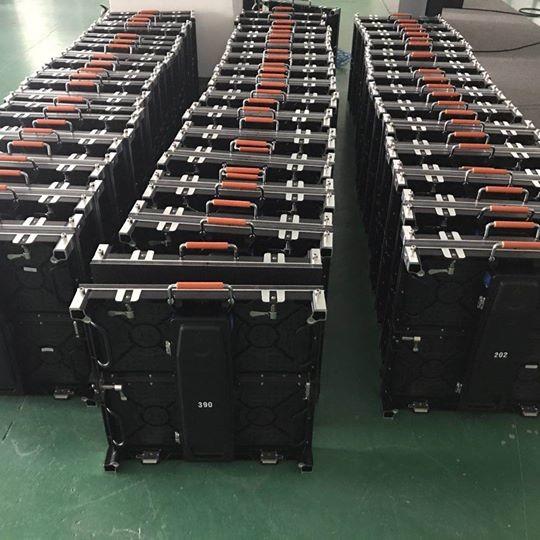

Full Color SMD P3.91 Curved LED Screen / 500*500MM Die Casting Aluminum Cabinet


Trade Terms
1. Packing: Anti-shaking wooden cabinet /Air flight case/carton
2. Shipping port: Shenzhen. China
3. Shipping freights are quoted according to your requests
4. Delivery time:5-25 working days
5. 2 years warranty, lifelong maintaining.
After-sale service
1. Our products have two years warranty service ,lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. We offered training to our customer who includes operating and maintenance of our products.
4. In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.
