P6 P8 P10 P16 Outdoor LED Video Wall , LED Digital Billboards Constant Driving 1/8
P6 P8 P10 P16 Outdoor LED Video Wall , LED Digital Billboards Constant Driving 1/8
Specifications
Brand Name :
ABT
Model Number :
P6
Certification :
FCC,CE,UL,ROSH,ISO9001
Place of Origin :
Shenzhen,China
MOQ :
1square meter
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1500square meter/month
Delivery Time :
7-15days
Packaging Details :
wooden case;flight case
Module size :
192*192mm
Driving mode :
constant driving 1/8
Led type :
SMD3535
Brightness :
7000cd/sqm
Tube chip color :
full color
Waterproof grade :
IP65
Screen dimension :
Customized
name :
p6 outdoor LED display
Description

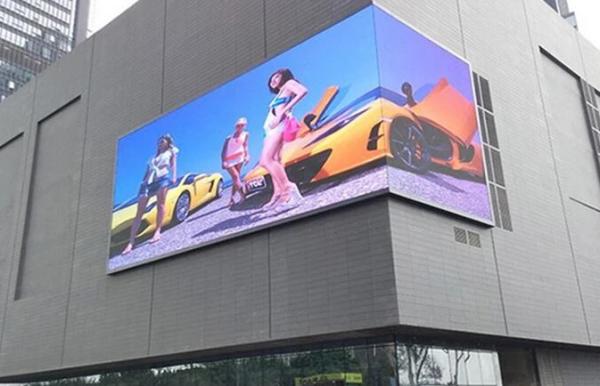

New advertising P6 SMD 3535 full color outdoor led display

Product Advantages:

1. Clear picture without flicker and distortion

2. Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive

3. Low consumption, stable performance, highly durable

4. High brightness & broad viewing angle, brightness can be adjusted automatically or manually

5. 2 years warranty, easy to install & maintenance

6. CE, ROHS, FCC,ISO9001,UL and so on.

Specification

Description Technical parameter of led display indoor
Unit module Module size 192*192mm
Pixel pitch 6mm
Pixel density 27777dots/m2
Pixel configuration 1R1G1B
Led specification SMD
Pixel resolution W:32dots*H:32dots
Cabinet Dimension 768mm*768mm*100mm
Quantities of module 16pcs
Power supply 2pcs
Thermal discharge Fan*2pcs
Total weight 45kg/m2
Best viewing angle 6-300m
Temperature Storage: -35°C~+85°C
Working: -20°C~+60°C
Thickness 10cm can adjustable
Remarks: cabinet size can changed, upon project need.
Power Working voltage AC220V/110V±10%
Average power consumption 100-180W
Max. Power consumption ≤350W/sqm
Current ≤20mA(single LED)
Control system CPU Pentium4 or above
Operating system WIN98/2000/NT/XP
Control method Synchronization
Main technical parameter Driving device 1/8scan
Drive type Constant Current driver IC
Refresh frequency ≥1920Hz
Grey scale/colors 256 levels of each color(R/G/B)/16.7M color
Brightness of white balance More than 6000 cd/sqm
Brightness adjustment 256 levels of each color(R/G/B)by software
Operating ambient humidity 10%--95%
Video signal PAL/NTSC
Control system DVI display card+full color controller card
MTBF ≥10,000hours
Life span ≥100,000hours
Flatness Tolerance of interpixel ≤0.3mm
Tolerance of modules clearance≤0.6mm
Power switch Automatic switch
Display mode 768*768
Communication distance

Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m.

Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10KM
Software LED studio

Our service:

1). Your inquiry related to our products or prices will be replied in 24hrs.

2). Well-trained and experienced staffs to answer all your enquires in fluent English .

3). OEM&ODM, any your customized screen we can help you to design and put into product.

4). Distributoer ship are offered for your unique design and some our current models .

5). Protection of your sales area, ideas of design and all your private information.
