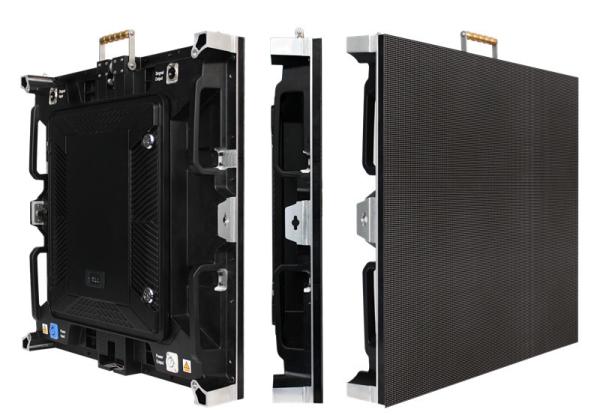

Full Color SMD P3.91Indoor rental led display
1. Excellent visual effect, better viewing effect for text and graphic or video
2. Large viewing angle,both H/V can reach 110 degree;getting vivid effect within any position of the viewing range;
3. High contrast ratio and good evenness, high uniformity,without mosaic
4. Resist of the high temperature and anti-oxidation and anti-static;
5. Any led in each pixel can be respectively replaced, which reduce the cost of the display maintaince.
6. Long using life & MTBF
Application:

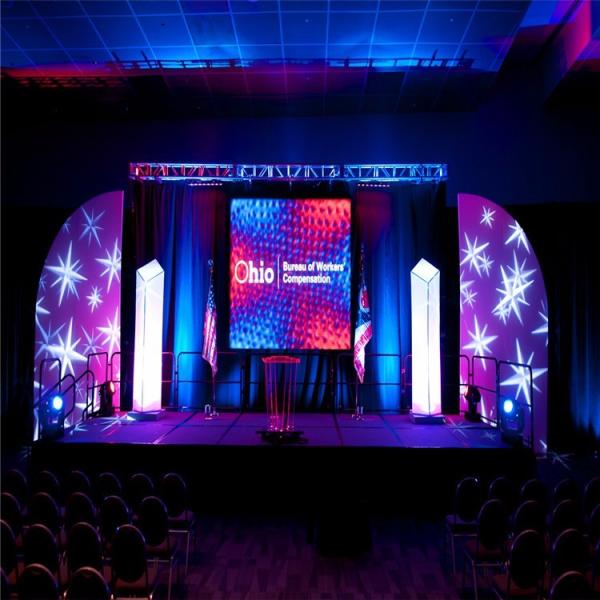

Widely used in Advertising media,Concert, TV SHOW,Super mall,Entertainment,School,Government,Trading conversation,Commodity fair,Exhibition,Cinema,News conferences, Meeting room,Airport,Hotel,Station Hall and other Public Places.
Specifications
No. | Specifications | |
1. | LED | Nationstar |
2. | Physical Pixel Pitch | 3.91mm |
3. | Physical Pixel Density | 65025 (dots/sqm) |
4. | Pixel composition | 1R1G1B |
5. | Moduel Size | 250*250mm |
6. | Moduel resolution | 64*64dots |
7. | Die casting aluminum size | 500*500mm /500mm*1000mm |
8. | Bracket of cabinet | Easy to install and dismantle |
9. | Brightness | ≥ 1500cd/m2 |
10. | Colors | 16.7million |
11. | Viewing angle | Horizontal 140°, Vertical 140° |
13. | Soft Rubber Mask | To protect player and LED display itself . |
14. | Scan frequency | >1800 hz |
15. | Video Frame Rate | ≥150 fps |
16. | Color temperature | 6500°K to 9500°K adjustable |
17. | Control method | synchronous control by PC or Asynchronous control |
18. | Life span( half brightness) | ≥100,000 hours |
19. | Weight | 10-13Kg/pcs |
20. | IP rate | IP54 front |
21. | Average power consumption | 400W/sqm |
22. | Peak power consumption | 800W/sqm |
23. | Input voltage | AC220V/50Hz ±10% or AC110V/60Hz ±10% AC380V/60Hz ±10% |
24. | Operating Environment | Temperature:-20 - +60 Humidity:10%-95%RH |
25. | Operating system | Windows XP/7/8/10 or Mac OS |
26. | Type of video signal | S-video, composite video ,RGB ,VGA ,DVI |
FAQ:
1. Can you assign engineer to our site to guide the installation if we require?
Yes. We have qualified and experienced engineers who are ready to service for you.
2. How about your warranty and after-sale policy?
Two years warranty is free..
We provide 24 hour phone answering service and real-time remote control service if you have any problem with our led screen.
3. How long time I can get the cargos after placing the order ?
Our production time is about 7~ 15 working days;
When we confirmed the order, after we get your deposit, we can start production, we will update the production details in time; Before finish, we will notice you and after we get full payment, we can delivery the goods to you.
About the time from start port to destination, that depends on the distance and the state of the sea company or airport company
4. What's the difference of DIP(1R1G1B) and DIP(3 in 1) ?
DIP(One LED, 3 in 1) LED Display, one pixel has one LED lamp, 3 led chips in one LED Lamp;
Traditional DIP( 1R1G1B) use 3 LED Lamp in one pixel.
5. How I can make payment?
We support T/T, West Union and so on.
And about payment, we need you pay us 30% as deposit, for the rest part, before delivery.
