Specifications
Brand Name :
ABT
Model Number :
P4.81
Certification :
FCC,CE,UL,ROSH,ISO9001
Place of Origin :
Shenzhen,China
MOQ :
1square meter
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1500square meter/month
Delivery Time :
7-15days
Packaging Details :
wooden case , flight case
Product Name :
Stage LED Screens For Events , Outdoor P4.81 Rental LED Display
Driving Mode :
constant driving 1/13
Led type :
SMD1921
Brightness :
4500cd/sqm
Cabinet Size :
500*500mm
Cabinet Resolution :
104*104
Module Size :
250*250mm
Module Resolution :
52*52
Description

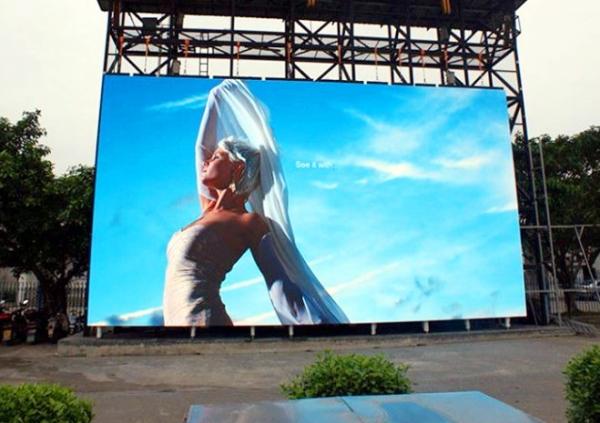

Stage LED Screens For Events , OutdoorP4.81 Rental LED Display

Product Features:

1.Light weight, Good Heat Dissipation, Low Power Consumption, Convenient Installation,
Easy Move;
2.Accurate position of the locating dowel makes the surface between cabinets flat;
3.Made through CNC, Assembly accuracy 0.1mm, Seamless Assembly;
4.No granular spots and mosiac on the screen, High-degree of color coordinates;
5.Clearer and vivider piture, Seamless, No chromatic;
6.Large viewing angle, Soft image, High resolution;
7.Multi-layer circuit PCB, Lower consumption, Fast Heat-emmiting, Longlife, High stability;
8.Aluminum Cabinet, Lighter and Slimmer, High accuracy;
9.Easy to assemble and detach the cabinets;

Specifications:

Pixel Pitch 4.81mm
Pixel Density 43264dots/sqm
Color Configuration 1R1G1B
LED Package SMD1921
Module Size 250mm x 250mm
Module Resolution 52dots x 52dots
Drive Mode 1/13 Scan Constant Current
Brightness >4500cd/sqm
Min. Viewing Distance 4.8m
Cabinet Size 500mm x 500mm
Cabinet Material Die-casting Aluminum
Cabinet Weight 8KG
Viewing Angle H: 120°; V:120°
Grey Scale 16.7M colors(Synchronized)
Color Temperature R.G.B brightness 256 level adjustable
Power Input AC110V/ 220V ±10, 50HZ
Max Power Consumption 1000W/sqm
Ave. Power Consumption 400W/sqm
Storage Temperature -40~+85 degree
Working Temperature -20~+65 degree
Blind Spot Rate <1/10000
MTBF >10,000 Hours
Life Span >100,000 Hours
Waterproof IP65
Operating Humidity 10%~95%
Control System LINSN/NOVA/ As Client Request
Control PC With DVI Graphic card
PC Display Resolution 1280x1024
Operating System Win 98, Win2000, XP, Win7 ,Win8.etc

FAQ

1.How could I know to control LED display?
Fristly ,if we sell screen for you,control system was be set up in sdvance by us;or if you

buy different spare parts (like module,control card,power supply ) from us,we also can set

up control system in advance ,and we can recommend right control card for you .
Second,we can help you set up led screen by teamviewer or send RCG file to you if you can't

finish set up by yourself in your there


2.If any products have problems,how to do?
Firstly,we hope you can perfect products when goods arrive your hands;
Second,All orders will give some free spare parts ,like led lamps or ICs ,you can do some

simple reparing works.If you purchase LED screen,please don't forget to buy samll quantity

module for spare.


3.Every Customer should know:
LED module may have some color difference ,if you order one type product two more times.
If you have any other problems,please feel free to contact US.

Stage LED Screens For Events , P4.81 Rental LED Display is slim and portable with die-casting aluminum of 500*500mm

or 500*1000mm. This LED display is the most popular in rental market now. Available models : P3.91, P4.81, P2,

P3, P6 ,P5,P8,P10,P1.25,P1.56,P1.66.
