HD Seamless Splicing Indoor Outdoor LED Stage Display Screen Panel P2.6 P2.97 P3.91
HD Seamless Splicing Indoor Outdoor LED Stage Display Screen Panel P2.6 P2.97 P3.91
HD Seamless Splicing Indoor Outdoor LED Stage Display Screen Panel P2.6 P2.97 P3.91
HD Seamless Splicing Indoor Outdoor LED Stage Display Screen Panel P2.6 P2.97 P3.91
HD Seamless Splicing Indoor Outdoor LED Stage Display Screen Panel P2.6 P2.97 P3.91
HD Seamless Splicing Indoor Outdoor LED Stage Display Screen Panel P2.6 P2.97 P3.91
HD Seamless Splicing Indoor Outdoor LED Stage Display Screen Panel P2.6 P2.97 P3.91
HD Seamless Splicing Indoor Outdoor LED Stage Display Screen Panel P2.6 P2.97 P3.91
Specifications
Brand Name :
King VisionLed/oem/odm
Model Number :
P3.91 P4.81
Certification :
CE, ROHS, ISO 9001, UL
Place of Origin :
Guangdong, China
MOQ :
8 Square Meters
Price :
$780.00/Square Meters 8-49 Square Meters
Payment Terms :
D/A, D/P, T/T, Western Union, L/C, MoneyGram
Supply Ability :
1000 Square Meter/Square Meters per Month
Delivery Time :
15 working days
Packaging Details :
Flight case:530mmx650mmx1000mm, 6 pcs panels or 8 pcs panels packed in 1 flight case
Application :
Outdoor building / gymnasium / real estate/
Name :
LED Stage Backdrop Screen
Working Environment :
indoor/outdoor
Vertical Viewing Angle(Deg) :
160/160
Support Input :
Composite ,S-Vide ,Component ,VGA,DVI,HDMI,HD_SDI
Refresh Rate(Hz) :
3840hz
Description

FEATURES

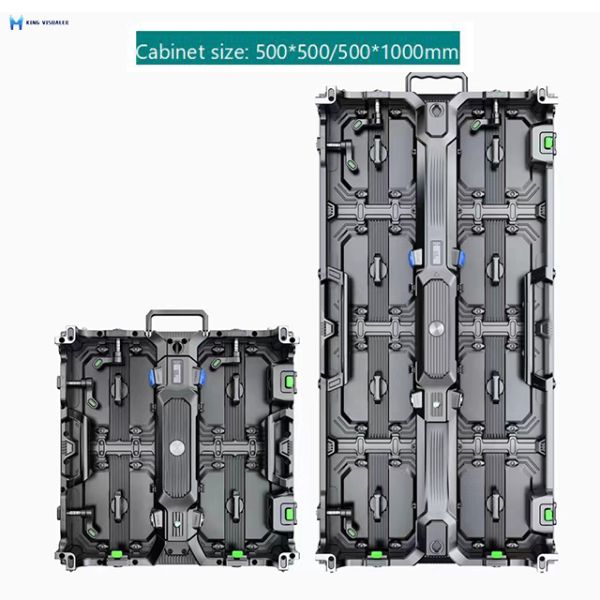

1. High precision die-cast aluminum cabinet, ultra-thin and light weight, 500x1000 ≤ 13KG/cabinet, with a thickness of only 90mm;
2. 500X500/500X1000mm cabinets can be mixed and assembled to create a variety of shapes;
3.Both the 500x500mm and 500x1000mm cabinets use a minimalist mini control box of the same model and can be shared,Saving installation and calibrating time;
4. Optional curved lock, capable of splicing large screens with ± 0-6 ° inner arc, outer arc, 90°corner, etc;
5. The modular button lock design allows for fast assembly, disassembly and maintenance within 5 seconds;
6. Optional magnetic module can achieve complete assembly, disassembly and maintenance of the module and power supply front the front.
7. Work in silence: no fan, noise ≤ 40DB; Not affecting the on-site audio-visual effect;
8. Point by point calibration: White balance point by point calibration to ensure consistency and uniformity of the display;
9. Background large screen optimization plan; High refresh, SLR, camera 1/3000S shutter capture, no flicker, no ghost scanning line;
10.Indoor and outdoor universal pixel pitches with P1.9/2.6/2.9/3.9 ets; Specialized in providing overall LED display solutions for events, conferences, stage, product launches and real estate.
Model P2.6-IN P2.9-IN P3.9-IN P3.9-OD P4.8-OD
Pixel Pitch 2.6 2.9 3.9 3.91 4.81
Pixel Density(dot/m2) 147,456 112896 65536 65536 43264
LED Type SMD2121 SMD2121 SMD2121 SMD1921 SMD1921
Module Size(mm*mm) 250*250 250*250 250*250 250*250 250*250
Cabinet Size(mm*mm*mm) 500*500*73 500*500*73 500*500*73 500*500*73 500*500*73
Cabinet Weight(±0.25kg) 500*1000*73 500*1000*73 500*1000*73 500*1000*73 500*1000*73
Cabinet Resolution(px*px) 192*192 168*168 128*128 128*128/128*256 104*104/104*208
Module Resolution(px*px) 96*96 86*86 64*64 64*64 52*52
Vertical Viewing Angle(Deg) H160/V120 H160/V120 H160/V120 H160/V120 H160/V120
Brightness(cd/m2) 1000 1000 1000 4500 4500
Gray Scale(bit) 16 16 16 16 16
Refresh Rate(Hz) 3840 3840 3840 3840 3840
Max Power Consumption(W/sqm) 400 400 400 700 700
Average Power Consumption(W/sqm) 120 120 120 210 210
Input Voltage(V) AC 100-240 AC 100-240 AC 100-240 AC 100-240 AC 100-240
Ingress Protection IP43 IP43 IP43 IP65 IP65
Working Environment Indoor Indoor Indoor Outdoor Outdoor

HD Seamless Splicing Indoor Outdoor LED Stage Display Screen Panel P2.6 P2.97 P3.91

HD Seamless Splicing Indoor Outdoor LED Stage Display Screen Panel P2.6 P2.97 P3.91

HD Seamless Splicing Indoor Outdoor LED Stage Display Screen Panel P2.6 P2.97 P3.91

HD Seamless Splicing Indoor Outdoor LED Stage Display Screen Panel P2.6 P2.97 P3.91

FAQ

Q1: What is your products packing?

A1: We provide 3 kinds of packing case: carton paper case, plywood packing case and flight packing case. Carton paper case for led module. Wooden packing case for fixed installation cabinet. Flight packing case for rental cabinet.

Q2: What about a cheaper price?

A2: As you know we are a factory, so the price we offer you is reasonable, and we must make sure good quality. You can compare the price to other suppliers if in all the same product, but if your quantity is large indeed, we can also consider very less profit for your long time cooperation with us to make co-win.

Q3: Do you provide onsite assistance?

A3: Yes, our trained professional is available during your event to install, dismantle and support.



4. WHAT IS THE PAYMENT TERMS?
30% deposit by TT, 70% balance before shipment.
