Small Portable Led Curtain Screen Panel P16.67mm Front Service
Small Portable Led Curtain Screen Panel P16.67mm Front Service
Small Portable Led Curtain Screen Panel P16.67mm Front Service
Small Portable Led Curtain Screen Panel P16.67mm Front Service
Small Portable Led Curtain Screen Panel P16.67mm Front Service
Small Portable Led Curtain Screen Panel P16.67mm Front Service
Specifications
Place of Origin :
Guangdong, China
Model Number :
P16.67
Brand Name :
King VisionLed
Packaging Details :
Flight case:530mmx650mmx1000mm, 6 pcs panels or 8 pcs panels packed in 1 flight case
Supply Ability :
1000 Square Meter/Square Meters per Month
MOQ :
6 Square Meters
Price :
$720.00/Square Meters 6-49 Square Meters
Certification :
CE, CCC, Rohs, FCC ISO
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Delivery Time :
15 working days
Pitch :
P16.67mm
Function :
Stage,church led,conference,fashion show,live concerts
Type :
LED Curtain Screen
Size :
500x1000mm
Weight of Cabinet :
15KG/Pieces
Brightness :
7000nits
Description
LED Curtain Screen 500x1000mm Front Service Super Slim Lightproof Outdoor Screen

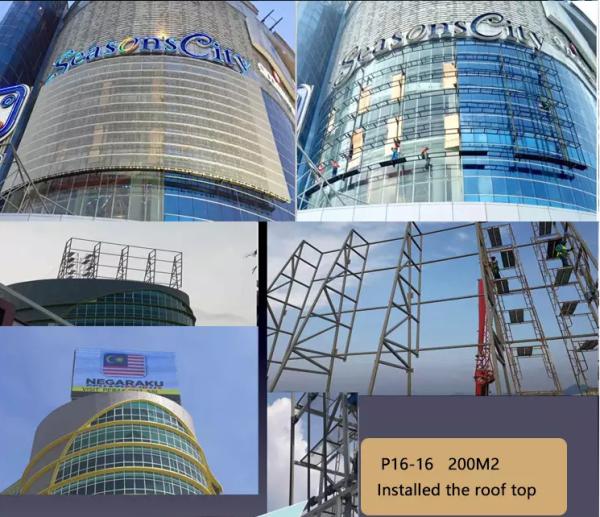

DIP Mesh Screen is designed for outdoor fixed installation, which is widelly used on outside of building, highway advertising etc. Compared with traditional type, Galaxy series is more light and slim, front and back service, save cost on structure and labor cost.

LED Curtain Screen Features

1. Customizable: size and color is customizable based ondetail project.

2. Modularized: Modularized design, quickly assemble.

3. Adaptability: Adapted to various outdoor environment.

4. Energy-saving: 1/3 energy-saving than traditional outdoor screen.

LED Curtain Screen PARAMETER
Production Series P33.33 P16.67 P15.625
Pixels DIP346RGB
Horizontal Spacing 33.33mm 16.67mm 15.625mm
Vertical Spacing 16.67mm 16.67mm 15.625
Gradation 16bits
Brightness ≥7000CD/sqm ≥6500CD/sqm ≥7500CD/sqm
Brightness range 5% ~ 100% Without loss of gray
Horizontal Viewing Angle ≥110°
Vertical Viewing Angle ≥60°
Best Viewing distance 20 ~ 300m 20 ~ 400m 15 ~ 300m
Maximum power consumption 500w/sqm 500w/sqm 800w/sqm
Average power consumption 150w/sqm 150w/sqm 240w/sqm
Weight 13KG/sqm 12KG/sqm 18KG/sqm
Thickness 6cm
Thickness of installation 11.8cm
Refresh rate 3840Hz
Display mode 1920 x 1080 pixels
Lifespan ≥100 thousand hours (11 years)
Hollow rate 60.00% 70.00% 40.00%
Protection rating IP65
Power modules High conversion efficiency (93%) PFC
Fire performance Full V0 class flame retardant

Small Portable Led Curtain Screen Panel P16.67mm Front Service

Small Portable Led Curtain Screen Panel P16.67mm Front ServiceSmall Portable Led Curtain Screen Panel P16.67mm Front Service

Small Portable Led Curtain Screen Panel P16.67mm Front Service

LED Curtain Screen FAQ

Q1: What is the shipping way?

A1: For the mass order ( fit for a container), we do shipment by Sea and for others usually by express or airline

Q2: Can a sample order be placed before the mass production?

A2: Yes, we acceptable sample orders led display, please let us know your detail request then we will send you the sample asap

for confirmation.

Q3: Can a sample product be free?

A3: We offer free sample for some models, please advise what you need to see if we have available free samples here to be sent

Q4: Can a led display be any size?

A4: Nope, according the led module size and cabient size, such as p4.81mm is 500x500mm for smallest unit.
