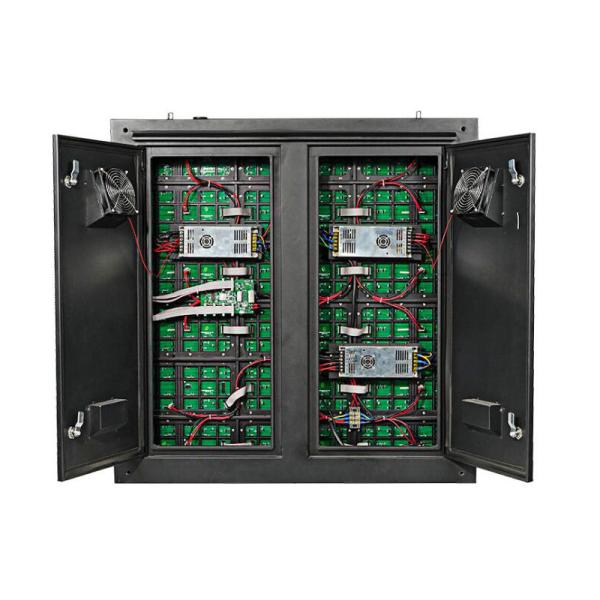

Outdoor Advertising Dooh Display Digital Out Of Home Screens P4 P6 P8 ICN2038S
Outdoor Advertising Dooh Display Digital Out Of Home Screens P4 P6 P8 ICN2038S
Outdoor Advertising Dooh Display Digital Out Of Home Screens P4 P6 P8 ICN2038S
Outdoor Advertising Dooh Display Digital Out Of Home Screens P4 P6 P8 ICN2038S
Outdoor Advertising Dooh Display Digital Out Of Home Screens P4 P6 P8 ICN2038S
Outdoor Advertising Dooh Display Digital Out Of Home Screens P4 P6 P8 ICN2038S
Outdoor Advertising Dooh Display Digital Out Of Home Screens P4 P6 P8 ICN2038S
Outdoor Advertising Dooh Display Digital Out Of Home Screens P4 P6 P8 ICN2038S
Specifications
Place of Origin :
Guangdong, China
Model Number :
P4
Brand Name :
King VisionLed
Packaging Details :
Flight case:530mmx650mmx1000mm, 6 pcs panels or 8 pcs panels packed in 1 flight case
Supply Ability :
1000 Square Meter/Square Meters per Week
MOQ :
6 Square Meters
Price :
$608.00/Square Meters 6-49 Square Meters
Certification :
CE, ROHS, ISO 9001, UL
Payment Terms :
D/A, D/P, T/T, Western Union, L/C, MoneyGram
Delivery Time :
15 working days
Application :
Outdoor building / gymnasium / real estate/
Type :
Dooh Display
Panel Size :
960mmx960mm
Luminance of white balance :
Above 1100nits
Main Ic :
ICN2038S
Power Supply :
Meanwell/G-energy/YHY
Description

P4 P6 P8 Customized Easy Installation Outdoor Big Commercial Advertising Dooh Display

Introduction OF Big Commercial Advertising Dooh Display:
P8 outdoor led screen adopts physical and virtual pixel technology which makes the picture more clear and vivid, no flicker and blind dots. The screen is manufactured in a waterproof and dustproof design so it can work very well in rain and sunshine. It can be assembled and disassembled very easy, and it is an ideal product for any kind advertisements.

It characterized by perfect vivid image, super brightness, high refresh rate, long life span and stable work, and waterproof, etc.

It is widely used in advertising, sports, industrial enterprise, transportation, stations, terminals, airports, construction, education system and other public places.

Commercial Advertising Dooh Display P4 P5 P6 P8 P10
Pixel Pitch(mm) 4 5 6.67 8 10
LED Chips SMD1921 SMD2525 SMD3535 SMD3535 SMD3535
Pixel density(dots/m2) 62500 40000 22477 15625 10000
Driving Method 1/10 scanning 1/8 scanning 1/6 scanning 1/5 scanning 1/2 scanning
Module Size(mm) 320*160 320*160 320*160 320*160 320*160
Module Resolution 80*40 64*32 48*24 40*20 32*16
Cabinet Size( W*L mm) 960*960 960*960 960*960 960*960 960*960
Cabinet Material

Magnesium

Alloy

Magnesium

Alloy

Magnesium

Alloy

Magnesium

Alloy

Magnesium

Alloy
Cabinet Weight( Kg/m2 ) 35 35 35 35 35
Max.Consumption(W/m2) 800 800 800 800 800
Ave.Consumption(W/m2) 350 350 350 350 350
Brightness( Nits ) ≥5500 ≥5000 ≥5500 ≥5800 ≥6000
Viewing Angle (Vertical / Horizontal) 120° / 120° 120° / 120° 120° / 120° 120° / 120° 120° / 120°
Refresh Rate ≥1920Hz ≥1920Hz ≥1920Hz ≥1920Hz ≥1920Hz
IP Level IP65 IP65 IP65 IP65 IP65

Outdoor Advertising Dooh Display Digital Out Of Home Screens P4 P6 P8 ICN2038S
Outdoor Advertising Dooh Display Digital Out Of Home Screens P4 P6 P8 ICN2038S
Outdoor Advertising Dooh Display Digital Out Of Home Screens P4 P6 P8 ICN2038S
Outdoor Advertising Dooh Display Digital Out Of Home Screens P4 P6 P8 ICN2038S Big Commercial Advertising Dooh Display FAQ:

Q1: What is the shipping way?

For the mass order ( fit for a container), we do shipment by Sea and for others usually by express or airline

Q2: Can a sample order be placed before the mass production?

Yes, we acceptable sample orders led display, please let us know your detail request then we will send you the sample asap

for confirmation.

Q3: Can a sample product be free?

We offer free sample for some models, please advise what you need to see if we have available free samples here to be sent

Q4: Can a led display be any size?

Nope, according the led module size and cabient size, such as p4.81mm is 500x500mm for smallest unit.
