Smd Full Color Led Screen Panel / Module P5 P6 P8 P10 Outdoor Led Display
Smd Full Color Led Screen Panel / Module P5 P6 P8 P10 Outdoor Led Display
Smd Full Color Led Screen Panel / Module P5 P6 P8 P10 Outdoor Led Display
Smd Full Color Led Screen Panel / Module P5 P6 P8 P10 Outdoor Led Display
Smd Full Color Led Screen Panel / Module P5 P6 P8 P10 Outdoor Led Display
Smd Full Color Led Screen Panel / Module P5 P6 P8 P10 Outdoor Led Display
Smd Full Color Led Screen Panel / Module P5 P6 P8 P10 Outdoor Led Display
Smd Full Color Led Screen Panel / Module P5 P6 P8 P10 Outdoor Led Display
Specifications
Place of Origin :
Guangdong, China
Model Number :
P10
Brand Name :
King VisionLed
Packaging Details :
Flight case:530mmx650mmx1000mm, 6 pcs panels or 8 pcs panels packed in 1 flight case
Supply Ability :
1000 Square Meter/Square Meters per Week
MOQ :
6 Square Meters
Price :
$410.00/Square Meters 6-49 Square Meters
Application :
Outdoor building / gymnasium / real estate/
Color :
Full color
Panel Size :
960mmx960mm
Pixel Pitch :
10mm
Pixels :
10mm
Cabinet size :
960mmx960mm/1024x1024mm
Weight of Cabinet :
38kg
Thickness :
140mm
Driving Method :
1/4 Scaning
Usage :
outdoors
Apply to :
Stage,church led,conference,fashion show,live concerts
Luminance of white balance :
Above 6500nits
Main Ic :
ICN2038S
Power Supply :
Meanwell/G-energy/YHY
Port :
Shenzhen
Description

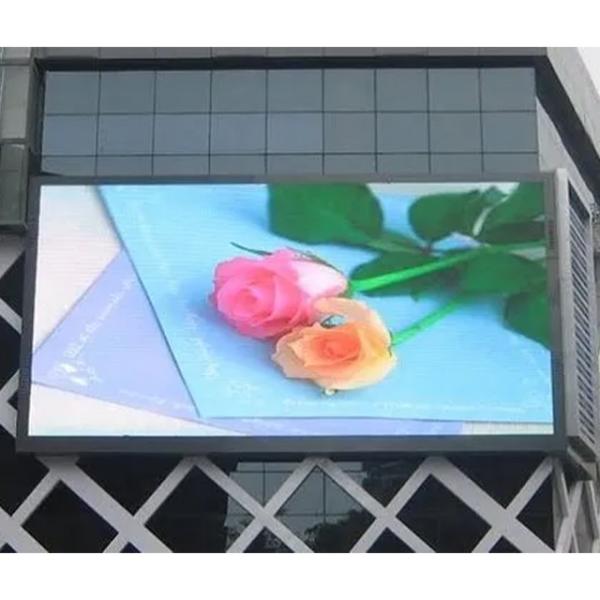

Outdoor Fixed LED Screen application scenarios:

1. rain station and bus station digital billboard, airport information showing system, street shop led message board for advertising purposes

2. parking garages,electronic billboards,multimedia advertising boards

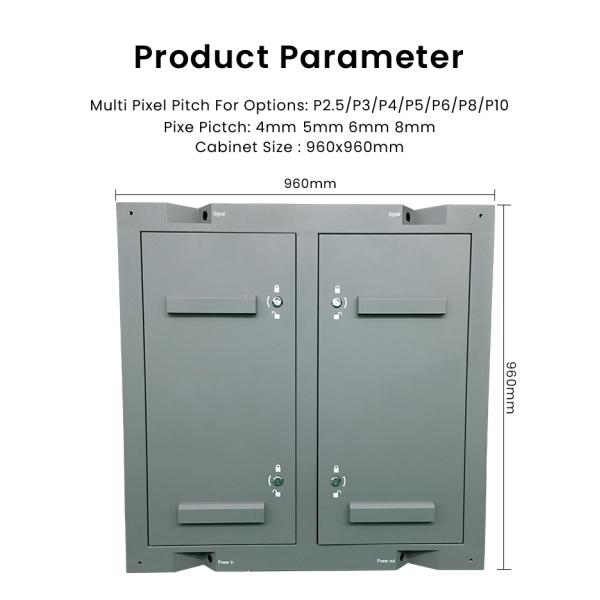

Outdoor Fixed LED Screen Specification
Pixe Pictch 4mm 5mm 6mm 8mm
Led encapsulation SMD1921 SMD2727 SMD2727 SMD2727/SMD3535
Scan Mode 1/8 Scan 1/8 Scan 1/8 Scan 1/4 Scan
Pixe Per Sq.m 62,500 Pixel 40,000 Pixel 27,777 Pixel 15,625 Pixel
Module Size(W*H) 256*128mm 320*160mm 192*192mm 320*320mm/320*160mm
Cabinet Size(W*H*D) 1024*768mm 960*960mm 960*960mm 960*960mm
Cabinet Weight 45KG/Pieces 40KG/Pieces 40KG/Pieces 45KG/Pieces
Max Power Consumption 900Watt/m2 900Watt/m2 900Watt/m2 900Watt/m2
Brightness(Nits/m2) 5000Nits 5500Nits 6000Nits 6500Nits
Maintenance methods Rear/Front Serviceable
Cabinet Material Steel/Aluminun Option
Refresh Rate 1920hz-3840hz
Color temperature 6500K ±500(Adjustable)
Grey Scale 14-16bits
Average Power Consumption 500Watt/m2
IP Protection IP65 Front/Rear
Operating Temperature -20°C to 50°C
Working Voltage 100-240Volt(50-60hz)

Smd Full Color Led Screen Panel / Module P5 P6 P8 P10 Outdoor Led Display

Smd Full Color Led Screen Panel / Module P5 P6 P8 P10 Outdoor Led Display
Smd Full Color Led Screen Panel / Module P5 P6 P8 P10 Outdoor Led Display
Shenzhen King Visionled Optoelectronics Co.Ltd is a manufacturer which have lead-edge technologies in solving problems of led field.Jinhe was established in 2006 Shenzhen, with a plant area of 10,000 square meters, stuffs is 300 members,.At the end of 2012,the producing capability was reached up to 10000sq.m per month.It become the leading manufacturer in the LED industry soon.It's one of the fastest growing companies in China.

Pre-sale service:

1. Inquiries will be replied within 24 hours.

2. Market research and forecast for customer.

3. Provide unique and professional solutions based on customer's requirement.

4. Data sheet and samples offered.

5. Other required services such as special packing design, factory visiting and so on.








Our Service
1)Training after order
After the order is placed, a processional training will be offered, including software use, operate safety,
maintain equipment

2) Installation and debugging
Wecould send professionals to conduct on site installation and debugging in strict accordance with the
requirements of the schemes and original manual.

3) Warranty
Warranty: 3 years warranty, lifetime maintenance
Equip with free spare parts. The first 2 years after shipment, we will be responsible for free maintenance
if any problem causedby quality itself. While you should take the cost of the freight to us. After 2 years,
service is still available, but would charge for labor, material and freight cost that generates.
