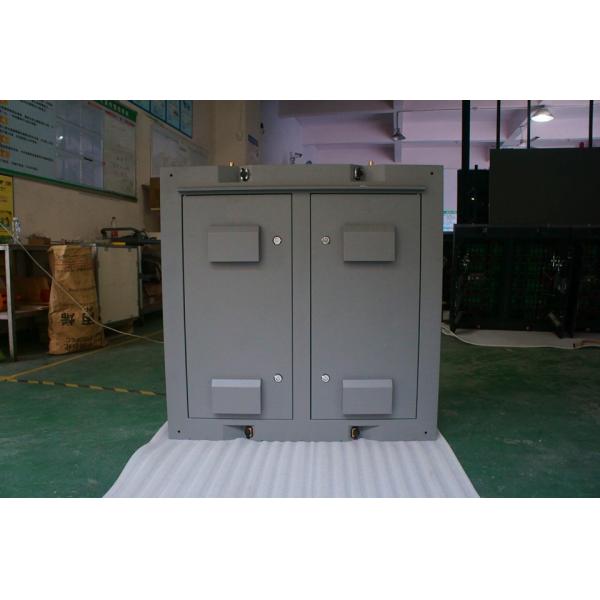

P4 Giant Outdoor Led Screen Cabinet Size 960x960mm SMD3535 DOOH Billboard
P4 Giant Outdoor Led Screen Cabinet Size 960x960mm SMD3535 DOOH Billboard
P4 Giant Outdoor Led Screen Cabinet Size 960x960mm SMD3535 DOOH Billboard
P4 Giant Outdoor Led Screen Cabinet Size 960x960mm SMD3535 DOOH Billboard
P4 Giant Outdoor Led Screen Cabinet Size 960x960mm SMD3535 DOOH Billboard
P4 Giant Outdoor Led Screen Cabinet Size 960x960mm SMD3535 DOOH Billboard
P4 Giant Outdoor Led Screen Cabinet Size 960x960mm SMD3535 DOOH Billboard
P4 Giant Outdoor Led Screen Cabinet Size 960x960mm SMD3535 DOOH Billboard
Specifications
Brand Name :
Kingvisionled
Model Number :
P10
Certification :
CCC / CE / ROHS / UL /ISO9001
Place of Origin :
China
Price :
USD 550-600 /SQM
MOQ :
Min 6 Square meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 Square Meter/Square Meters per Week
Delivery Time :
15 working days
Packaging Details :
Plywood case or flight case
Warranty :
2 Years
Panel size :
960x960mm
Tube chip color :
SMD3535
Usage :
Outdoor , subway station, highway station advertising, train station
Cabinet Material: :
Iron
Brightness :
6000-8000 nits
Description

Outdoor LED Screen Cabinet Size 960x960mm SMD3535 Waterproof DOOH Billboard

Outdoor LED Screen Product Feature:

1) With good lightening accordance and no mosaic
2) Can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5)usually use for advertising outdoor

Outdoor LED Screen Specification
Pixe Pictch 4mm 5mm 6mm 8mm
Led encapsulation SMD1921 SMD2727 SMD2727 SMD2727/SMD3535
Scan Mode 1/8 Scan 1/8 Scan 1/8 Scan 1/4 Scan
Pixe Per Sq.m 62,500 Pixel 40,000 Pixel 27,777 Pixel 15,625 Pixel
Module Size(W*H) 256*128mm 320*160mm 192*192mm 320*320mm/320*160mm
Cabinet Size(W*H*D) 1024*768mm 960*960mm 960*960mm 960*960mm
Cabinet Weight 45KG/Pieces 40KG/Pieces 40KG/Pieces 45KG/Pieces
Max Power Consumption 900Watt/㎡ 900Watt/㎡ 900Watt/㎡ 900Watt/㎡
Brightness(Nits/㎡) 5000Nits 5500Nits 6000Nits 6500Nits
Maintenance methods Rear/Front Serviceable
Cabinet Material Steel/Aluminun Option
Refresh Rate 1920hz-3840hz
Color temperature 6500K ±500(Adjustable)
Grey Scale 14-16bits
Average Power Consumption 500Watt/㎡
IP Protection IP65 Front/Rear
Operating Temperature -20°C to 50°C
Working Voltage 100-240Volt(50-60hz)

P4 Giant Outdoor Led Screen Cabinet Size 960x960mm SMD3535 DOOH Billboard

P4 Giant Outdoor Led Screen Cabinet Size 960x960mm SMD3535 DOOH Billboard

P4 Giant Outdoor Led Screen Cabinet Size 960x960mm SMD3535 DOOH Billboard

P4 Giant Outdoor Led Screen Cabinet Size 960x960mm SMD3535 DOOH Billboard

Outdoor LED Screen FAQ

1. Do I need air-conditioner?
YES, if your local temperature is very high . The quantity depends on your dimension.
2. How to install led display?
We will provide drawings of steel structure or Teamviewer to help you install. If you need our engineers to help you, we can sent them to your installation place. But all the fees including air tickets(back and forth), transportation, living and
salary(USD80/per day/per person) need to be paid by you.
3. How to ship?
It's suggested by sea because the cost is much cheaper than by air.
4. Can I do wireless?
Yes, we can provide a set of control system to help you realize that. But I suggest you use computers, especially for your large size, because using computers can bring much better visual effect and better for outdoor advertising .
