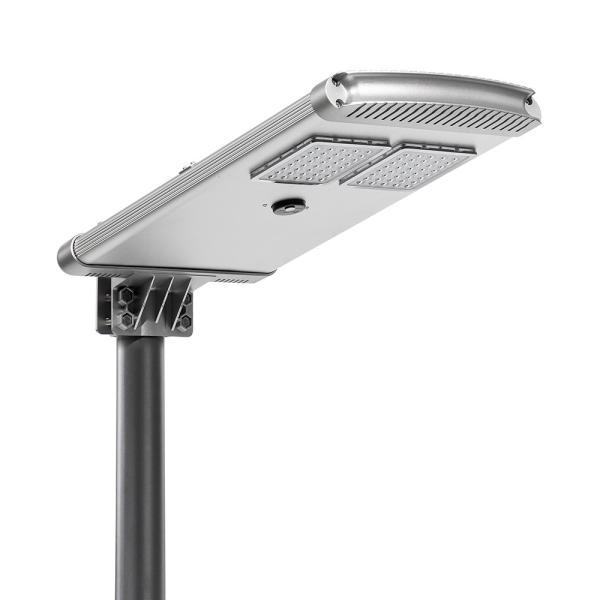

LifePO4 Battery 12.8V All In One Solar LED Street Light System With Remote Control
LifePO4 Battery 12.8V All In One Solar LED Street Light System With Remote Control
Specifications
Brand Name :
RYGH Tech; OEM or ODM available
Model Number :
RYGH-PD-30W
Certification :
CE, ROHS
Place of Origin :
Shenzhen
MOQ :
No MOQ
Price :
USD 180/pcs
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
50000 pieces/quarter
Delivery Time :
sample order 7-10 days, Bulk order 7-15 working days
Packaging Details :
Paper carton+Foam, export standard
Material :
Aluminum
Solar Panel :
18V50W Imported High Efficiency Monocrystalline Silicon
LifePO4 Battery :
300WH 12.8V
Light Efficiency :
170LM/W
Install height :
6-7m
Lumen :
5100LM
Charge time :
6 hours
IP Grade :
IP65 Grade
Warranty :
3 years warranty
CRI :
RA＞70
Color Temperature :
3000K-6500K
Power Factor :
>0.95
Install Pole diameter :
60-65mm
Product name :
30w solar led street light
Description

30W 40W 50W 60W 80W 100W 120W LifePO4 Battery 12.8V All In One Solar LED street Light System With Remote Control

Product description:


PAD series put high efficiency mono solar panel,intelligent MPPT charge controller,deep cycle long life LifePO4 battery,high
lumen led bridgelux 3030 led chip all in one box,easy to install and transportation

This solar led street light with Aluminum + Steel glass materials. The solar led street light working time can be 12 Cloudy/Rainy days.

But the charging time for the solar led street lighting only need 6 hours under strong sunlight is okay.

We use Bridgelux LED of this solar led street light and the lumen can arrives 170LM/W.

The mainly Functions of this PAD series solar led street lighting is Human Body Infrared Sensor Control,time control,light control, smart remote control.

Datasheet:

Model NO.RYGH-PD-30W
Wattage 30W
Solar Panel 18V 50W Imported High Efficiency Monocrystalline Silicon
Certificate CE ROHS IP65
Light 5100LM
LED Bridgelux chips3030(Life time 100000hours)
Battery 300WH 12.8V LifePO4 Battery
Mounting height(m) 6~7m (Suggest install between space20-25m)
CRI >70
IP Rate IP65
Charge Time 6 hours by bright sunlight
Cloudy/Rainy days 12 Cloudy/Rainy days
Material High Class Aluminum(anodic oxidation treatment)
Product Size 820*385*180mm
Color Temperature 6000-6500K
LED Lamp 80PCS
Conversion Efficiency >=0.95
Operating Temp -25-605ºC
Warranty 3 years
Motion sensor Yes(Microwave Sensor)
Remote Control Yes(1pc remote control per lot)
Packing Size 910*455*210MM

Features:
1.Put solar panel,led chip,charge controller and battery are in one box,professional industrial design team design.
2.Use High end die-cast aluminum forming,with high-end, atmosphere, andic oxidation treatment design appearance,Impact and
high temperature resistance,excellent corrosion resistance.
3.With Intelligent power regulation, automatic judgment of weather, reasonable planning of discharge discipline.
4.With intelligent remote control,UVA technology,long distance remote control,Wearable obstacle,have 4 modes lighting mode
for choose,adjust brightness function and so on.
5.With intelligent discharge management,Charge and discharge soft and hard dual protection and intelligent equalization
technology,deep cycle more than 2000times.
6.For total lamp can reach 170LM/W,More than twice the average brightness of ordinary LED sources,view angle is 140 degree,
lighting more area.
7.With IP65 waterproof IP grade,can work in water in a short time.
8.Very easy disassemble,install and transportation.

Data sheet:

LifePO4 Battery 12.8V All In One Solar LED Street Light System With Remote Control

LifePO4 Battery 12.8V All In One Solar LED Street Light System With Remote Control

User-friendly design, easy to assemble and disassemble:


PAD series is integrated design,lamp body without glue.Compared with any other design light which Non-removable
replacement product,PAD design all in one solar lights each parts very easy to maintain and replacement.cut cost also.All
the connector have label,all cables use waterproof male and female plug connectors,avoid connect wrong.Styling
design,Reflect the rigorous and humane custom spirit of lamps
LifePO4 Battery 12.8V All In One Solar LED Street Light System With Remote Control

Working characters:


The solar panel converts sunlight into electricity and stored in lithium battery via controller, the LED light will
work at night automatically by light sensor control, and provide lighting for the darkness area, the intelligence
induction system can save the energy when the high-brightness lighting is not necessary

Production proccess:

LifePO4 Battery 12.8V All In One Solar LED Street Light System With Remote Control

Package:

LifePO4 Battery 12.8V All In One Solar LED Street Light System With Remote Control
