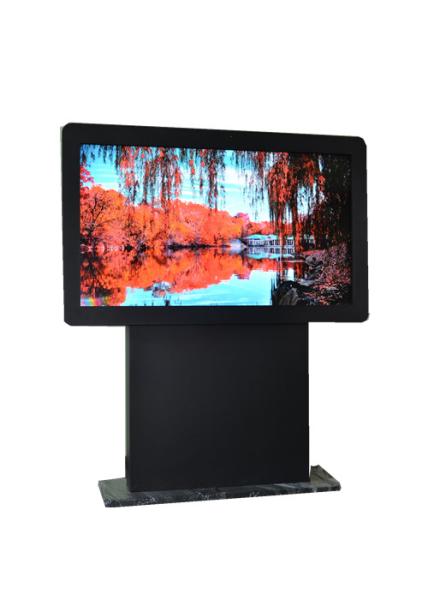

High Brightness Outdoor LCD Kiosk, 65 Interactive Capacitive Touch Screen
High Brightness Outdoor LCD Kiosk, 65 Interactive Capacitive Touch Screen
Specifications
Brand Name :
Maxbright
Model Number :
T650EDCL
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
50 sets / month
Delivery Time :
4-5 weeks
Packaging Details :
Carton
Description

Maxbright 65" High Bright Outdoor 4K Digital Signage Display

LED Array Backlight Enhanced

Model : T650EDCL

FEATURES:

Active Matrix TFT-LCD Display

High Brightness 2500-3000 nits, Sunlight Viewable

WUXGA 3840 x 2160 Max. 4K Resolution

Aspect Ratio: 16 :9 in landscape mode enabled

Wide Viewing Angles 178 deg (L/R/U/D)

Wide operating temp range, -30 ～ 50o C

Industrial mini PC for content playback

Waterproof IP65 enclosure

PANEL TYPE

 a-Si active matrix TFT-LCD
ACTIVE AREA 1428.5 x 803.5 mm landscape orientation
NATIVE RESOLUTION 2160 x 3840 RGB and White
PIXEL PITCH 0.429(H) x 0.429(V) mm
COLORS 1.07 Billion, 10 bits
HORIZONTAL FREQ. 110KHz ~ 139.5KHz
VERTICAL FREQ. 98Hz ~ 122Hz(DVB/PAL), 108Hz ~ 122Hz(NTSC)
BRIGHTNESS 2500-3000 cd/m2, LED Backlight Enhanced
CONTRAST RATIO 1200:1, Dynamic contrast ratio: 10000:1
DIMMING Auto-dimming by Light Sensor
VIEWING ANGLE 89/89/89/89
RESPONSE TIME 6msec typical
INTERFACE VGA, HDMI, or DVI
MEDIA PLAYER Media Player (RK 3288) (option)
REMOTE CONTROL Support for Full OSD Features
OPERATING VOLTAGE AC 100 ~ 240V 60/50Hz
POWER CONSUMPTION 860 W at Max. Brightness Level
STANDBY MODE 5 Watt or less
ACCESSORIES AC Power Cord, Remote Controller
HDMI, VGA cable x 1
OPERATING Mini PC: i3 CPU 4GB DDR2
(option) 500G HDD, 5 x USB ports, 1 x RJ45, WiFi (option)

DIMENSION

NET WEIGHT

2250(H) x 1260(W) x 240(D) mm, (without air-con)

245 Kg approx (without air-con)
Waterproof IP65 Enclosure option
COOLING By cooling fans controlled by MCU
1500W air-conditioner for harsh outdoor(option)

ENVIRONMENTAL

OPTION

Operating Temperature -20-45oC,

Wide temp. -30-50oC (with cool/warm air-con)
Operating Humidity 10%-85%
Storage Temperature -30-60oC
Storage Humidity 5%-90%
WARRANTY One Year STD, two years option

High Brightness Outdoor LCD Kiosk, 65
