43 inch Dual Face High Bright Digital Signage for Store Window Advertising
43 inch Dual Face High Bright Digital Signage for Store Window Advertising
Specifications
Brand Name :
Maxbright
Model Number :
M430EDCP-DF-SW
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100 sets / Month
Delivery Time :
4~5 weeks
Packaging Details :
Pearl cotton shock absorption + wood frame packaging
Panel Type :
a-Si Active Matrix TFT-LCD
Resolution :
1920 x 1080
Brightness :
2500 nits、700 nits
Power Consumption :
340W
Operating Temperature :
-30C - 50C
Operating Voltage :
100 - 240 VAC 50-60Hz
Description

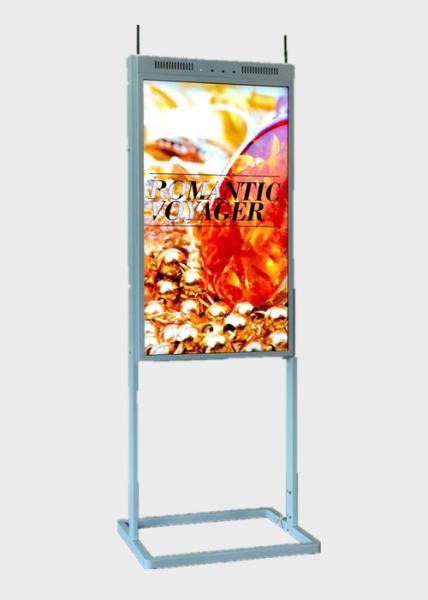

Maxbright 43 inch Dual Face High Bright Digital Signage for Store Window Advertising M430EDCP-DF-SW

LED Array Backlight Enhanced

Model: M430EDCP-DF-SW

Keys FEATURES:

Active Matrix TFT-LCD Display

High Brightness 2500 nits/700 nits, Dual Face

1920 x 1080 Max. Resolution

Aspect Ratio: 16:9 in Portrait orientation

Wide Viewing Angles 178 deg (L/R/U/D)

Wide operating temp range, -20 ～ 50o C

Android player or mini PC for content playback

Waterproof IP54 enclosure option

PANEL TYPE

a-Si active matrix TFT-LCD
ACTIVE AREA

941.184(H) x 529.416(V)mm
NATIVE RESOLUTION 1920 x 1080 RGB
PIXEL PITCH 0.4902(H) x 0.4902(V) mm
COLOR 16.7 M, 8 bits depth
HORIZONTAL FREQ. 57.3KHz ~ 70KHz
VERTICAL FREQ. 47Hz ~ 63Hz(DVB/PAL), 108Hz ~ 122Hz(NTSC)
BRIGHTNESS 2500 cd/m2 for Window face, 700 cd/ m2 for in shop face
CONTRAST RATIO 1100:1, Dynamic contrast ratio: 9000:1
DIMMING Auto-dimming by Light Sensor 100% to 10%
VIEWING ANGLE 89/89/89/89
RESPONSE TIME 12 msec typical
INTERFACE VGA, HDMI x 2
MEDIA PLAYER Media Player (RK3288 Quad-core) 2G/8-32G memory
REMOTE CONTROL Support for Full OSD Features
OPERATING VOLTAGE AC 100 ~ 240V 60/50Hz
POWER CONSUMPTION 70W for 700 nits panel, 300W for 2500 nits panel
STANDBY MODE 5 Watt or less
ACCESSORIES AC Power Cord, Remote Controller
HDMI, VGA cable x 1

OPERATING

(option)

Media Player RK3288 Quad-core Cortex-A17 1.8GHz 2GB DDR3, 32-64GB SD, 4 x USB ports, 1 x RJ45, 1 x HDMI, 2 X RS232, Android OS 5.1
TOUCH SCREEN 10 points PCAP Touch (option)

DIMENSION

WEIGHT

1047(H) x 574(W) x 100(D) mm,

45 Kg net weight
ENCLOSURE Iron Sheet folded, Outdoor Powder Coating,
Hang mount or with floor stand
COOLING Fans cooling controlled by MCU

ENVIRONMENTAL

Operating Temperature -10-45oC,

Wide temp. -20-50oC (option)
Operating Humidity 10%-85%
Storage Temperature -30-60oC
Storage Humidity 5%-90%
WARRANTY One Year
