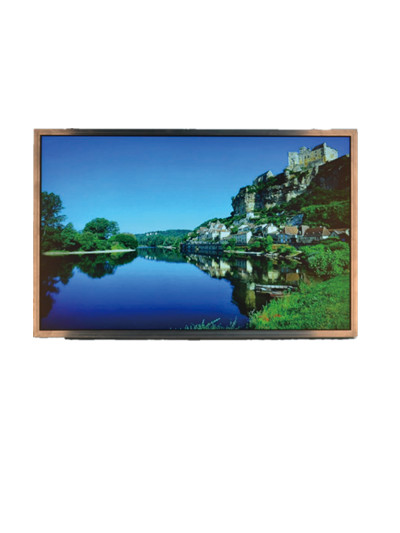

1024 x 768 High Brightness LCD Display , Sunlight Readable Screen 10.4
1024 x 768 High Brightness LCD Display , Sunlight Readable Screen 10.4
Specifications
Brand Name :
Maxbright
Model Number :
OF104EECL-X
Place of Origin :
Shenzhen, China
MOQ :
1
Payment Terms :
T/T, Western Union
Delivery Time :
4~5 weeks
Packaging Details :
Pearl cotton shock absorption + carton packaging
Certification :
CE
Price :
Negotiable
Supply Ability :
300 pcs / month
Panel Type :
a-Si Active Matrix TFT-LCD
Resolution :
1024 x 768
Brightness :
1500 nits
Dimming :
100% to 1% by POT
Power Consumption :
18 Watt
Operating Voltage :
12VDC
Description

10.4” high bright LCD module Model:OF104EECL-X

LED Edge Type Backlight Enhanced

Model:OF104EECL-X

FEATURES:

Active Matrix TFT-LCD

High Brightness 1500 nits,

Complete Sunlight Viewable

1024 x 768 Max. Resolution

Aspect Ratio: 4:3

Wide Viewing Angles 160 deg (L/R)

VGA, Composite (NTSC/PAL auto detected)

Wide operating temp range, -20 ～ 60oC

Main Specs of 10.4" high bright LCD module

PANEL TYPE a-Si active matrix TFT-LCD
ACTIVE AREA 210.4mm x 157.8 mm
RESOLUTION 1024 x 768 RGB XGA resolution
PIXEL PITCH 0.2055(H) x 0.2055(V) mm
COLOR 6-bit, 262K/8-bit 16.7M selectable
CONTRAST RATIO 1200:1 Typical
BACKLIGHT TYPE LED Edge type
BRIGHTNESS 1500cd/m2, LED Backlight Enhanced
DIMMING auto dimming by Light Sensor or manually by POT
VIEWING ANGLE 88/88/88/88
INTERFACE LVDS
RESPONSE TIME 4msec tr, 12msec tf
LIFE TIME 45000 hrs
OPERATING VOLTAGE 12VDC, 2.5.A
POWER CONSUMPTION 18 Watt
STANDBY MODE 1-2 Watt or less
DIMENSION 230.0(W) × 180.2 (H) × 10.5(D) mm (typ.)
(Without LED drive board)
ENVIRONMENTAL Operating Temperature -20-60 C,
Operating Humidity 10%-90%
Storage Temperature -30-80 C
Storage Humidity 10%-90%
WEIGHT 850 g
WARRANTY One year

1024 x 768 High Brightness LCD Display , Sunlight Readable Screen 10.4
