2500 nits High Brightness 43 inch LCD Module, 300 Watt Power Consumption
2500 nits High Brightness 43 inch LCD Module, 300 Watt Power Consumption
Specifications
Brand Name :
Maxbright
Model Number :
Model: OF430EDCL
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, Western Union
Delivery Time :
4~5 weeks
Packaging Details :
Pearl cotton shock absorption + carton packaging
Certification :
CE
Price :
Negotiable
Supply Ability :
200 pcs / month
Panel Type :
a-Si active matrix TFT-LCD
Resolution :
1920 x 1080
Brightness :
2000-2500 nits
Power Consumption :
250W for 2000 nits, 300W for 2500 nits
Working Temperature :
-10-50 deg C
Description

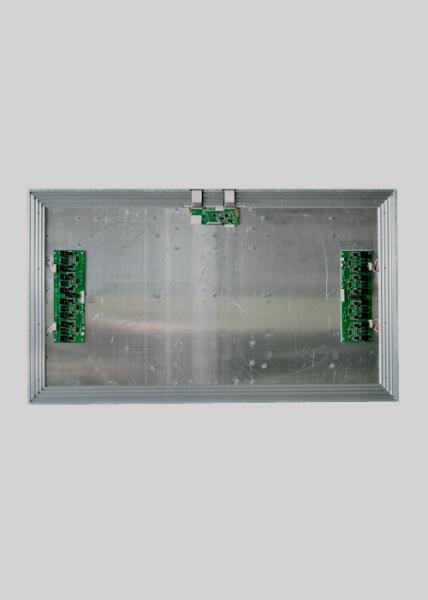

Maxbright 43" High Brightness LCD Module Model: OF430EDCL

LED Array Backlight Enhanced

Model:OF430EDCL

FEATURES:

Active Matrix TFT-LCD Display

High Brightness 2000-2500 nits, Sunlight Viewable

1920 x 1080 Max. Resolution

Aspect Ratio: 16:9 in Landscape or Portrait mode

Wide Viewing Angles 178 deg (L/R/U/D)

Wide operating temp range, -30 ～ 50o C

Media player box or mini-PC for content playback

Main Specs of 43” High Bright LCD Module

PANEL TYPE a-Si active matrix TFT-LCD
ACTIVE AREA 941.184(H) x 529.4(V)mm
NATIVE RESOLUTION 1920 x 1080 RGB
PIXEL PITCH 0.4902(H) x 0.4902(V) mm
COLOR 16.7 M, 8 bits depth
HORIZONTAL FREQ. 57.3KHz ~ 70KHz
VERTICAL FREQ. 47Hz ~ 63Hz(DVB/PAL), 108Hz ~ 122Hz(NTSC)
BRIGHTNESS 2000-2500 cd/m2, LED Backlight Enhanced
CONTRAST RATIO 1100:1, Dynamic contrast ratio: 9000:1
DIMMING Auto-dimming by Light Sensor
VIEWING ANGLE 89/89/89/89
RESPONSE TIME 12 msec / 5ms typical
INTERFACE VGA, HDMI x 2 or LVDS only
MEDIA PLAYER Media Player (RK 3288 chip) (option)
REMOTE CONTROL Support for Full OSD Features
OPERATING VOLTAGE AC 100 ~ 240V 60/50Hz
POWER CONSUMPTION 250W for 2000 nits, 300W for 2500 nits
STANDBY MODE 5 Watt or less
ACCESSORIES AC Power Cord, Remote Controller
HDMI, VGA cable x 1

OPERATING

Media Player RK3288 Quad-core Contex-A17 1.8GHz,

2GB DDR3, 32-64GB SSD, 4 x USB ports, 1 x RJ45
(option) 1 x HDMI, 2 X RS232, Android OS 5.1
DIMENSION 974.5(H) x 561.5(W) x 40(D) mm, module only
WEIGHT 25 Kg approx
COOLING By cooling fans and MCU controller

ENVIRONMENTAL

Operating Temperature -10-50oC,

Wide temp. -30-50oC (option)
Operating Humidity 10%-85%
Storage Temperature -30-60oC

Storage Humidity 5%-90%
WARRANTY

One Year
