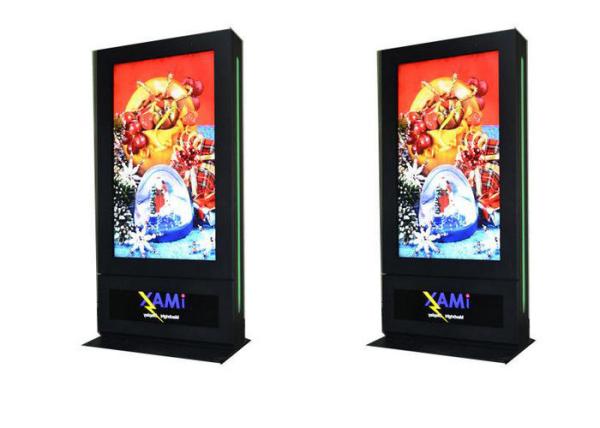

High Bright 2500 nits IP65 Outdoor 65 Digital Totem Wide Operating Temperature
High Bright 2500 nits IP65 Outdoor 65 Digital Totem Wide Operating Temperature
High Bright 2500 nits IP65 Outdoor 65 Digital Totem Wide Operating Temperature
High Bright 2500 nits IP65 Outdoor 65 Digital Totem Wide Operating Temperature
Specifications
Brand Name :
Maxbright
Model Number :
T650EDCP-4K
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
1
Payment Terms :
T/T, Western Union
Supply Ability :
100 sets / Month
Delivery Time :
4~5 weeks
Packaging Details :
Pearl cotton shock absorption + wood case packaging
Price :
Negotiable
CONTRAST RATIO :
1400:1, Dynamic contrast ratio: 10000:1
Resolution :
3840 x 2160 UHD
Brightness :
2000-2500 nits
Power Consumption :
430W~540W
Touch Screen :
Projected Capacitive Touch G+G 10 Points
Operating Voltage :
100 - 240 VAC 50-60Hz
Description

Maxbright 65" High Bright 4K Outdoor Digital Signage Totem Model : T650EDCP-4K

LED Array Backlight Enhanced

Model: T650EDCP-4K

FEATURES:

Active Matrix TFT-LCD Display

High Brightness 2000-2500 nits, Sunlight Viewable

3840 x 2160 QWUXGA Max. 4K Resolution

Aspect Ratio: 9:16 in portrait mode enabled

Wide Viewing Angles 178 deg (L/R/U/D)

Wide operating temp range, -30 ～ 50o C

Media player box or mini Ind. PC for content playback

Waterproof IP65 enclosure

PANEL TYPE a-Si active matrix TFT-LCD
ACTIVE AREA 803.52 x 1428.48 mm in portrait orientation
NATIVE RESOLUTION 2160 x 3840 RGB
PIXEL PITCH 0.372(H) x 0.372(V) mm
COLOR 1.07 Billon color, 10 bits
HORIZONTAL FREQ. 244KHz ~ 280KHz
VERTICAL FREQ. 95Hz ~ 104Hz(DVB/PAL), 108Hz ~ 122Hz(NTSC)
BRIGHTNESS 2000-2500 cd/m2, LED Backlight Enhanced
CONTRAST RATIO 1400:1, Dynamic contrast ratio: 10000:1
DIMMING Auto-dimming by Light Sensor
VIEWING ANGLE 89/89/89/89
RESPONSE TIME 5msec typical
INTERFACE VGA, HDMI x 2
MEDIA PLAYER Media Player (RK3399 CPU) (option)
REMOTE CONTROL Support for Full OSD Features
OPERATING VOLTAGE AC 100 ~ 240V 60/50Hz
POWER CONSUMPTION 430W for 2000 nits, 540W for 2500 nits
STANDBY MODE 5 Watt or less
ACCESSORIES AC Power Cord, Remote Controller
HDMI, VGA, cable x 1
OPERATING Mini PC: i5-6500 CPU 3.2GHz, 4-8GB DDR2
(option) 128G SSD, 5 x USB ports, 1 x RJ45, WiFi (option)
TOUCH 10 points PCAP, or metal mesh option

DIMENSION

WEIGHT

2200(H) x 1110(W) x 260(D) mm, (without air-con)

185 Kg approx (without air-con)
Waterproof IP65 Enclosure
COOLING By cooling fans controlled by MCU for outdoor
600W air-conditioner option for harsh outdoor
FRONT PROTECTION 3+3 AR vandal glass or 6mm AR vandal glass

ENVIRONMENTAL

OPTION

Operating Temperature -20-50oC,

Wide temp. -30-50oC (with cool/warm air-con)
Operating Humidity 10%-85%
Storage Temperature -30-60oC
Storage Humidity 5%-90%
WARRANTY One Year, extended 2 or 3 years available
