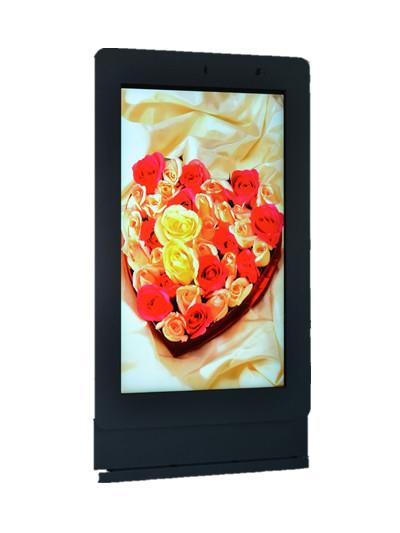

Outdoor 75 Dual Face 4K Digital Advertising Totem，3000 nits Sunlight Readable
Outdoor 75 Dual Face 4K Digital Advertising Totem，3000 nits Sunlight Readable
Specifications
Brand Name :
Maxbright
Model Number :
T750EDCP-DF
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
50 unit / month
Delivery Time :
5~6 weeks
Packaging Details :
Wooden case packaging
Type :
a-Si Active Matrix TFT-LCD
Brightness :
2500 - 3000 nits
Operating voltage :
AC100~240V 50 /60 HZ
Operating Temperature :
-30 --- 50 deg C
Power comsumption :
1800W for two panels w/o air-con
Application :
Outdoor advertising publication, interactive touch, info search
Input voltage :
100~240VAC 50 /60 HZ
Resolution :
3840 x 2160 UHD
Description

Maxbright 75" High Bright Outdoor Dual Face 4K Digital Signage Totem Model : T750EDCP-DF

LED Array Backlight Enhanced

Model: T750EDCP-DF

FEATURES:

Active Matrix TFT-LCD Display

High Brightness 2500-3000 nits, Sunlight Viewable

3840 x 2160 QWUXGA Resolution

Aspect Ratio: 9:16 in portrait mode enabled

Wide Viewing Angles 178 deg (L/R/U/D)

Wide operating temp range, -30 ～ 50o C

Industrial mini PC for content playback

Waterproof IP65 enclosure

PANEL TYPE a-Si active matrix TFT-LCD
ACTIVE AREA 1649.664 x 927.936 mm portrait orientation
NATIVE RESOLUTION 2160 x 3840 RGB QWUXGA
PIXEL PITCH 0.429(H) x 0.429(V) mm
COLOR 1.07 Billion, 10 bits
HORIZONTAL FREQ. 110KHz ~ 139.5KHz
VERTICAL FREQ. 98Hz ~ 122Hz(DVB/PAL), 108Hz ~ 122Hz(NTSC)
BRIGHTNESS 2500 - 3000 cd/m2, LED Backlight Enhanced
CONTRAST RATIO 1200:1, Dynamic contrast ratio: 10000:1
DIMMING Auto-dimming by Light Sensor
VIEWING ANGLE 89/89/89/89
RESPONSE TIME 6msec typical
INTERFACE VGA, AV, S-video, HDMI x 2
MEDIA PLAYER Media Player (RK 3288) (option)
REMOTE CONTROL Support for Full OSD Features
OPERATING VOLTAGE AC 100 ~ 240V 60/50Hz
POWER CONSUMPTION 1800W for two panels w/o air-con
STANDBY MODE 10 Watt or less
ACCESSORIES AC Power Cord, Remote Controller
HDMI, VGA, Composite, S-Video cable x 1
OPERATING Mini PC: i3 or i5 CPU 4GB DDR2
(option) 500G HDD, 5 x USB ports, 1 x RJ45, WiFi (option)

DIMENSION

NET WEIGHT

2250(H) x 1260(W) x 320(D) mm, (without air-con)

295 Kg approx (without air-con)
Waterproof IP65 Enclosure option
COOLING By cooling fans controlled by MCU for outdoor
2500W Ind. air-conditioner for harsh outdoor(option)

ENVIRONMENTAL

OPTION

Operating Temperature -20-45oC,

Wide temp. -30-50oC (with cool/warm air-con)
Operating Humidity 10%-85%
Storage Temperature -30-60oC
Storage Humidity 5%-90%
WARRANTY One Year
