IP65 Outdoor 49 Digital Totem 2500 nits High Brightness Backlight Enhanced
IP65 Outdoor 49 Digital Totem 2500 nits High Brightness Backlight Enhanced
Specifications
Brand Name :
Maxbright
Model Number :
T490EDCP
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
50-100 unit / month
Delivery Time :
4~5 week
Packaging Details :
Pearl cotton shock absorption + carton packaging
Panel Type :
a-Si active matrix TFT-LCD
Brightness :
2500 -3000 nits
Operating Temperature :
-30 --- 50 deg C
Operating voltage :
AC100~240V 50 /60 HZ
Power comsumption :
380 W
Application :
Outdoor advertising publication, interactive touch, info search, way finder
Input voltage :
AC100~240V 50 /60 HZ
Resolution :
1920 x 1080, 3840 x 2160
Description

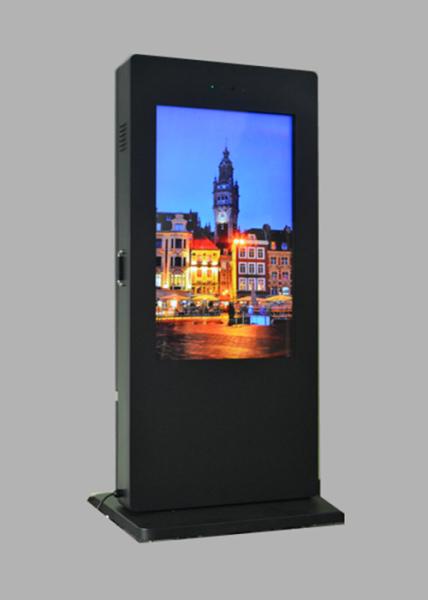

Maxbright 49" High Bright IP65 Outdoor Digital Totem Model: T490EDCP

LED Array Backlight Enhanced

Model: T490EDCP

FEATURES:

Active Matrix TFT-LCD PD panel

49”High Bright IP65 Outdoor LCD Kiosk

High Brightness 3000 nits, Sunlight Viewable

1920 x 1080 Max. Resolution, 4K available

Aspect Ratio: 9:16 in portrait mode enabled

Wide Viewing Angles 178 deg (L/R/U/D)

Wide operating temp range, -30～50o C

Media player box or mini PC for content display

PANEL TYPE a-Si active matrix TFT-LCD
ACTIVE AREA 1073.8 x 604.2 mm portrait for both sides
NATIVE RESOLUTION 1080 x 1920 RGB, 4K available
PIXEL PITCH 0.55926(H) x 0.55926(V) mm
COLOR 16.7 M, 8 bits depth
HORIZONTAL FREQ. 57.3KHz ~ 70KHz
VERTICAL FREQ.

47Hz ~ 63Hz(DVB/PAL), 108Hz ~ 122Hz(NTSC)
BRIGHTNESS 2500 - 3000 cd/m2, LED Backlight Enhanced
CONTRAST RATIO 1100:1, Dynamic contrast ratio: 6500:1
DIMMING Auto-dimming by Light Sensor
VIEWING ANGLE 89/89/89/89
RESPONSE TIME 4.5ms
INTERFACE VGA, HDMI x 3
MEDIA PLAYER Media Player (RK 3288 CPU) (option)
REMOTE CONTROL Support for Full OSD Features
OPERATING VOLTAGE AC 100 ~ 240V 60/50Hz
POWER CONSUMPTION 380W at 2500 nits level
STANDBY MODE 5 Watt or less
ACCESSORIES AC Power Cord, Remote Controller
HDMI, VGA cable x 1
OPERATING Mini PC: NDiS-1660C, 2GB DDR2, 4GB option
(option) 2.5” 500GB HD, 4 x USB ports, 1 x RJ45, WiFi
3G or 4G module option

DIMENSION

WEIGHT

1940(H) x 870(W) x 180HD) w/o Air-Con,

155 Kg approx.
ENCLOSURE Iron sheet with outdoor powder painting
COOLING By cooling fans controlled by MCU for outdoor

ENVIRONMENTAL

Operating Temperature -20-50C,

Wide temp. -30-50C (option)
Operating Humidity 10%-85%
Storage Temperature -30 - 60C
Storage Humidity 5%-90%
WARRANTY

One year, limited for 2nd year
