3840 x 2160 Outdoor LCD Kiosk 86 2000 nits Sunlight Readable Digital Signage
3840 x 2160 Outdoor LCD Kiosk 86 2000 nits Sunlight Readable Digital Signage
3840 x 2160 Outdoor LCD Kiosk 86 2000 nits Sunlight Readable Digital Signage
3840 x 2160 Outdoor LCD Kiosk 86 2000 nits Sunlight Readable Digital Signage
Specifications
Brand Name :
Maxbright
Model Number :
T860EDCL
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
1
Payment Terms :
T/T, Western Union
Supply Ability :
50 sets / Month
Delivery Time :
5~6 weeks
Packaging Details :
Pearl cotton shock absorption + wood case packaging
Price :
Negotiable
Panel Type :
a-Si Active Matrix TFT-LCD
Resolution :
3840 x 2160
Brightness :
1500-2000 nits
Power Consumption :
800W~1000W
Operating Temperature :
-20 - 45C
Operating Voltage :
100 - 240 VAC 50-60Hz
Description

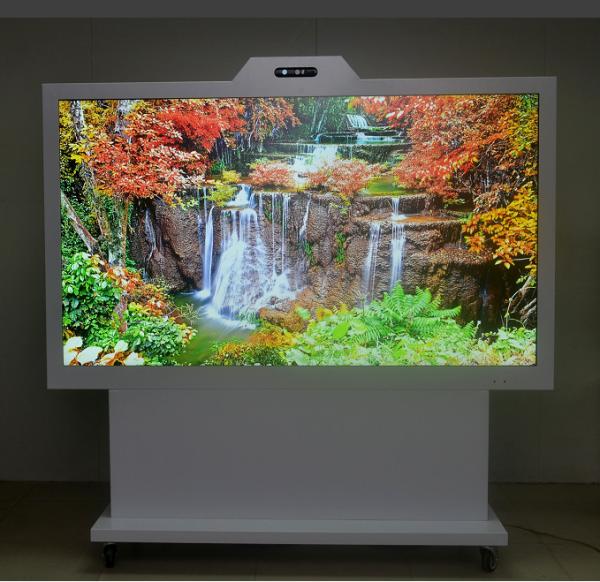

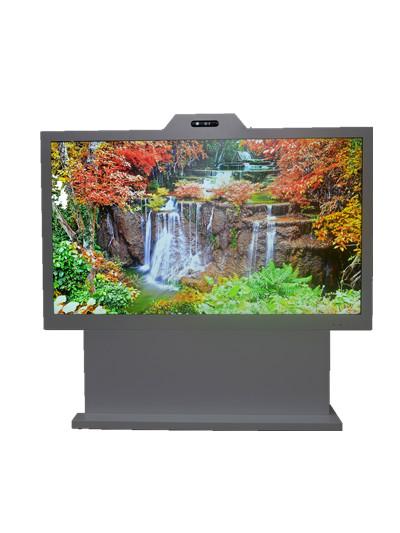

Maxbright 86" High Bright Outdoor Digital Signage Display Model: T860EDCL

LED Array Backlight Enhanced

Model: T860EDCL

FEATURES:

Active Matrix TFT-LCD Display

High Brightness 1500-2000 nits,

3840 x 2160 Max. QWUXGA Resolution

Aspect Ratio: 16:9 in portrait mode enabled

Wide Viewing Angles 178 deg (L/R/U/D)

Wide operating temp range, -20 ～ 45o C

Media player box or mini-PC for content playback

Waterproof IP54 enclosure

Industrial Air-Conditioner for harsh cooling/heating

PANEL TYPE a-Si active matrix TFT-LCD IPS
ACTIVE AREA 1895.04 x 1065.96 mm
NATIVE RESOLUTION 3840 x 2160 RGB
PIXEL PITCH 0.4935(H) x 0.4935(V) mm
COLOR 16.7M/1.07B 71% [CIE1931]
INTERFACE VGA, HDMI x 2, DP option
. VIEWING ANGLE 89/89/89/89
BRIGHTNESS 1500-2000 cd/m2, LED Backlight enhanced
CONTRAST RATIO 1200:1, Dynamic contrast ratio: 8000:1
DIMMING Auto-dimming by Light Sensor
DIMMING RANGE 2000 nits to 300 nits 100% to 15%
RESPONSE TIME 8msec typical
REMOTE CONTROL Support for Full OSD Features
MEDIA PLAYER Media Player (RK3399) or i3/i5 CPU mini-PC
(option)
OPERATING VOLTAGE AC 100 ~ 240V 60/50Hz
POWER CONSUMPTION 800W at 1500 nits, 1000W at 2000 nits
STANDBY MODE 5 Watt or less
ACCESSORIES AC Power Cord, Remote Controller
HDMI, VGA cable x 1
OPERATING Mini PC: Intel Core i5-6200U 2.5GHz, 2GB DDR
(option) 500GB HDD, 5 x USB ports, 1 x RJ45, WiFi

DIMENSION

2195(H) x 1365(W) x 230(D) mm, monitor part only

Basement or wall mount bracket option
WEIGHT 250 Kg approx. without air-con
Waterproof IP54 Enclosure w/ AR Vandal glass
COOLING Cooling fans controlled by MCU
2 x 600W industrial air-con for harsh outdoor
ENVIRONMENTAL

Operating Temperature -20-45oC,

Wide temp. -30-50oC (option)
Operating Humidity 10%-85%
Storage Temperature -30-60oC
Storage Humidity 5%-90%
WARRANTY One Year
3840 x 2160 Outdoor LCD Kiosk 86
